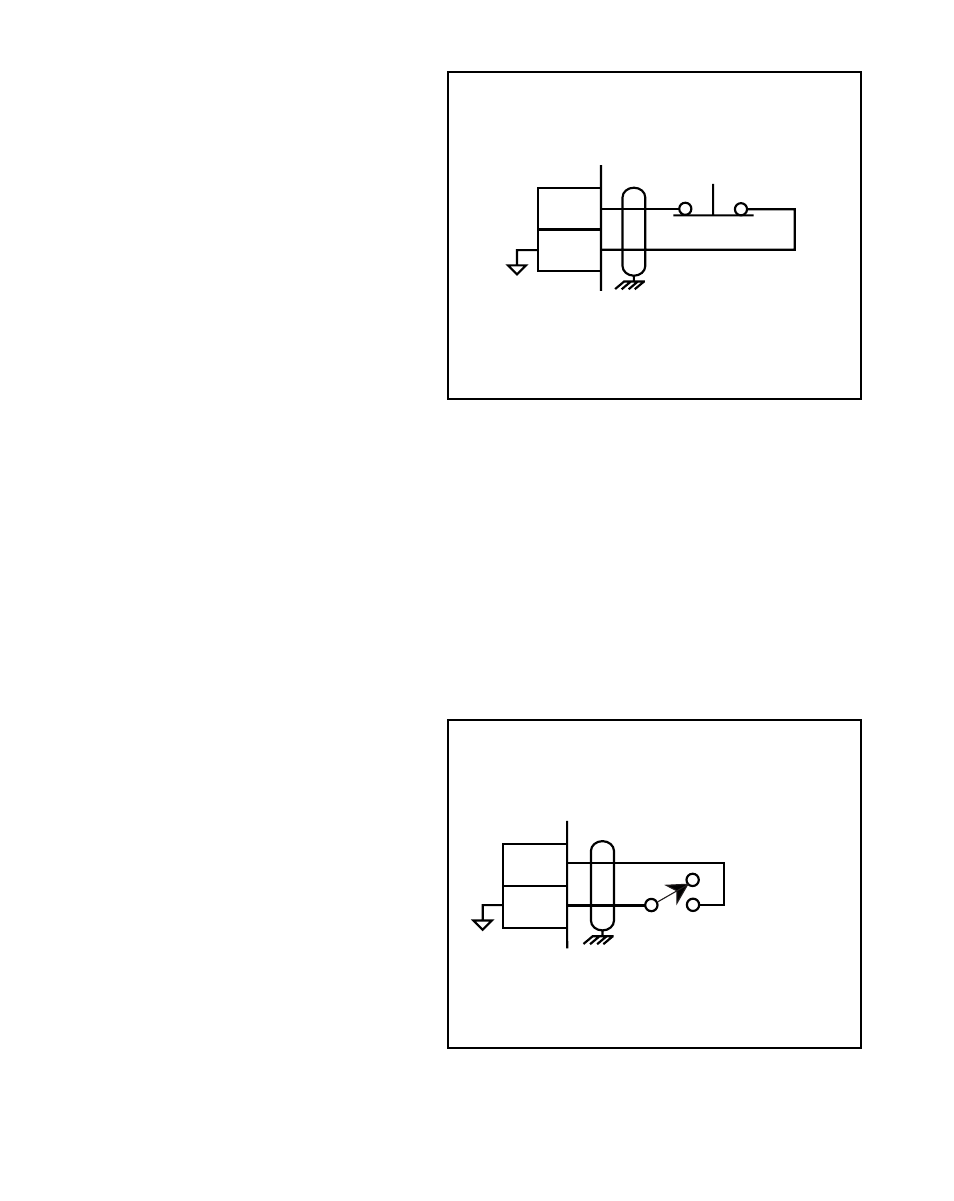

Figure 2-11 F–Stop
F-Stop (J5 pins 10, 11)
F-Stop is a momentary input. When
it is open, the ML–Trim stops
immediately (zero RPM) and ignores
the specified deceleration rate. As a
momentary input, F-Stop is internally
latched and does not need to be
maintained by an operator device.
Master or Follower
(J5 pins 12, 14)
This input determines the ML–Trim's
mode of operation and resulting
scaling formula that the control
algorithm uses. The ML–Trim is in
Master mode when the circuit is
open, and Follower mode if the circuit
is shorted to the common.
Figure 2-12 Master / Follower
MASTER
12
14
J5
FOLLOWER
F-STOP
10
11
J5
