MP-58 SERIAL COMMUNICATIONS ERROR

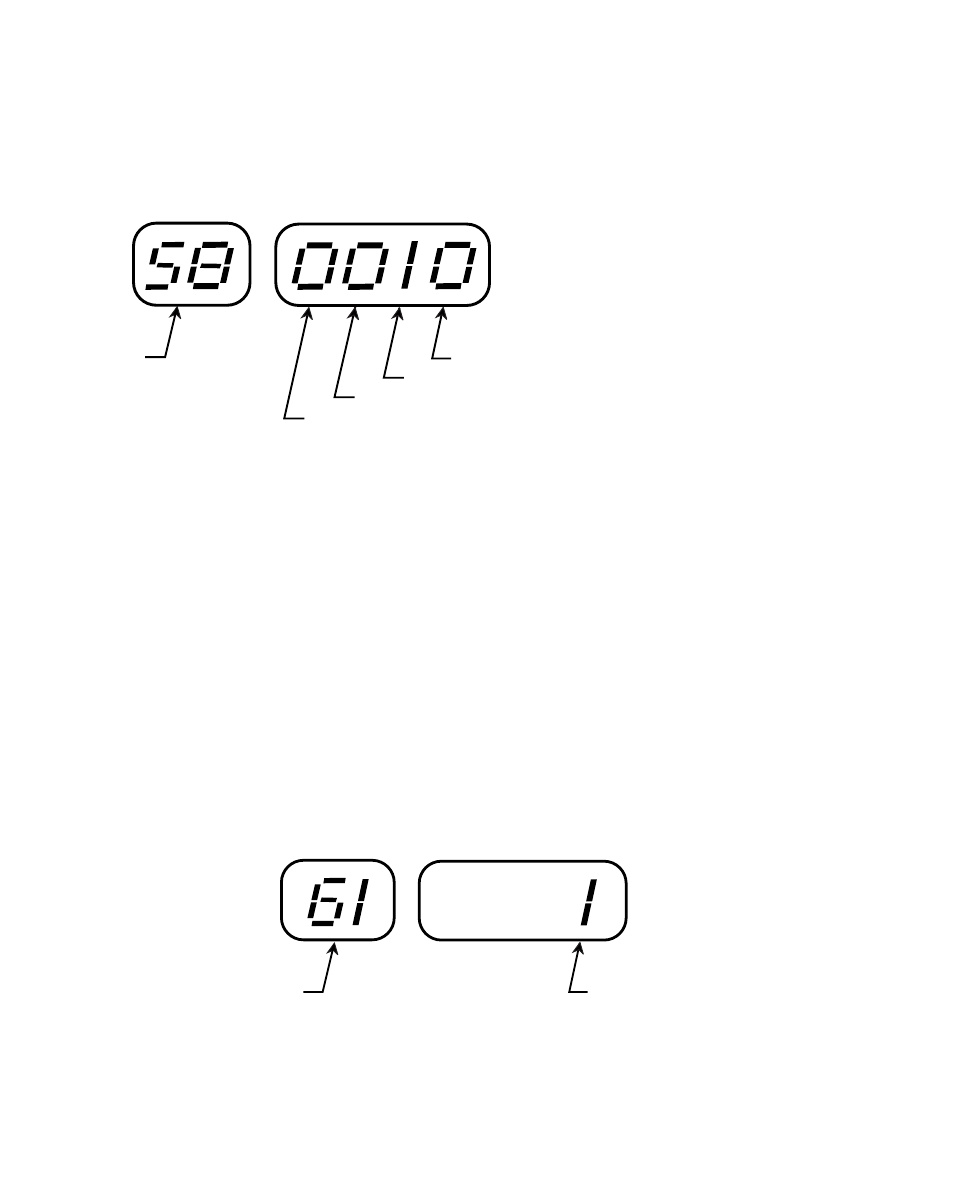

Serial Communications Error (MP-58) identifies errors in the last transmitted message that was
sent to the ML–Trim by the host computer. The mode that displays a number “1” indicates the
error. In the example below, “Invalid Parameter Code” is the error.

Structure Error (Parity,Framing,No ETX, No STX)

Invalid Parameter Code

Invalid Parameter Data or Out of Data Min-Max Range

Control Mask Error

Code

MP-59 FREQUENCY OVER FLOW COUNTER

The Frequency Over Flow Counter (MP-59) is a counter that increments each time the frequency
input to the ML–Trim causes an overflow. To reset the counter to “0”, press the Clear key.

CP-61

DIRECT ENABLE

In the Direct mode of operation, the Speed Command output from the ML–Trim that is connected
to the motor drive can be set directly. Direct mode is an open-loop mode of operation. Use
Direct Enable (CP-61) to either enable or disable the Direct mode.

Enter "1" to enable the Direct Mode.
Enter “0” to disable the Direct Mode.

Enabled

Code
