1)

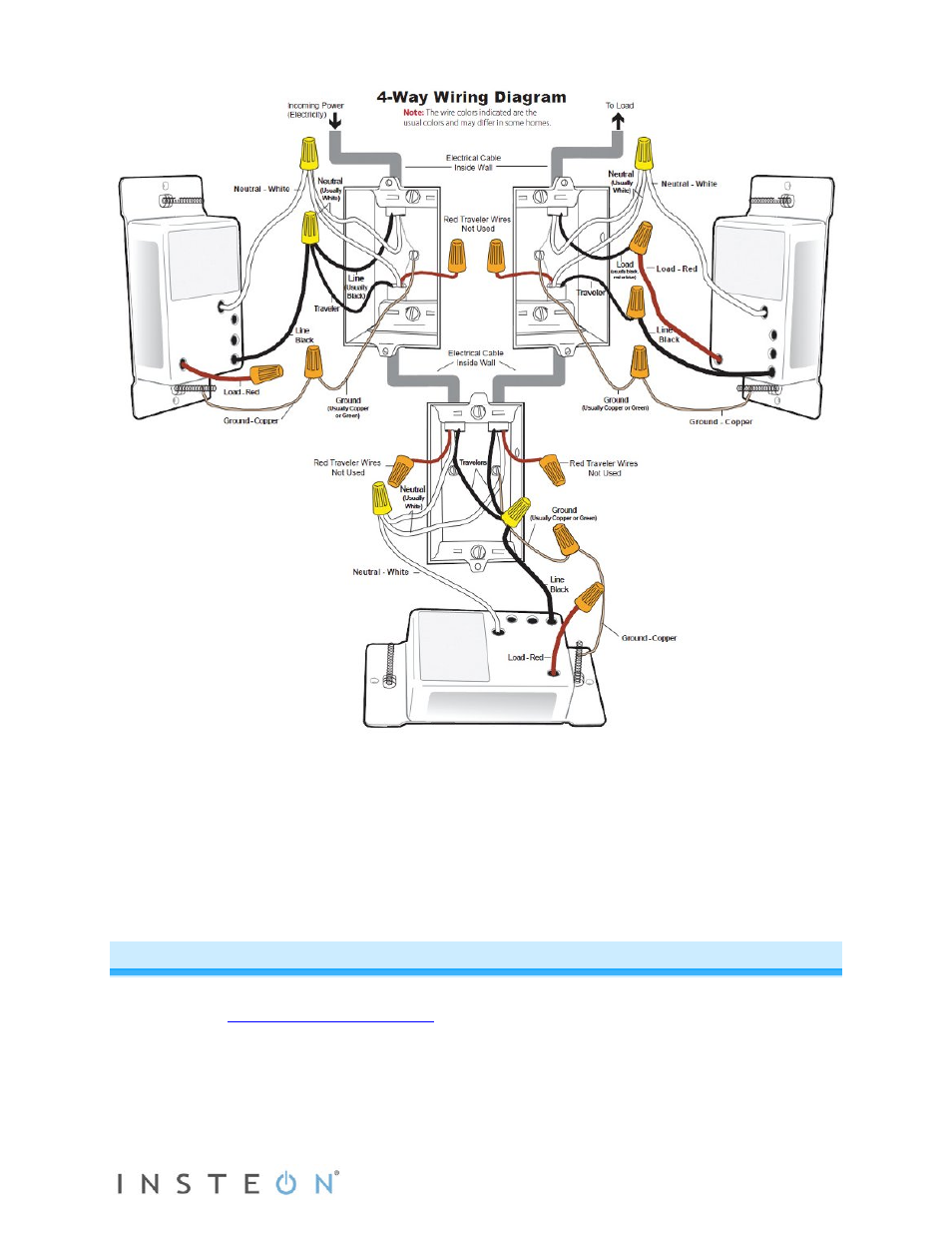

Connect ToggleLinc Secondary’s black Line wire to the junction box’s black Traveler wire with a
wire nut.
2) Cap the two unused Traveler wires (usually red) with wire nuts.
3) Cap ToggleLinc Secondary’s red Load wire with a wire nut.
4) Connect ToggleLinc Primary’s white Neutral wire to the box’s Neutral wires with a wire nut (see
Fig. 3).
5) Connect ToggleLinc Primary’s bare copper Ground wire to the junction box’s Ground wires with a
wire nut (see Fig. 4).
INSTEON Networks: Split Single-Phase vs. 3-Phase Installation
For the best INSTEON network performance, make sure you have installed at least two Access Points
(#2443) or other
dual-band INSTEON products . INSTEON has only been officially tested in a split single-
phase residential environment, but has been known to work in many 3-phase systems with three dual-
band products used (one on each phase). However, due to the potential complexity of its troubleshooting,
the INSTEON Support Line is unable to help with INSTEON installations in 3-phase environments.
