seven particle sizes (fixed) or all seven particle sizes (scrolling). Refer to
on page 3 for the particle sizes monitored.
This instrument can be used as an individual unit (stand alone) or in a
network of units connected through AQUARIUS software or customer
supplied software. For information about the AQUARIUS data acquisition
software, refer to the AQUARIUS documentation.

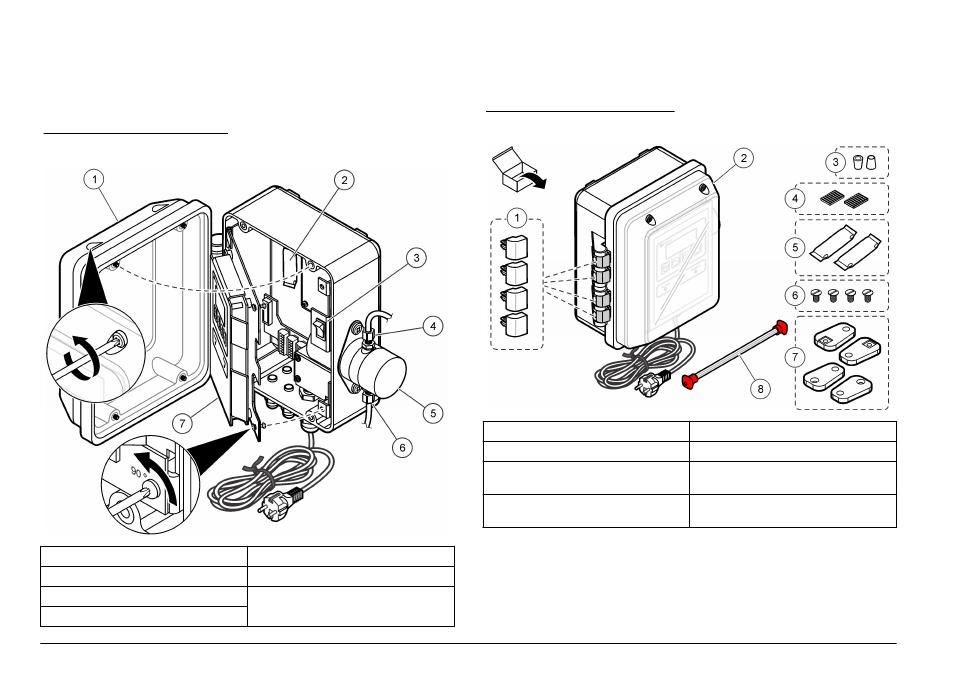

Figure 1 Instrument overview
1 Enclosure door
5 Sensor assembly
2 Desiccant pack
6 Sample line fitting
3 Power switch
7 Electrical access panel and user
interface
4 Drain line fitting
Product components
Make sure that all components have been received. Refer to
any items are missing or damaged, contact the manufacturer or a sales
representative immediately.
Figure 2 Product components
1 Hinge retainers, replacements (4x)
5 Desiccant packs (2x)
2 WPC-21 or WPC-22
6 Wall mounting brackets screws (4x)
3 6 mm ferrule adapters for 0.25-in.
compression fitting (2x)
7 Wall mounting brackets (4x)
4 Velcro adhesive strips for desiccant
packs (2x)
8 Cleaning brush kit with two cleaning
brushes
