Frequency Edit
(User-Programmed Groups Only)
This menu only occurs for user-programmable groups or when
copying to a user-programable group. The Frequency Edit
screen allows the user to set the group transmit frequency and
receive channel frequencies of a user-programmable group.
•

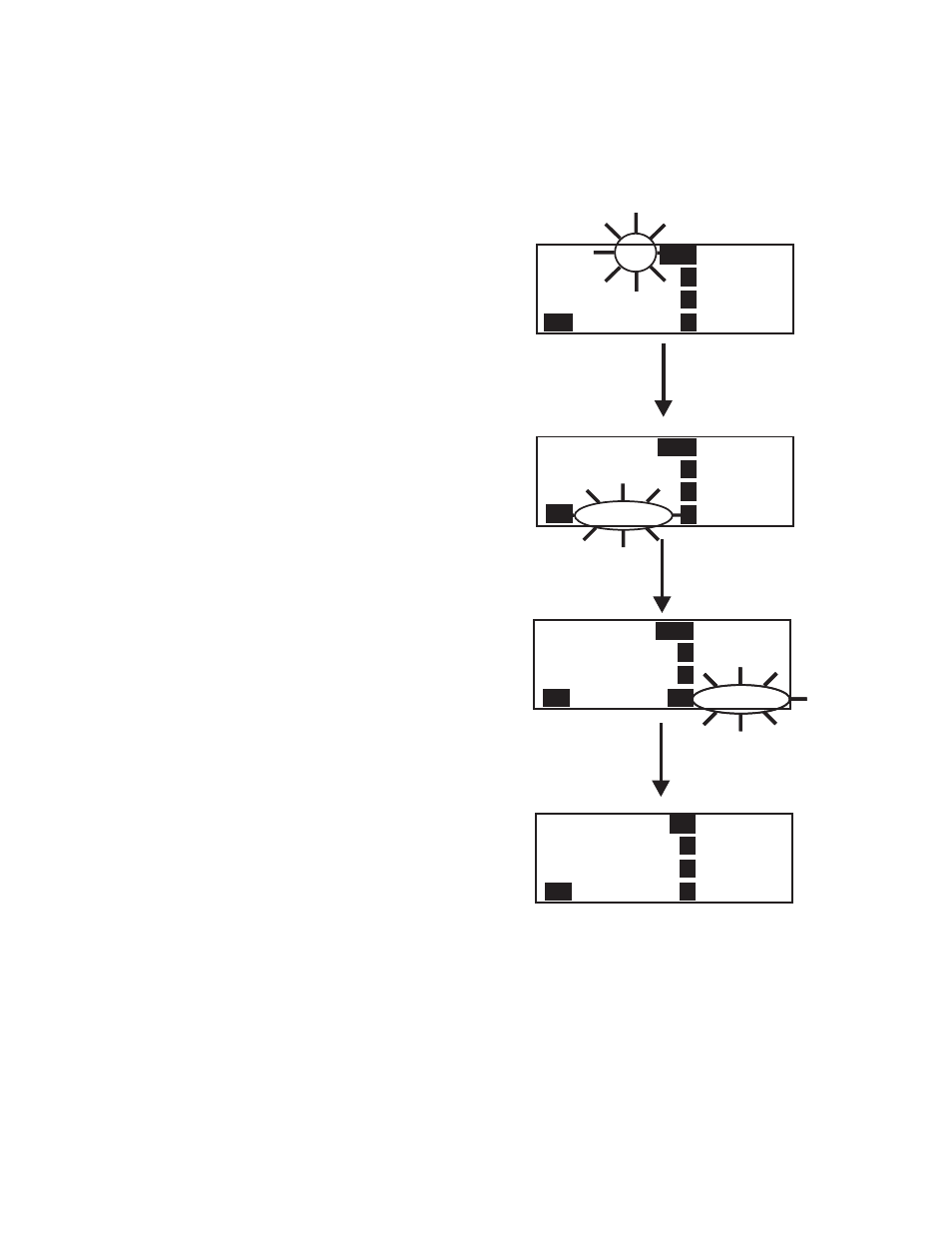

Press [MENU] three times to go to the frequency select
screen from the operating screen. Press [SET] to start the
group number flashing. This screen allows the user to set
the group and frequencies of user-programmed groups
only.
•
Press the [UP] / [DOWN] arrows to change the group
number. The frequencies listed will reflect what is cur-
rently in that group. Dashes will be displayed in any slots
that are not defined yet. Pressing [SET] will select the
group and start the selecting of frequencies within that
group. The Tx frequency will start flashing.
•
Pressing the [UP] / [DOWN] arrows will change the fre-
quency of “Tx” in 25kHz steps. Pressing [SET] will ac-
cept the change and start you editing Ch1. If you had not
hit the arrow keys when the frequency was flashing, but
instead press [SET], you would have skipped to the next
frequency to edit.
•
After editing the transmit and the receive channel fre-
quencies, pressing [SET] will save that last frequency and
send you over to the beginning of the group/frequency
select screen with nothing flashing. NOTE: Once the end
of the displayed channel list is reached, the last displayed
channel location will scroll to allow the user to edit the re-
maining channels.
•
After action has occurred in the frequency edit screen hit-
ting [MENU] will take you one menu back to the
group/frequency select screen so that the user may see
what frequencies the base receivers are now on. If no ac-
tion had occurred, then pressing [MENU] will take you to
the operating screen. NOTE: Besides a group change, any
editing that occurs within this screen to frequencies
DOES NOT take effect until the user exits the screen via
setting the last channel or pressing [MENU].
