Group / Channel Select
The Group/Channel select screen allows the user to change the
group and select from a pre-determined number of channels on
each receiver.
•

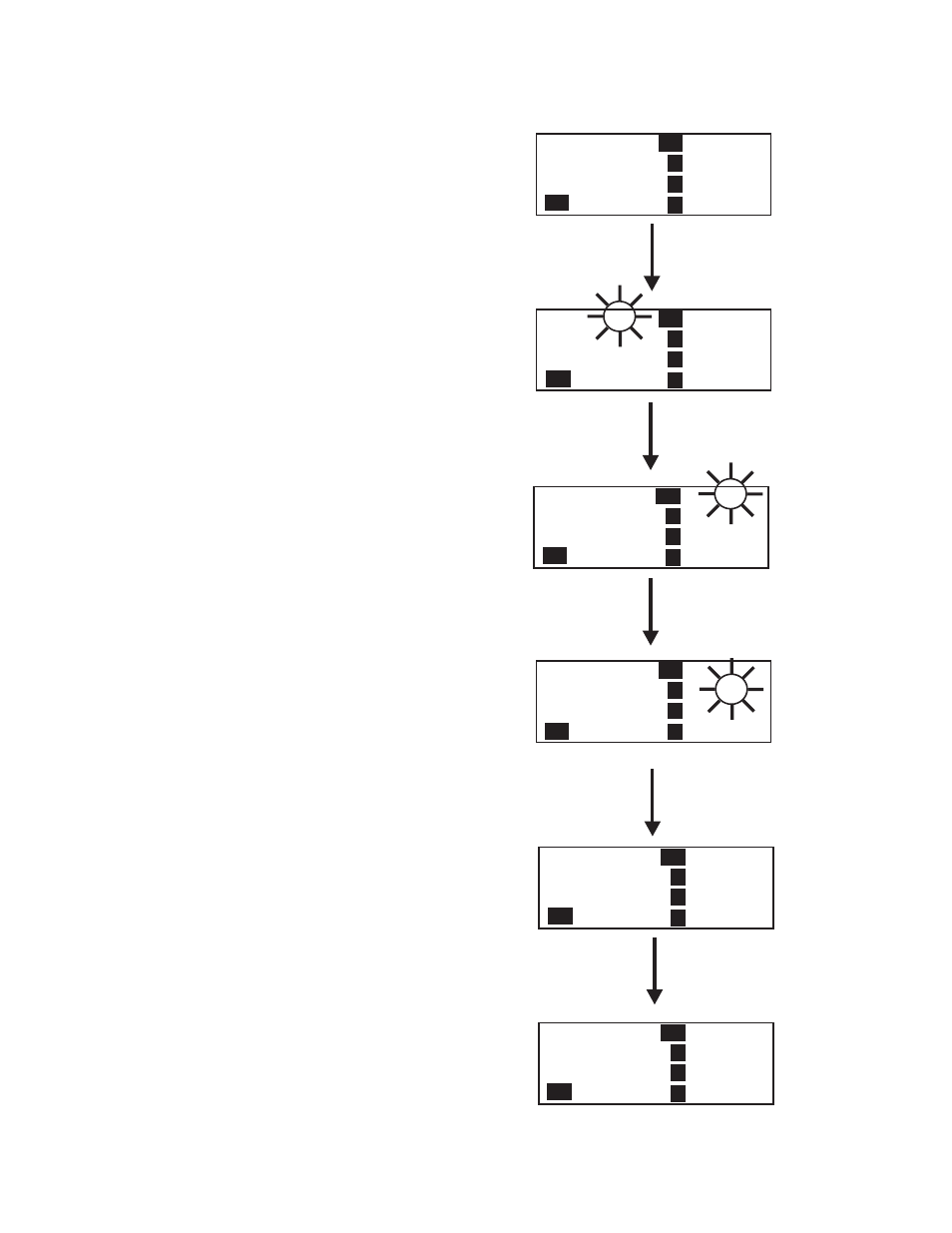

Hit [MENU] once to enter the Group / Channel Select
Screen from the operating screen.
•
Hit [SET] to enter group edit. The group number will start
flashing. If [SET] is hit again without hitting the arrows,
the display will go to receive 01 channel edit. NOTE: A
channel that does not have a frequency set for it will have
a dash to the right of it on the group/channel select screen.
•
The [UP] / [DOWN] arrows will change the group num-
ber. Hit [SET] again to set the group that was flashing.
Now the group number will stop flashing and R1’s chan-
nel number will start to flash.
•
The [UP] / [DOWN] arrows will change the receive chan-
nel number. Hit [SET] to set the channel that was se-
lected. Now the second channel number will start to flash.
If [SET] is hit again without hitting the arrows, the dis-
play will go to the next channel number.
•
After the last receive channel is decided upon, hitting
[SET] will set that channel in the unit and start you over
at the beginning of the group/channel select screen with
nothing flashing.
•
Hitting [MENU] will take you to the group/frequency se-
lect screen. NOTE: Hitting [MENU] after activity has oc-
curred within the screen will return to the group/channel
select screen with nothing flashing. Any change that had
been done before the last [SET] was pressed will be
aborted.
•
Setting two channels the same is not allowed. If a channel
is already set on the screen, the user no longer has that
channel as an option to set into one of the other receivers.
