Group / Frequency Select
The Group/Frequency select screen allows a user to set the
group and select from a pre-determined number of frequencies
on each receiver. Each frequency displayed on the right half of
the screen corresponds to a channel number in the
Group/Channel Screen.
•

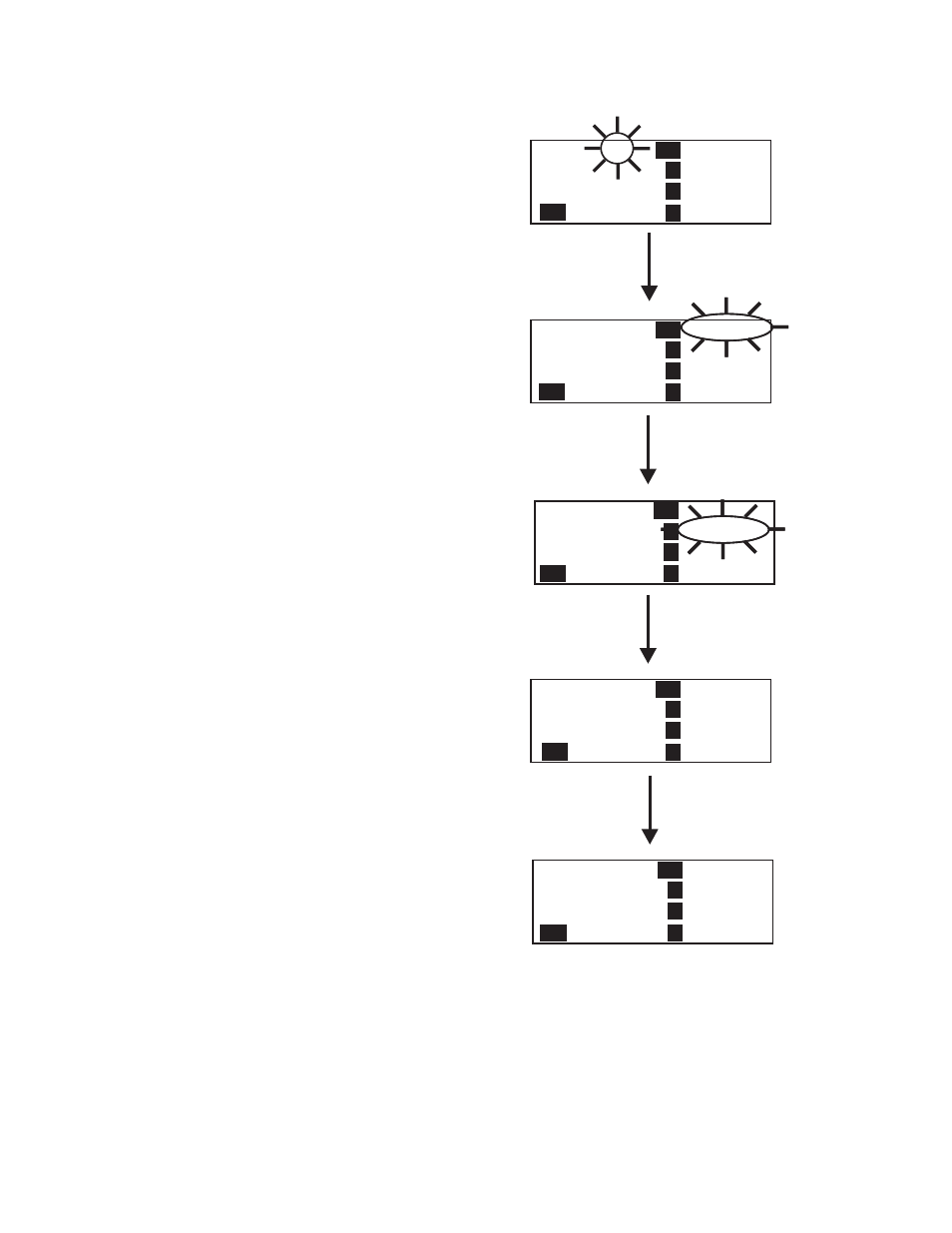

Press [MENU] twice to go to the Group / Frequency Se-
lect screen from the operating screen. Hit [SET] to start
the group number flashing.
•
Press the [UP] / [DOWN] arrows to change the group
number. The frequencies listed will reflect what is cur-
rently in that group. Hitting [SET] will select the group
and start the selecting of predetermined frequencies
within that group. The R1 frequency will start flashing.
NOTE: The group number sets the transmit frequencies
of factory defined groups and these are not editable. In
user-programmed groups these are editable from the fre-
quency edit screen.
•
Pressing the [UP] / [DOWN] arrows will change the fre-
quency of “R1” to the pre-defined frequencies available.
Hitting [SET] will accept the change and start you editing
the next channel. If you had not hit the arrow keys when
the frequency was flashing, but instead hit [SET], you
would have skipped to the next frequency to edit.
•
After the last receive frequency is decided upon, hitting
[SET] will save that last frequency and start you over at
the beginning of the group/frequency select screen with
nothing flashing.
•
Pressing [MENU] will take you to the operating screen if
this is a factory-defined group. If within a user pro-
grammed group, you will be taken to the frequency edit
screen. NOTE: Hitting [MENU] after activity has oc-
curred within the screen will return to the group/fre-
quency edit screen with nothing flashing. Any change that
had been done before the last [SET] was pressed will be
aborted.
