1

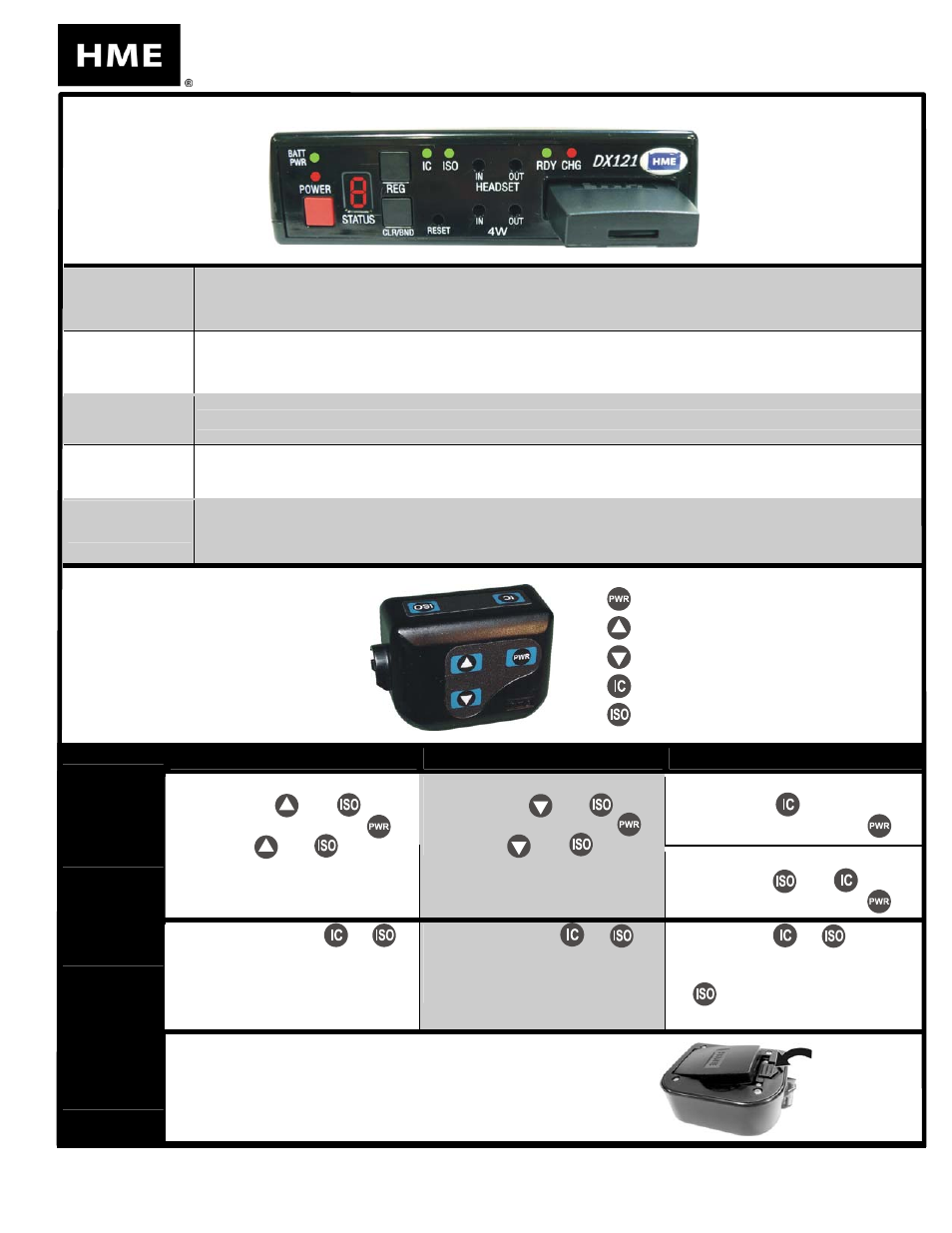

QUICK REFERENCE GUIDE

Base Station






Beltpac COMMUNICATOR

®







Power

Connect power ― See page 9

Press POWER button to turn base station on/off ― Red light above button indicates power on

Green BATT PWR light indicates base station is operating on battery power

Communicator

Registration

Insert charged battery in Communicator

Press REG button on the base station to enter registration mode ― See page 13

Hold down ISO button while you press and release POWER button on the Communicator

IC/ISO

Indicators

Green lights indicate IC or ISO communication is being received

Headset/4-Wire

Audio Level

Adjust INbound/OUTbound headset and 4-Wire equipment audio levels using small screwdriver

Battery Charger

Place battery in port for charging

Red CHG light indicates battery is charging

Green RDY light indicates fully-charged battery is ready

Hands Free (HF)

Push-To-Talk (PTT)

ISO Lockout

Power OFF

Press/hold
while you press/release

Mode

Setup

Power OFF

Press/hold and
while you press/release

Release and

Power OFF

Press/hold and
while you press/release

Release and

To reset ISO ―

press/hold and
while you press/release

Operation

Press and release or
quickly to latch into mode to
talk to other Communicators

Press/release again to unlatch
and listen

Press and hold or
while talking to other
Communicators

Release to listen

Use either or to talk
to other Communicators in
HF or PTT

will not operate relay

Change

Battery

If you hear “Change battery” ―

Remove beltpac from pouch

Remove battery from beltpac

Place battery in battery-charger port for recharging

Install fully charged battery in beltpac

Power on/off

Volume up

Volume down

Intercom

Isolate

DX121

For detailed information on DX121 features, and for setup and operating instructions, continue reading the following pages.

Quick Reference Guide

Battery

release

latch
