Cashco DA6 User Manual
Page 16
Item
No.
Description
7
Diaphragm Lock Nut
8
Upper Diaphragm Pressure Plate
9
Diaphragm
9.1
Diaphragm (Material #1)
9.2
Diaphragm (Material #2)
9.9
Diaphragm TFE Cover
10
Lower Diaphragm Pusher Plate
11
Flange
Bolts
12 *
Flange Bolting Nuts
14
Stem
Seal
14.2
Middle Stem Seal
14.4
Lower Pusher Plate Gasket
15
Cage
Seal
18
Cage Cap Screws
19
Cage
20
Valve
Plug
21
Seat
Ring
23
Body
Item No.
Description
24
Lower Guide Bushing
25
Cover
Dome
26
Tap
Plug
27
Dynamic Side Seal
27.1
TFE Cap Seal
27.2 O-ring
Energizer/Seal
27.3
U-cup with Metal Energizer
27.4 O-ring
Seal
27.5
Piston Ring Seal
27.6
Piston Ring Energizer
28
Seat
Disc
29
Seat Disc Washer
30
Seat Disc Nut
32
Internal Sensing Plug (External Sensing Only)
33
Internal Sensing Drilled Plug (Internal
Sensing
Only)
37
Diaphragm
Gasket
99
Name
Plate
* Not required on 2" CS & SST Body Material.
See Figures 2 – 6 for alternate plug constructions.

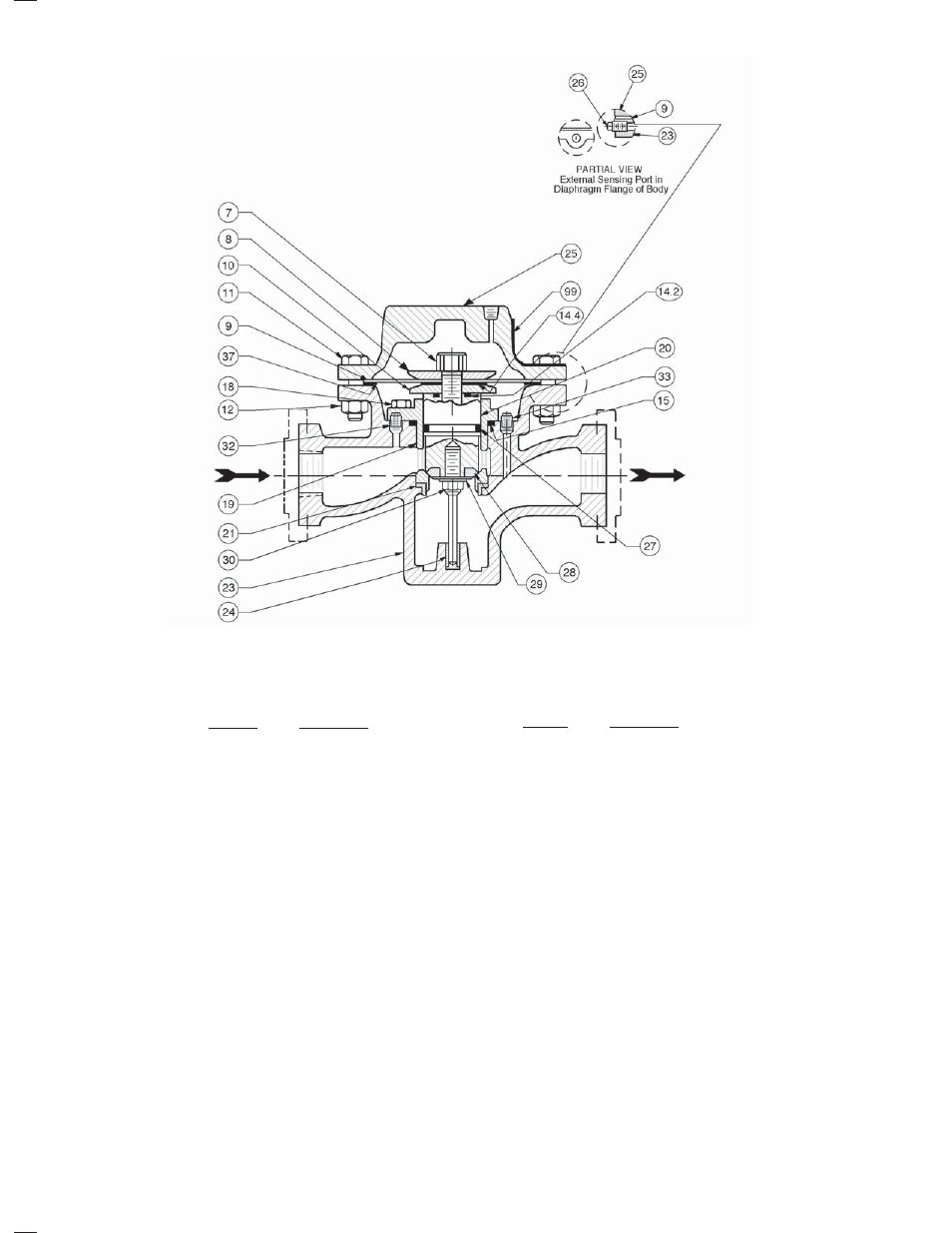

Model DA6
Metal Diaphragm
FTC – Standard Flow Direction
