INSTALLATION ST100 Series Flow Meter
22 Fluid Components International LLC
Data Logging
The ST100 SD Card Logging features can be accessed via the ST100 Configurator Reference the ST100 Configuration supplemental manual for
installation instructions, FCI document number 06EN003403. The Configuration program is loaded on a PC or Laptop and can be connected via
the USB or Ethernet. The USB is the primary mode of communication with the ST100.

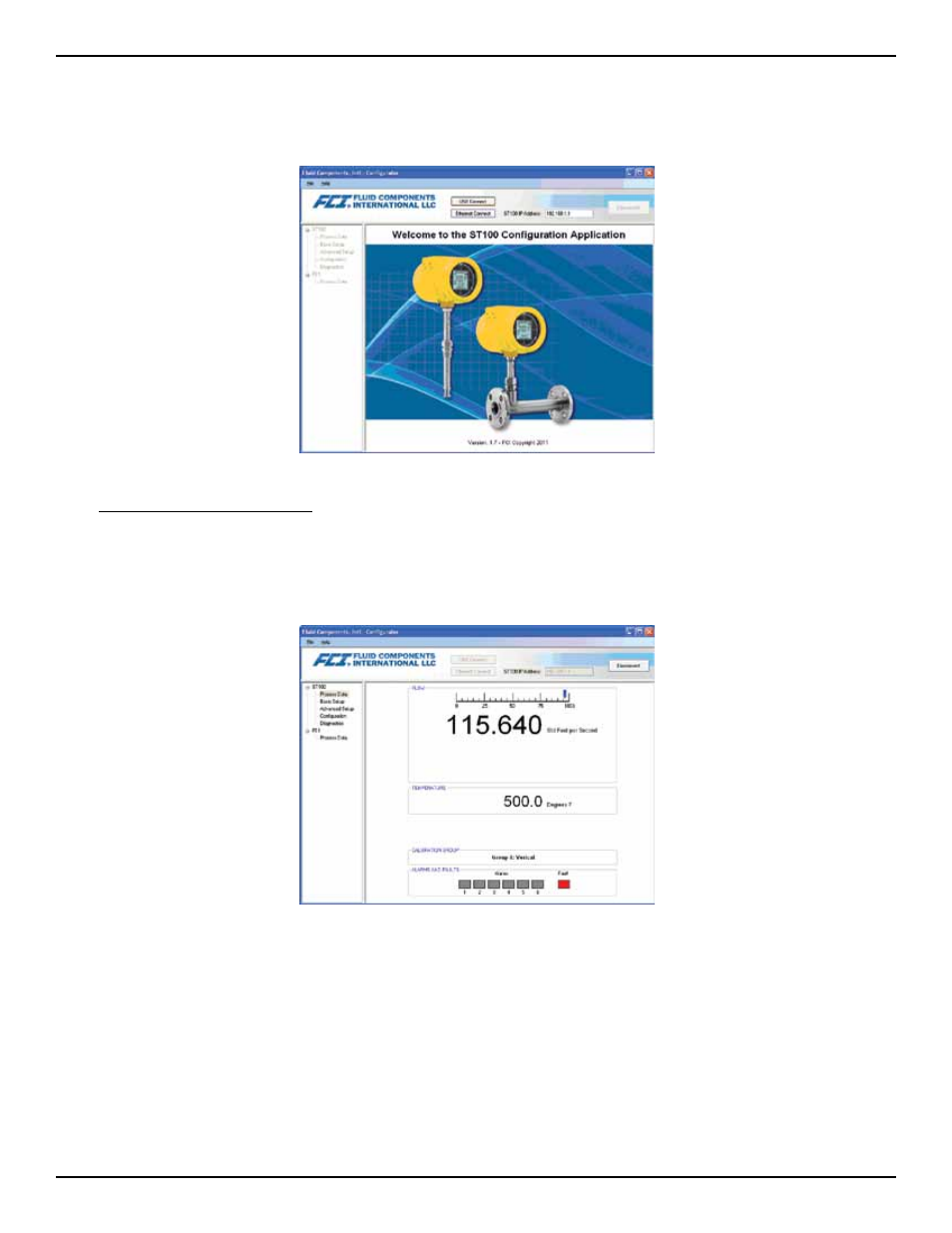

Welcome Screen
To access the ST100 Logging Function:
1. Connect a USB cable between the computer with the Configuration Application installed and the USB connection on the interface board.
2. Select the ST100 Configurator icon to open the application. The application will open to the welcome screen as shown above.
3. Select the USB Connect button at the top of the screen. The Configuration application will open to the Process Data screen as shown
below.
Process Data Screen
