5.2.4 Remote installation
Signal converter in
19" insert

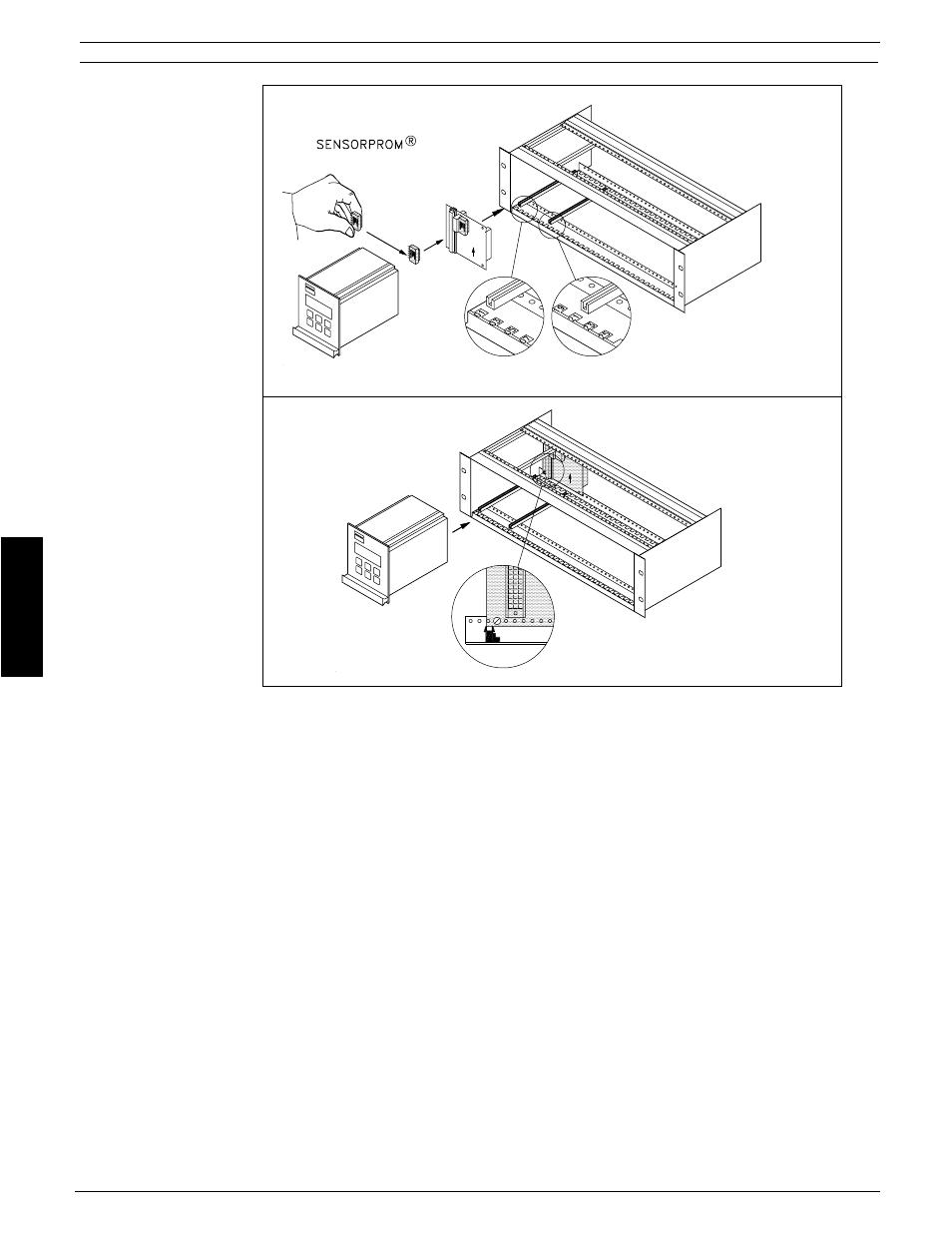

1. Fit the SENSORPROM ® unit on the connection board supplied with the transmitter. The
SENSORPROM ® unit is supplied with the sensor.
2. Mount the guide rails in the rack system as shown. Distance between guide rails is 21 TE.
Guide rails are supplied with the rack system and not with the transmitter.
3. Mount the connection board as shown. The mounting screw must be installed in line with the
guide rails.
4. Connect the cables as shown under "Electrical connection".
5. Plug the transmitter into the rack system.
