Fluid Components International CMF Series Manual Installation of Electronics User Manual
Page 10

In
st
allation of signal con.
FlexCOR
™
Model CMF Series
40
Fluid Components Intl
Document 06EN003327 Rev. -
5.2.9 Compact Ex-d
version

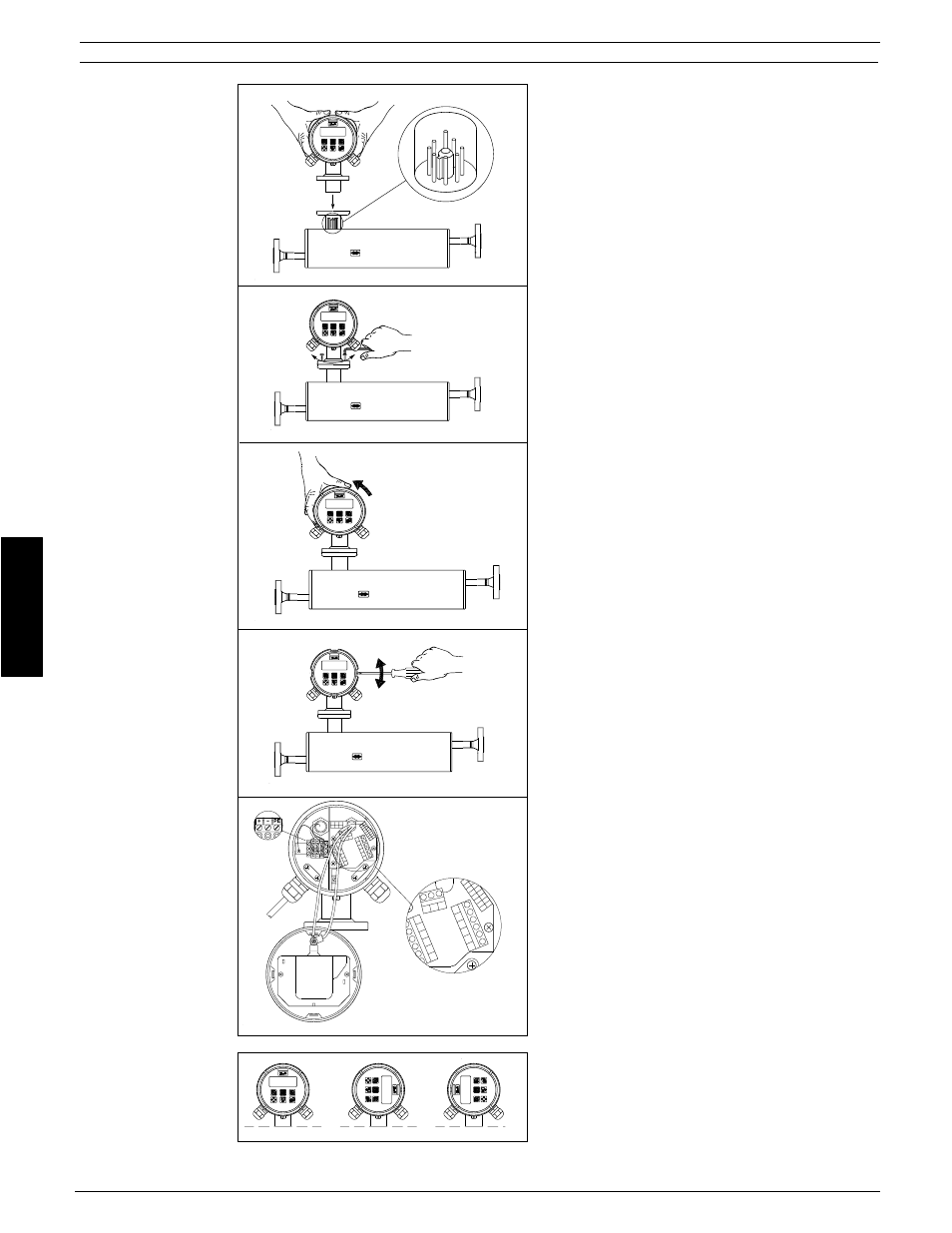

For compact (integral) installation mount the
transmitter on top of the sensor interface.
Make sure that it is correctly oriented (note the
little tag).
After placement, it can be turned 0-360°.
The display/keypad can be rotated in steps of
90°. Please note the little tag on the back of the
display frame which must correspond to the
nut on the converter body when the display/
keypad is replaced. This is essential for
obtaining optimum sealing.
The transmitter is secured with 4 allen screws
(allen key M4).
The terminals for inputs, outputs and power
supply can be accessed by removing the front
cover, turning it counter-clockwise.
The display can be lifted off (i.e. with the tip of a
screwdriver or similar) and the terminals are
accessible.
The intrinsic input and output cables must be
secured by cable straps, so that they will
remain in position should the terminal screws
work loose.
