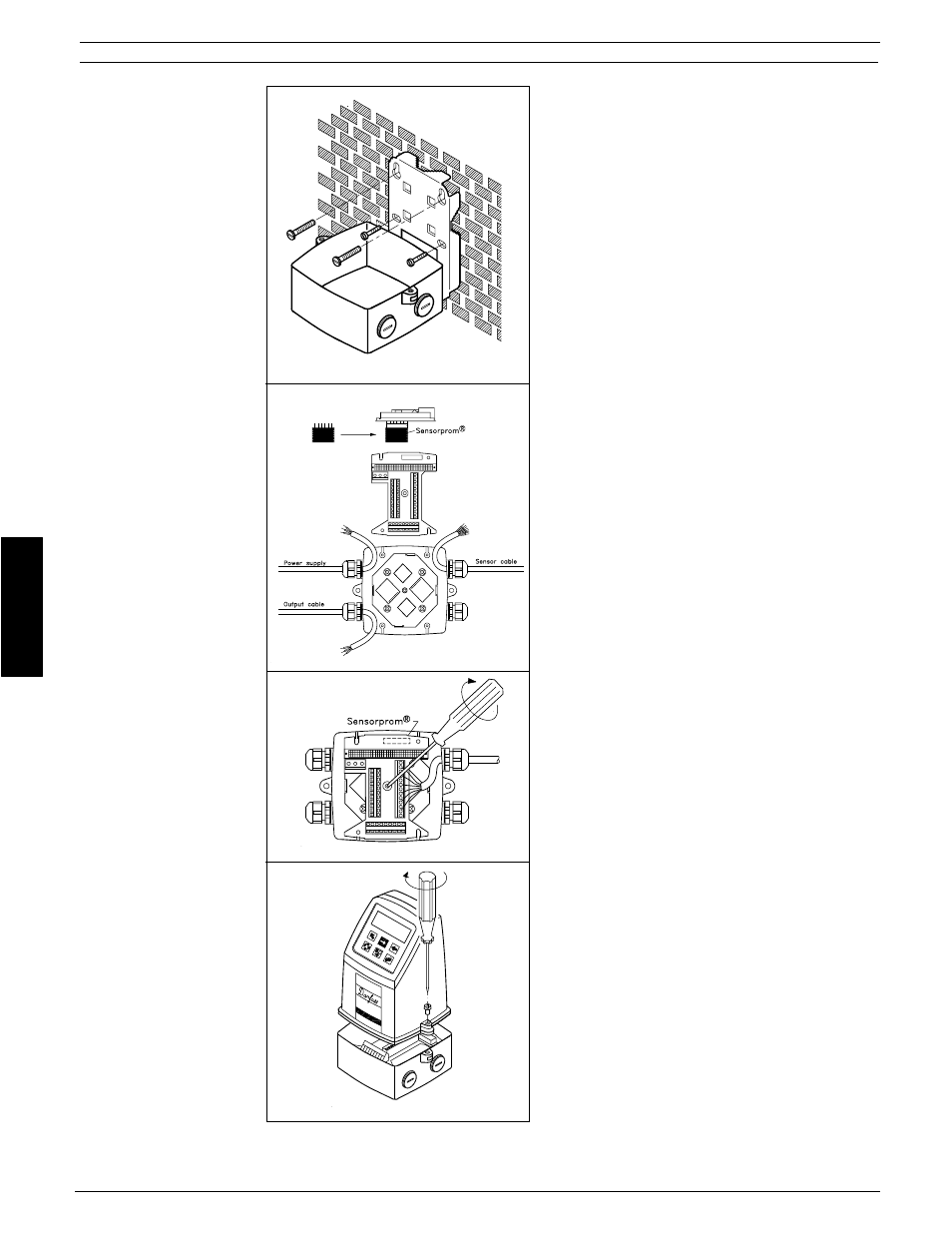

5.2.2 Remote installation
Wall mounting
Compact (Integral)
IP 67 version
Take the SENSORPROM ® unit from the sensor.
Mount the SENSORPROM ® unit in the wall
mounting unit as shown.
The labelon the SENSORPROM
® unit must
face the wall bracket.
Mount the connection plate in the terminal box.
Tighten the earth ground screw in the center of
the connection box properly.
Fit the sensor, supply and output cables re-
spectively and tighten the cable glands to obtain
optimum sealing. See the wiring diagram for
the "Electrical connections".
Mount the wall bracket on a wall, pipe or in the
back of a panel.
Mount the transmitter on the terminal box.
