Fluid Components International CMF Series Manual Installation of Electronics User Manual
Page 13

In
st
allation of signal con.
Fluid Components Intl
Document 06EN003327 Rev. -
43
FlexCOR
™
Model CMF Series

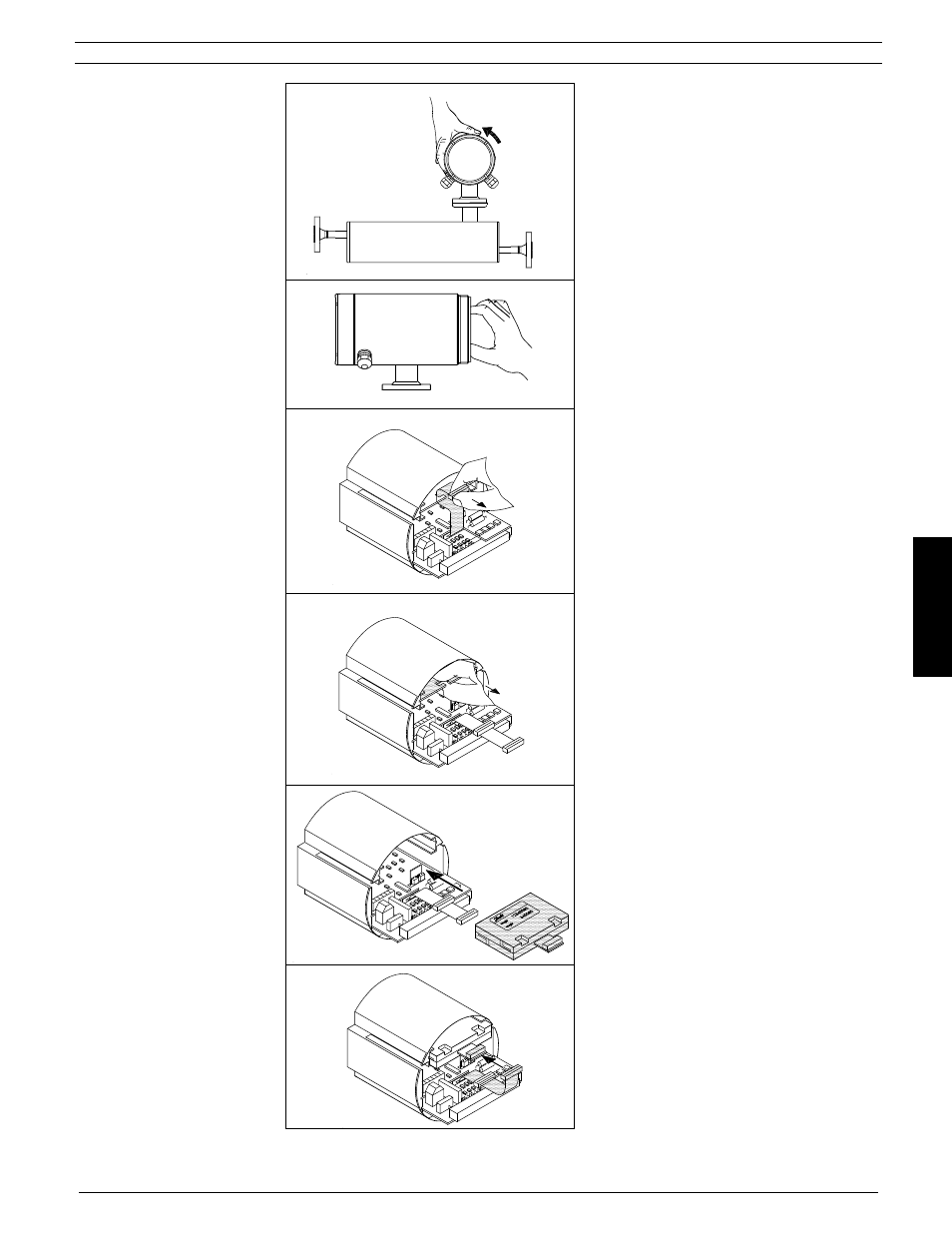

5.2.12 Compact (Integral)
Ex-d version
Installation of
add-on module
Remove the rear cover, by loosening the
safety tap allen screw (M3) and turn the rear
cover counter-clockwise.
Remove the electronics using the holes
provided.
The add-on module is fitted at the bottom of
the converter insert as shown. The label text
on the add-on module should face up as
shown.
The add-on module is fitted with the connector
facing out of the enclosure.
The add-on module can be pressed into
position.
Connect the flat cable connector to the
module and power up. The add-on module is
automatically initialized. The menu's are now
visable on the display/keypad of the
Transmitter.
Remove the flat cable from the plate.
Remove the plate from the module bay.
