OPERATION
FLT
®
Series FlexSwitch
TM
20
Fluid Components International LLC
Alarm Set Point Adjustments
Numerical Adjustment Versus Adjustment by Observation
An alarm set point is established using either numerical adjustment or adjustment by observation. The adjustment by observation requires
the customer to establish normal process operation and adjust the alarm set point relative to this condition. The numerical approach requires
measuring normal and alarm process conditions with a voltmeter and setting up the instrument in the calibrate mode based on these values.
The adjustment by observation requires less time to establish the alarm set point. The numerical adjustment requires control of the process
as well as additional time to establish the alarm set point. Use the adjustment procedure that is the most appropriate for the application
requirement.

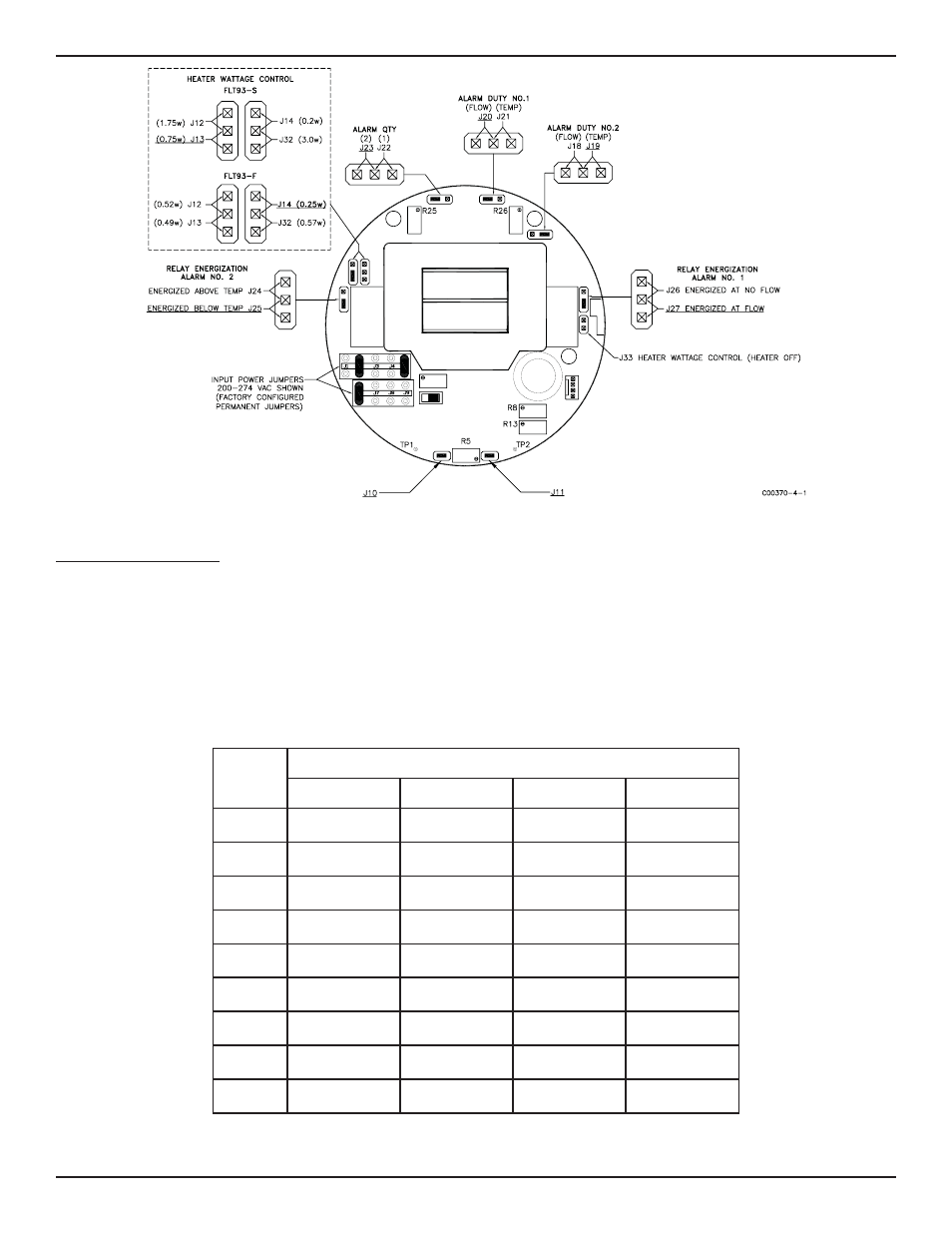

Figure 3-1 5298 Control Circuit Jumper Locations
Jumper
Power Select - Factory Installed
100-130 VAC
200-260VAC
18-26VAC
21-30VDC
J1
IN
OUT
OUT
OUT
J2
OUT
IN
OUT
OUT
J3
IN
OUT
OUT
OUT
J4
OUT
OUT
IN
OUT
J5
IN
IN
OUT
OUT
J6
OUT
IN
IN
IN
J7
OUT
OUT
OUT
IN
J8
OUT
OUT
OUT
IN
J9
OUT
OUT
IN
OUT
Table 3-2 Input Power
