33
Description of LED status
LED Status Description
Green lit Mains power operation
flashing Battery operation
Red lit Battery is charged
flashing Battery is being charged
9.4. Installation of safety block into the actuator drive
4 fastening screws ST2.2 x 6.5

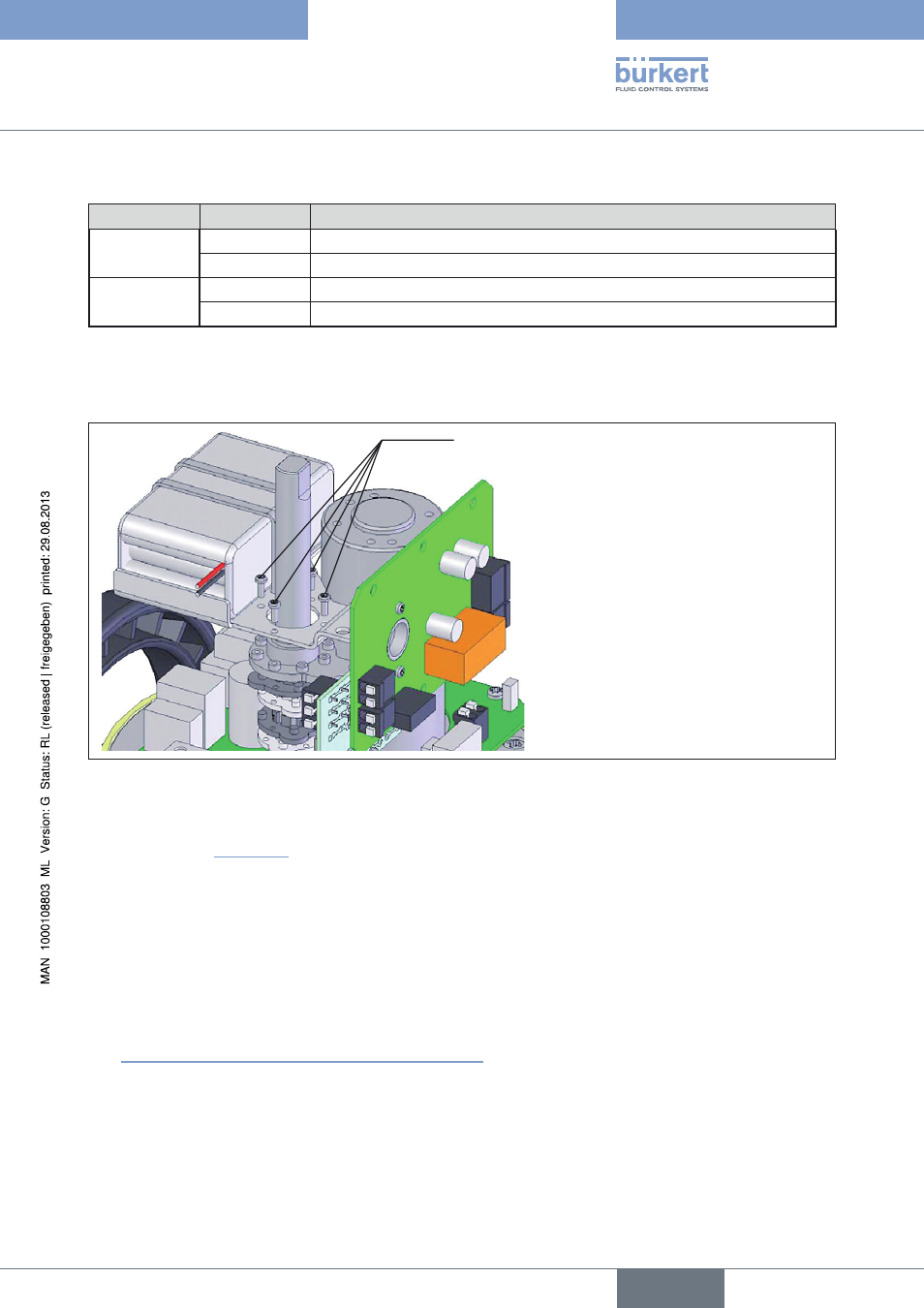

Figure 27: Illustration: installation of safety block into the actuator drive
→
Fasten the safety block of the emergency current model onto the actuator drive with 4
(see illustration “Figure 27”).
→
Connect the battery in this order:
1. F+ (wire color red)
2. E- (wire color black)
→
Connect the power supply in this order:
1. terminal 18
2. terminal 17
(see “Figure 26: Illustration: Electronic printed circuit board”).
Option: Rotary actuators with
emergency current model
English
Type 3004
