Installation
8.3.1. The position of the plug-in jumpers
ON
(turned on)
OFF
(turned off)

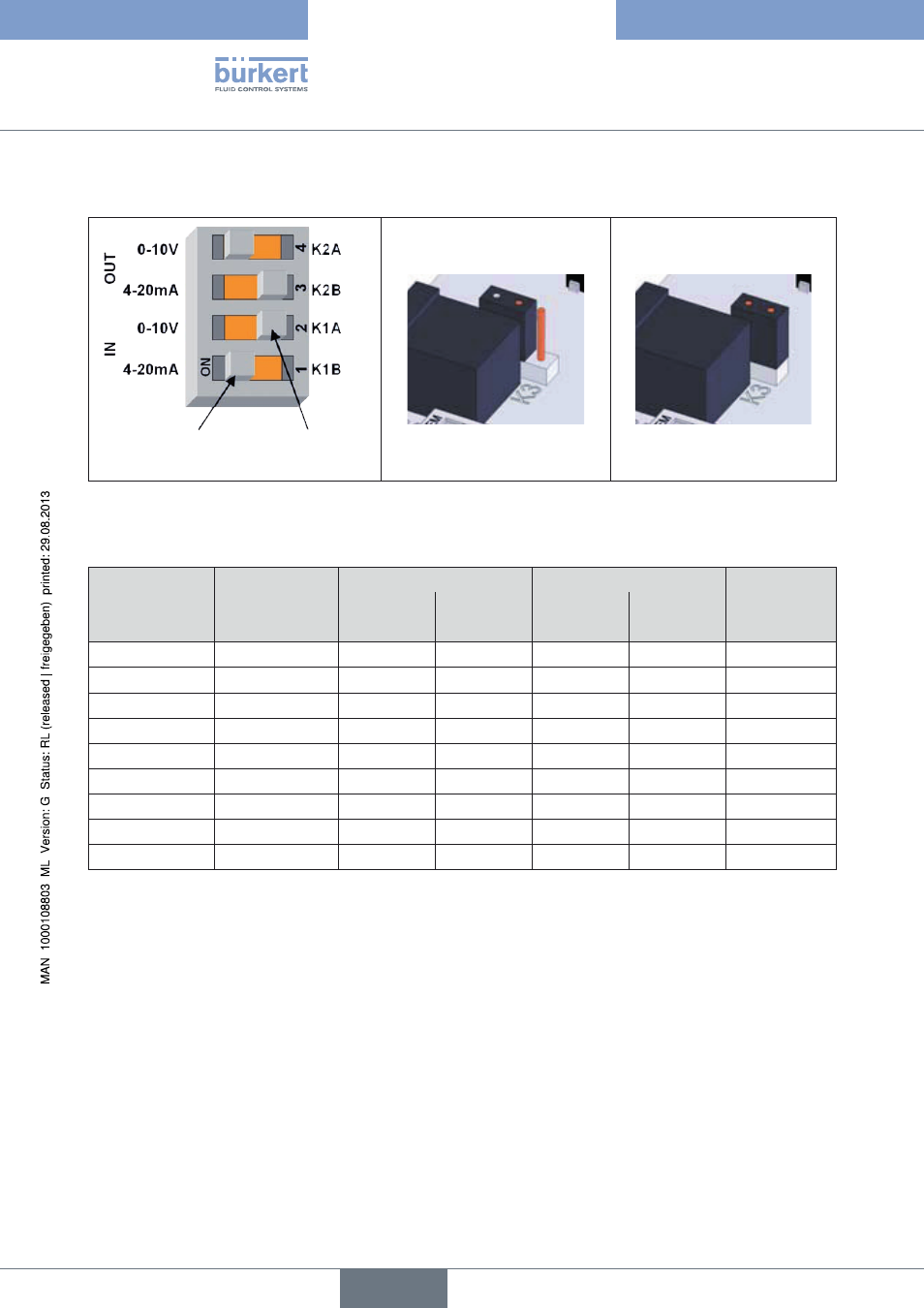

Figure 21: Plug-in jumper K1 / K2 Figure 22: Plug-in jumper K3
OFF
Figure 23: Plug-in jumper K3
ON
Transducer Feedback
Plug-in jumper K1 Plug-in jumper K2
Plug-in
jumper
K3
A B A B
0 – 10 V 0 – 10 V ON OFF ON OFF OFF
0 – 10 V 0 – 20 mA ON OFF OFF ON OFF
0 – 10 V 4 – 20 mA ON OFF OFF ON ON
0 – 20 mA 0 – 10 V OFF ON ON OFF OFF
0 – 20 mA 0 – 20 mA OFF ON OFF ON OFF
0 – 20 mA 4 – 20 mA OFF ON OFF ON ON
4 – 20 mA 0 – 10 V OFF ON ON OFF OFF
4 – 20 mA 0 – 20 mA OFF ON OFF ON OFF
4 – 20 mA 4 – 20 mA OFF ON OFF ON ON
