DIGITAL INPUT
The functions referring to the inputs could be divided in three groups:
1) only assignable functions to the input 1 (page 12)
2) Functions that act directly on the inputs independently from the select input
(page 13)
3) only assignable functions to the input 1 and only to the input 2 which they
interact between them (some examples to page 14)
Remember that the activation of any functions of batch automatically disable the other.
The list of such functions is suitable in the tab at page 36.

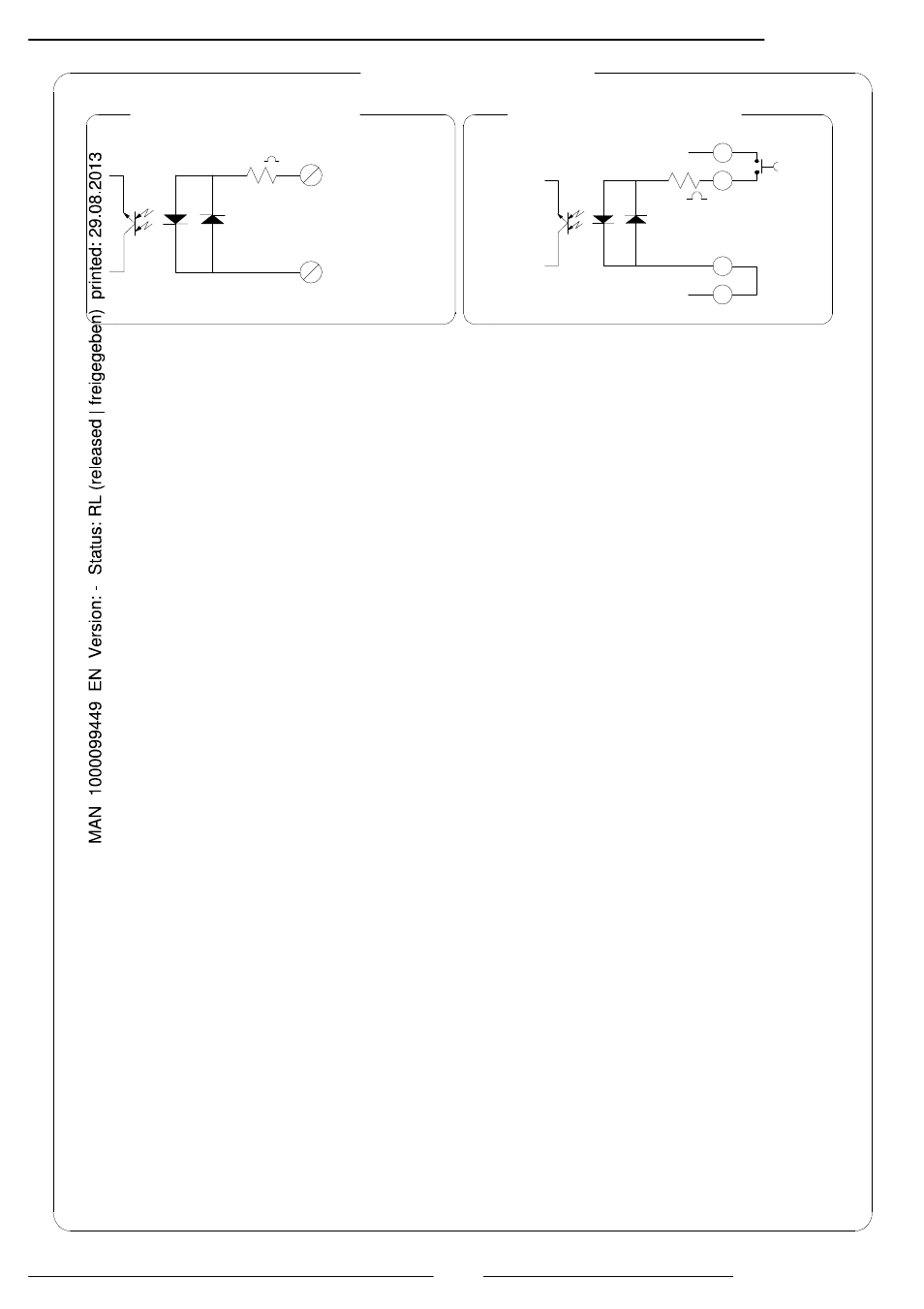

3/40 Vdc (ON)
0/1,5 Vdc (OFF)
5 (+)
6 (-)
10 K
5
6
20 0
15
+24
10 K
External power supply Internal power supply
