462 A. Installation of plastic slide rail and support rail
A. Installation of plastic slide rail and support rail (continued)

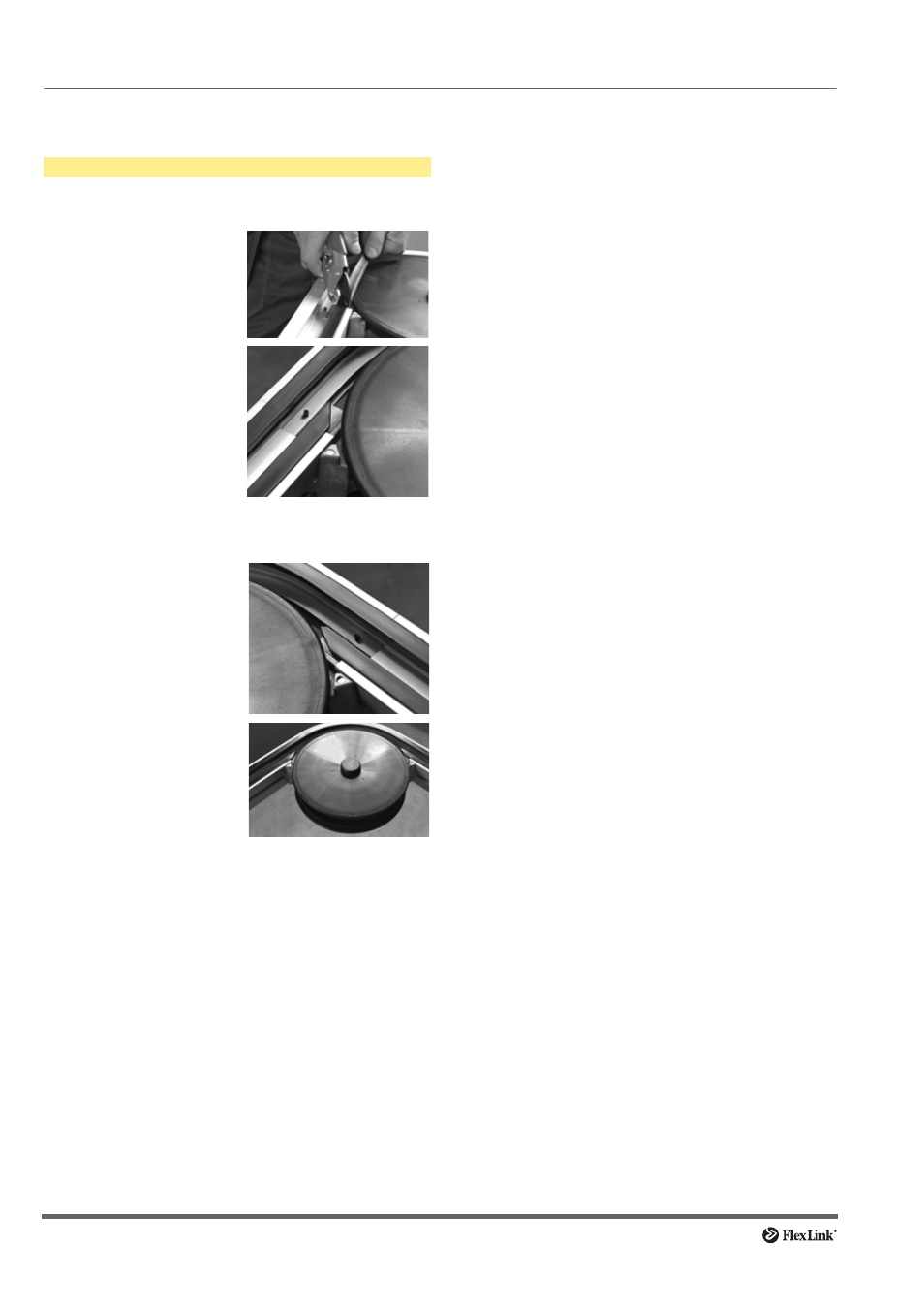

Mounting slide rail in wheel bends
Tools required
Before wheel bend
After wheel bend
Horizontal plain bends
In plain bends with small radii, the slide rail for the inner
bend should be cut so that it is only 10 mm wide in the
bend. This is to prevent an uneven slide rail surface.
Stretch the rail while mounting.
Important
Plain bends with small radii should be avoided, if at all
possible. Always consult FlexLink Systems for design
assistance.
Cutting pliers
1 Cut the slide rail end at a
45° angle.
2 The slide rail must be
longer than the conveyor
beam itself, and there
should be a 10 mm dis-
tance between the slide
rail and the wheel of the
bend. Make sure that the
end of the slide rail is not
bent up or down.
3 Cut the slide rail at a 45°
angle with a short back
cut. The slide rail must be
longer than the conveyor
beam itself, and there
should be a 2 mm dis-
tance between the slide
rail and the wheel of the
bend.
4 In the outer bend, make
sure that the slide rail is
properly connected to the
conveyor beam profile.
