Specification
Unit/Dept. Document type Date
APD/Research & Development Assembly Instruction 2006-05-19
Issued by Document number Page Approved by
Fredrik Johansson 3928587-03 4/12 FJn
3928587_03.DOC
Archived
2. Placing components
General information:
• The cable between Guide units is a factory-made cable with fixed length (2 or 3 m)
connectors in both ends which affects the placing of components.
• Maximum 5 Junction boxes can be connected in each direction from the Control
box.
• Maximum 10 or 6 (depending on cable length) Guide units can be connected in
each direction from Control box/Junction box.
Instructions:

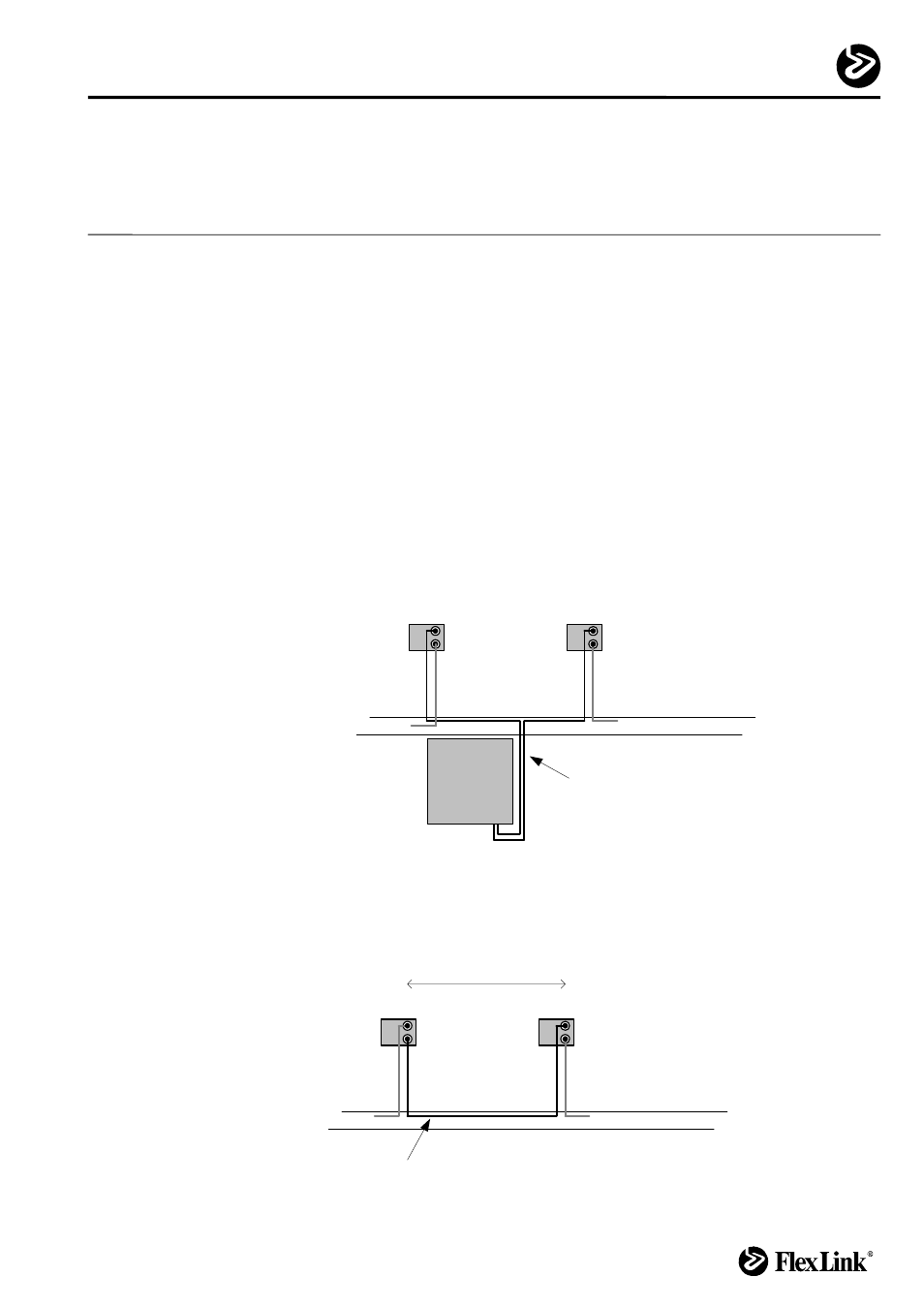

• Adjust the distance between the Control box or Junction box and the Guide unit so
that the Guide unit cable reaches between the Control box or Junction box and the
Guide unit.
Wiring way
Guide unit
Guide unit cable
Box
• Place the Guide units so that the cable reaches between the Guide units.
Distance
Wiring way
Guide unit
Guide unit cable
