Dynasonics Fusion Water Flow Meter - Manual (Page 12)

12
POWER CONNECTIONS
Power for the FUSION flow
meter is obtained from a DC
(direct current) power source.
The power source should be
capable of supplying between
12 and 30 Vdc at a minimum of
0.1 Amps or 100 milliamps.
With the power from the DC
power source disabled or
disconnected, connect the
positive supply wire and ground
to the appropriate field wiring

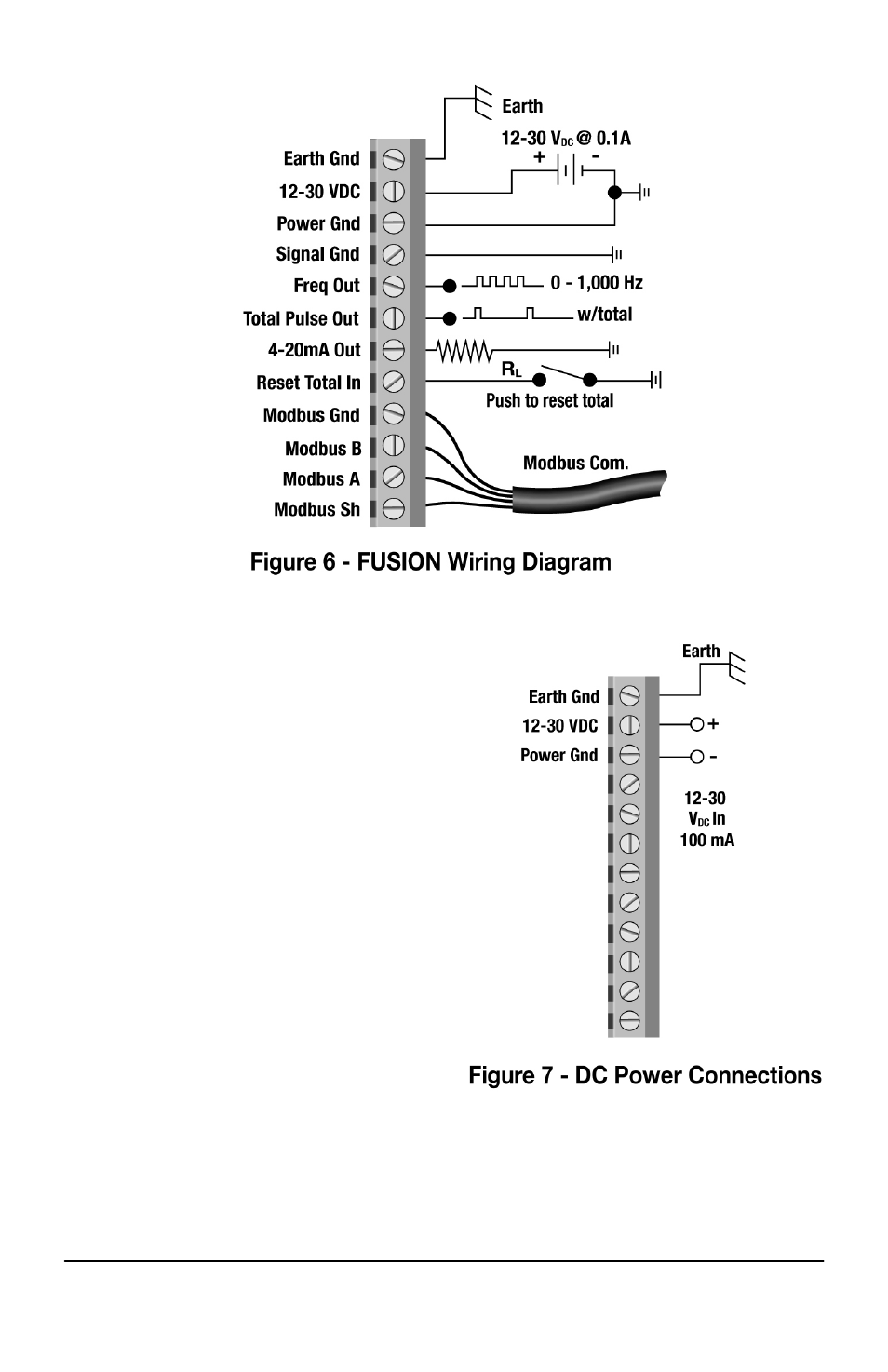

terminals in the flow meter. See
Figure 7. A wiring diagram
decal is located adjacent to the
field wiring terminals within the
FUSION enclosure.
If the flow meter is only to be utilized as a flow rate indicator or
totalizer, no further wiring will be required. Skip to the Flow
Meter Configuration section of this manual (see page 19).
