Run
Compressor
for 5 Minutes
Is Superheat
in Range?
Yes No
Is Subcooling
in Range?
Yes No
Is Superheat
Low or High?
High Low
Turn TXV
Adjustment
Stem Clockwise
Is Subcooling
Low or High?
High Low
Add Refrigerant
Is Subcooling
Low or High?
High Low
Recheck Superheat
and Complete
Start-up and
Warranty Form
Add Refrigerant
Remove
Refrigerant
Turn TXV
Adjustment Stem
Counter Clockwise
Water Testing
š–”ƒ ––Š”‡‡™ƒ–‡”•ƒ’Ž‡•ˆ”‘‡ƒ Š™ƒ–‡”Ž‘‘’ǡ‘–ƒ–‡”Ȁ‘†‡•‡”ǡŠ‹ŽŽ‡†ƒ–‡”Ȁ˜ƒ’‘”ƒ–‘”ǡƒ†‘—” ‡ƒ–‡”
—•‹‰–Š‡„‘––Ž‡•’”‘˜‹†‡†ȋ͗„ƒ‰•Ǣ‡ƒ Š„ƒ‰ ‘–ƒ‹‹‰͗„‘––Ž‡•Ȍˆ”‘–Š‡ƒ–‡”ƒ’Ž‡–‡•–‹–Ǥ‘Ƥ”–Šƒ––Š‡
•ƒ’Ž‡„‘––Ž‡•ƒ”‡ƤŽŽ‡†–‘–Š‡–‘’Ž‡ƒ˜‹‰‘ƒ‹”‹–Š‡„‘––Ž‡•ǤŽŽ–Š‡•ƒ’Ž‡„‘––Ž‡•—•–Šƒ˜‡Žƒ„‡Ž• ‘’Ž‡–‡†’‡”
‹•–”— –‹‘•‹ Ž—†‡†™‹–Š–Š‡„‘––Ž‡•ǤŠ‹’–Š‡„‘––Ž‡•‹‡†‹ƒ–‡Ž›–‘–Š‡ƒ’’”‘’”‹ƒ–‡™ƒ–‡”–‡•–‹‰Žƒ„‘”ƒ–‘”›
per the instructions.
ƒ—–‹‘ǣ‘‘– Šƒ”‰‡–‘ƒ Š‹‡˜‡•—„ ‘‘Ž‹‰–‡’‡”ƒ–—”‡™Š‡–Š‡‡š’ƒ•‹‘˜ƒŽ˜‡‹•‘˜‡”ˆ‡‡†‹‰Ǥˆ–Š‡‡š’ƒ•‹‘
˜ƒŽ˜‡‹•‘˜‡”ˆ‡‡†‹‰ǡ”‡ƒ†‹‰•ƒ›•–‹ŽŽ‹†‹ ƒ–‡Ž‘™•—„ ‘‘Ž‹‰ƒ†Ž‘™•—’‡”Š‡ƒ–ǡ„—– ‹” —‹–ƒ›‘–„‡—†‡” Šƒ”‰‡†Ǥ

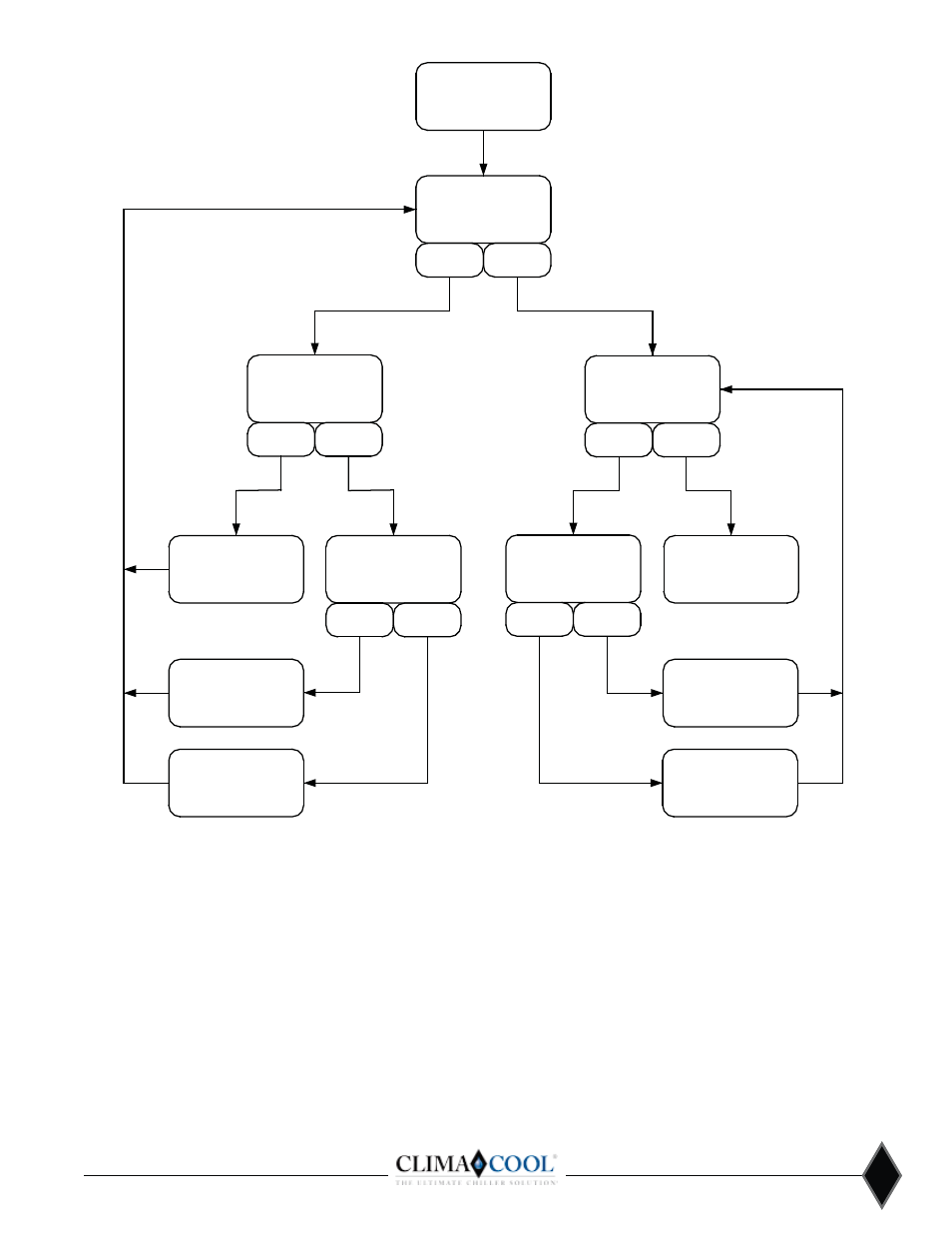

Subcooling & Superheat
Flow Chart
–ƒ”–—’‘ —‡–ƒ–‹‘
All startup paperwork and documentation must be submitted to ClimaCool. Future warranty claims cannot be processed
™‹–Š‘—–ƒ ‘’Ž‡–‡†–ƒ”–—’ƒ†ƒ””ƒ–›‡‰‹•–”ƒ–‹‘ˆ‘”‘ƤŽ‡ȋ‡‡’ƒ‰‡͖͜ȌǤNote: Electronic version of the Startup
forms available on www.climacoolcorp.com in the Library section.
