Notes:
1. Allow 36” clearance for electrical panels and 30” clearance for rear service access to modules.
2. Allow a minimum of 18” height clearance for service for 30, 50 and 70 ton modules. Allow 24” for 85 ton modules.
3. Local building or electrical codes may require additional clearance. Consult applicable codes.
‡”˜‹ ‡Ž‡ƒ”ƒ ‡•Ǧ‡ƒ–—’

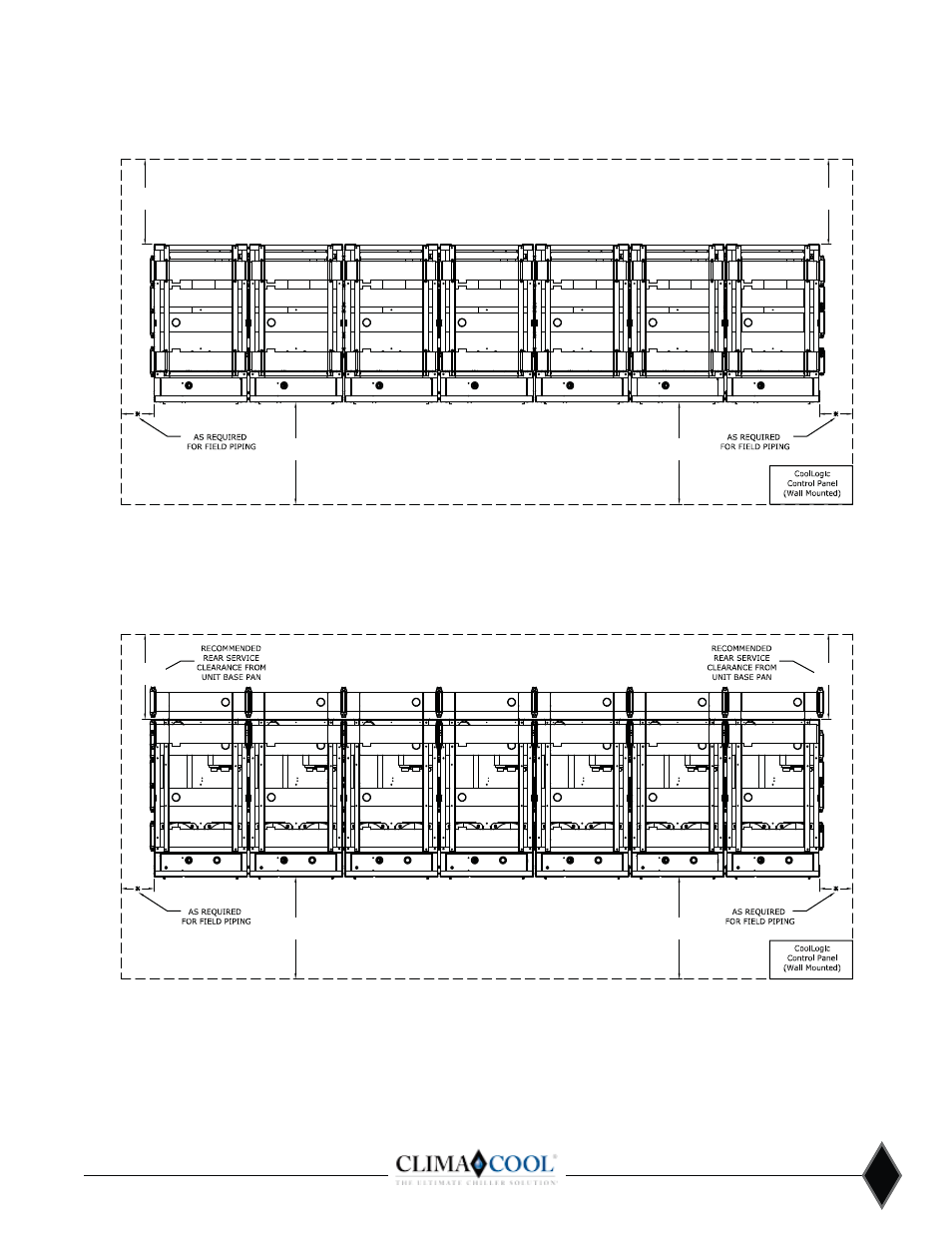

Service Clearances SHC - Heat Recovery
Top View
Rear Service Access
Front Service Access
36” 36”
30” 30”
Top View
Rear Service Access
Front Service Access
36” 36”
30” 30”
