Use and maintenance manual Rev. 02-2010
ENGLISH

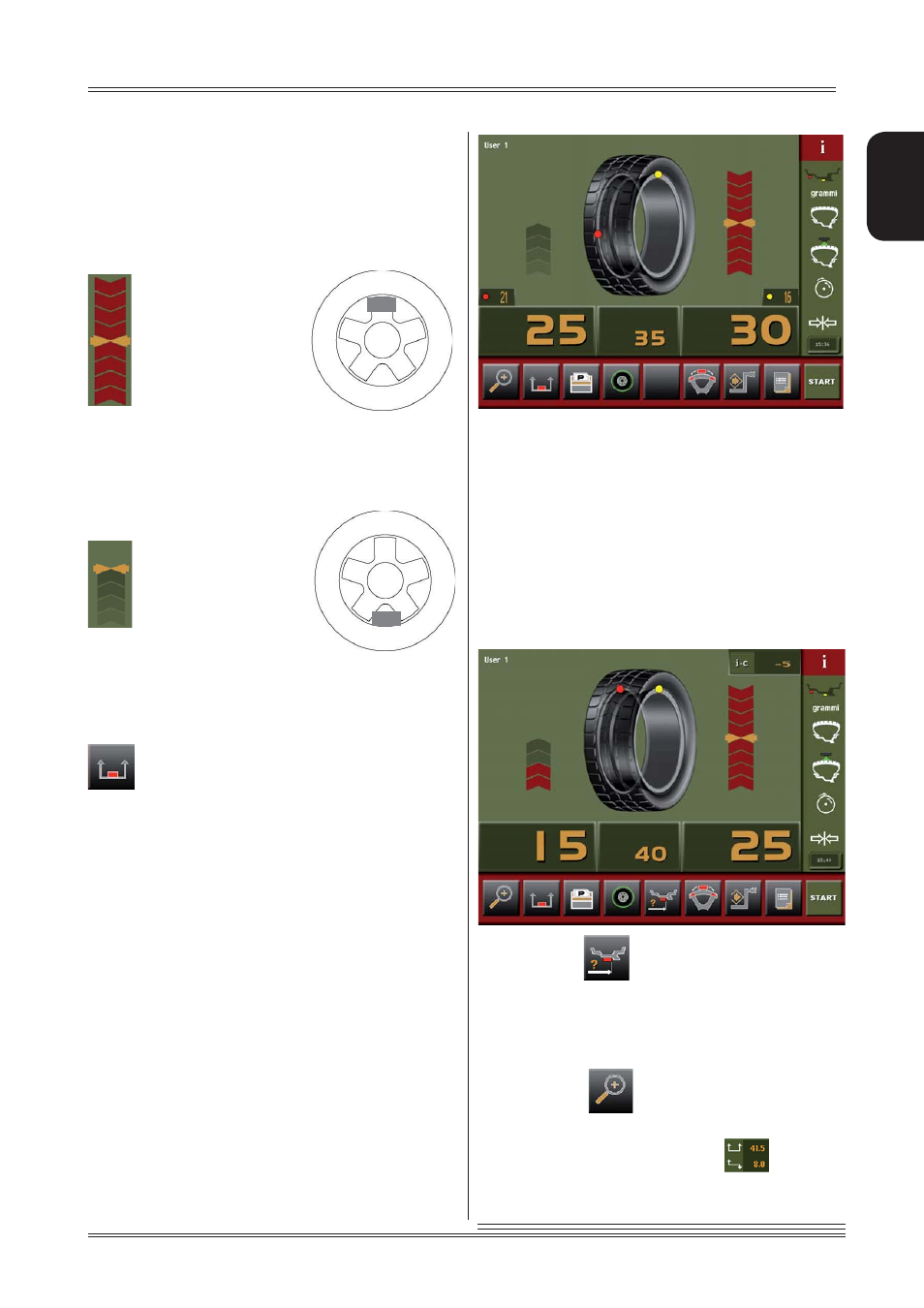

7.8.4 Spin with guard closed
When “ON” is selected the automatic start of the spin is
enabled when the guard is closed.
7.8.5 Opposite position
The normal balancing condition requires the correction
weight to be applied at the top (12 o’clock) when the
symbol is displayed:
If OPPOSITE POSITION is enabled, the eventual application
position for the bottom weight is also indicated next to the
positioning arrows to facilitate cleaning the rim and the relative
application of adhesive weights. The symbol used is:
7.8.6 STATIC ALWAYS ENABLED
Simultaneous display of the selected correction plane unba-
lance as well as STATIC unbalance can be enabled/disabled.
The static frame can always be selected by pressing the
button from the measuring frame.
7.9 CORRECTION METHOD
One of the three possible correction methods can be selec-
ted based on the specifi c requirements of the customer.
7.9.1 Standard correction method
The wheel balancer considers the unbalance within tole-
rance when the value of each single plane is lower than the
tolerance set.
7.9.2 External plane correction method
If correcting with adhesive weights, the unbalance is considered
within tolerance when the recalculated external plane weight
(clip-on weights) is lower than the tolerance set.
Additional windows appear on the screen always displaying
the residual external plane value (clip-on weight):
7.9.3 I.C. (intelligent correction) correction
method - The option is not enabled for
Canada and the USA
The correction plane unbalance is considered within tole-
rance when both the STATIC and the DYNAMIC TORQUE
unbalances are lower than the tolerance set.
This correction method allows considerably reducing the
weight to be applied, yet maintaining excellent balancing
quality. An icon appears on the screen showing the value of
weight saved with respect to standard balancing.
When the button appears, it means that the wheel
balancer is suggesting static balancing, however, such that
also the dynamic torque unbalance will be brought within
tolerance. When pressing this button, the position repeater
frame is accessed which clearly indicates where the weight
should be positioned in the rim.
When the button is pressed, as well as the actual
unbalance values a window is also displayed indicating the
static and dynamic torque unbalances ( ).
Setup
