13
Pos B
Pos A
FI
FE FI
Use and maintenance manual Rev. 02-2010
ENGLISH

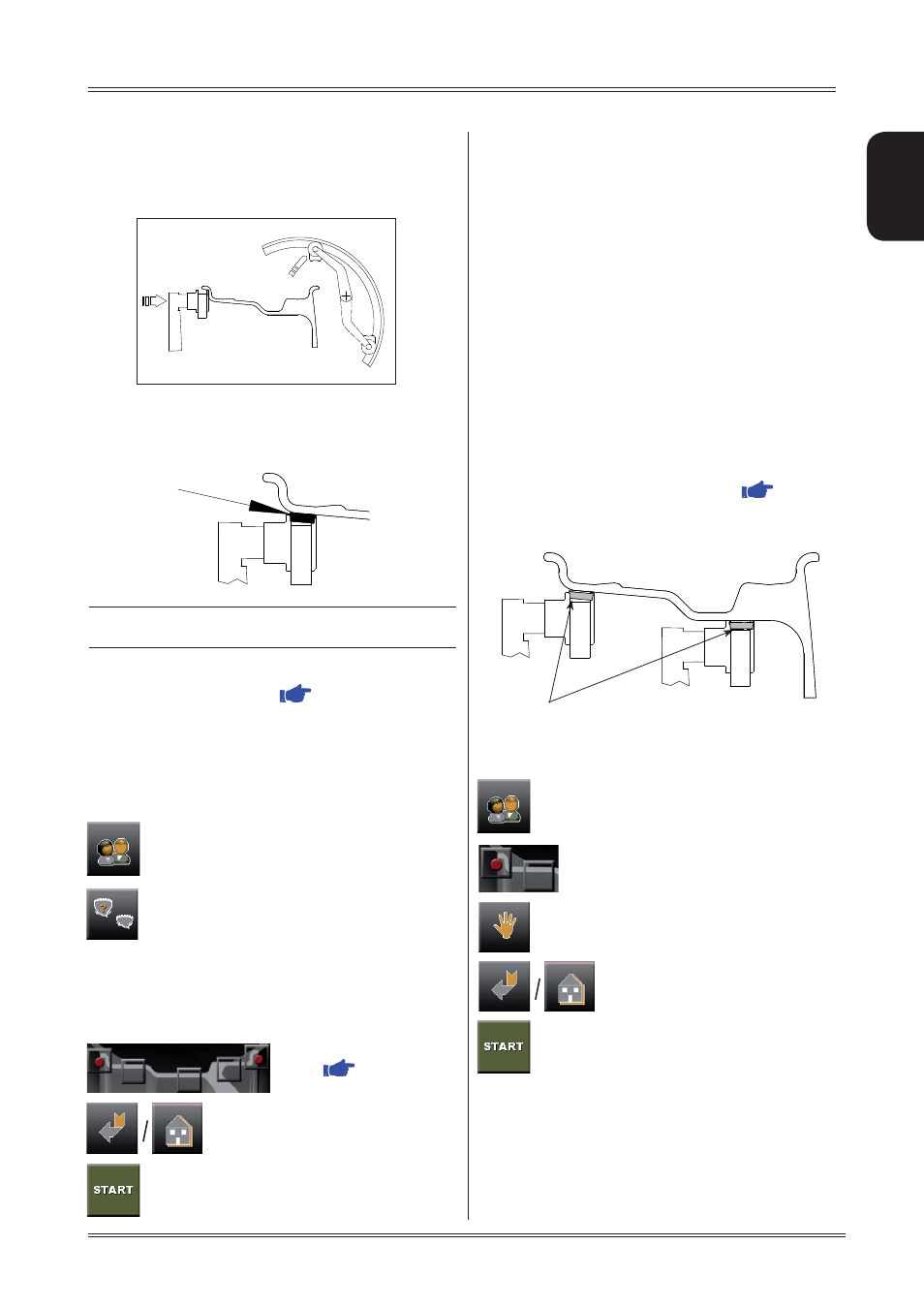

a) Standard weight
Using the special grip, move the end of the gauge against
the rim in one of the positions A/B shown.
b) Adhesive weight: in the position indicated below.
INDICATION
always use the round part of the striker plate
Hold the gauge in position for at least 2 seconds.
If the acoustic signal is enabled (
ACOUSTIC SIGNAL ), the
acquisition of the dimensions is accompanied by a “beep”.
Set the distance+diameter gauge to the rest position.
The other enabled buttons are:
User call/save control
This button is used to improve the dimensional
calibration of large-diameter wheels such as off-
road, trucks, wheels which protrude signifi cantly
from the rim. Press this button several times to
select the type of tyre projection (from 1.0” to
2.0”). The option is disengaged at the end of current
Width Measurement.
select the type of weight to
apply (
CORRECTION
METHODS
).
return to initial frame
balancing run.
Use of the wheel balancer
5.3.1.1 Automatic width measurement
Slowly lower the guard after making the automatic measu-
rement of the distance + diameter to automatically measure
the wheel width.
If the width measured is incorrect (out of range), the following
message appears:
“Sonar measure is out of range:”
“F1 = repeat”
“F2 = manual set-up”
Press F1 to re-lower the guard and repeat the width measu-
rement. Press F2 to go to the dimensions panel for manual
insertion of the width measurement. Manually presetting is
possible by using the push buttons as described in
“ PRESET-
TING OF WHEEL DIMENSIONS ”.
5.3.2 ALUS wheel automatic presetting (Adhe-
sive weights)
Make two consecutive measurements inside the rim on
two correction planes of your choice as indicated in figu-
re. When the acoustic signal is enabled (
ACOUSTIC
SIGNAL
), the acquisition is accompanied by a “beep”.
The enabled buttons are:
User call/save control
selection of clip or adhesive weight for
inside.
selecting the manual dimension presetting
screen
return to initial screen.
balancing run.
Position of adhesive weights
