11
1
A
2 3
Use and maintenance manual Rev. 02-2010
ENGLISH

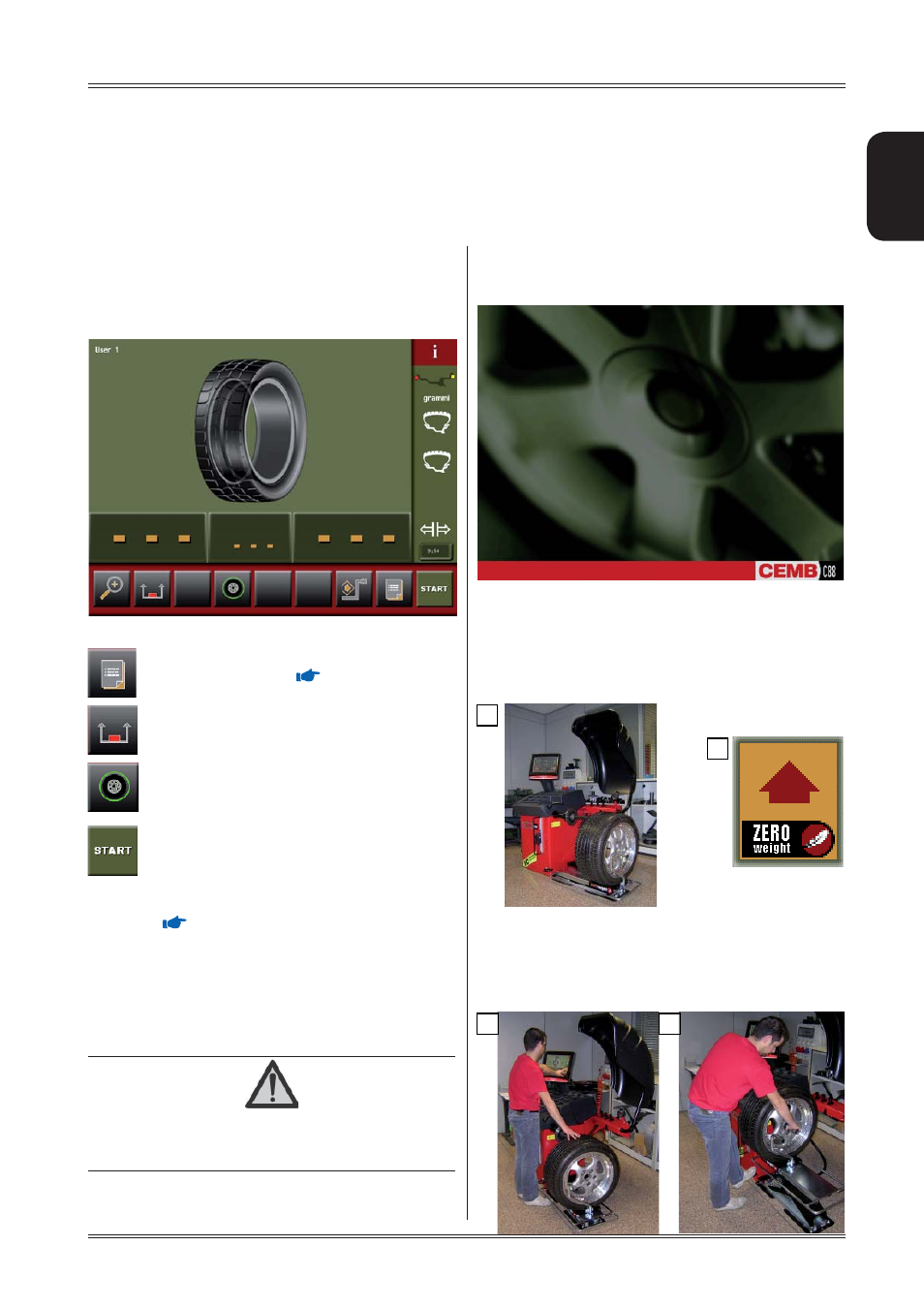

5 Use of the wheel balancer
Use of the wheel balancer
The monitor shows several information and suggests various
alternative ways of use to the operator.
This is through various “screens”.
5.1 INITIAL SCREEN
Buttons enabled:
: main functions screen ( MENU ACCESS DIA-
GRAM )
: selecting static correction
: eccentricity screen selection
: balancing spin (see RESULT OF MEASUREMENT )
Dimensions gauge : when extracted, the Dimensions screen
is selected ( AUTOMATIC STANDARD SETTING ).
If the machine remains on the initial screen for a certain
amount of time without being used, the system is
automatically switched to a screen-save. Striking of any key,
movement of the wheel of distance + diameter gauge will
cause automatic switching from the screen-save menu to
the initial screen.
CAUTION
WHEN THE SCREENSAVER IS ACTIVE , AUTOMATIC STARTING ACTIVATED
BY THE GUARD IS NOT AVAILABLE FOR SAFETY REASONS .
5.1.1 SCREEN-SAVE SCREEN
Name of the wheel balancer’s owner. Can be preset via the
monitor.
5.2 AUTOMATIC LIFT
To balance the wheel:
Move the lift into rest position (down) and hold the 1.
spindle open (wheel dismounted, pedal in up position);
The symbol on the screen:
Mount the wheel on the lift; 2.
Press the symbol indicated in Fig. A to start loading 3.
(Photo 2);
The message «Wait...» appears on the screen until the wheel
has been lifted off the ground.
