12
B
C 4
5 6
Use and maintenance manual Rev. 02-2010
ENGLISH

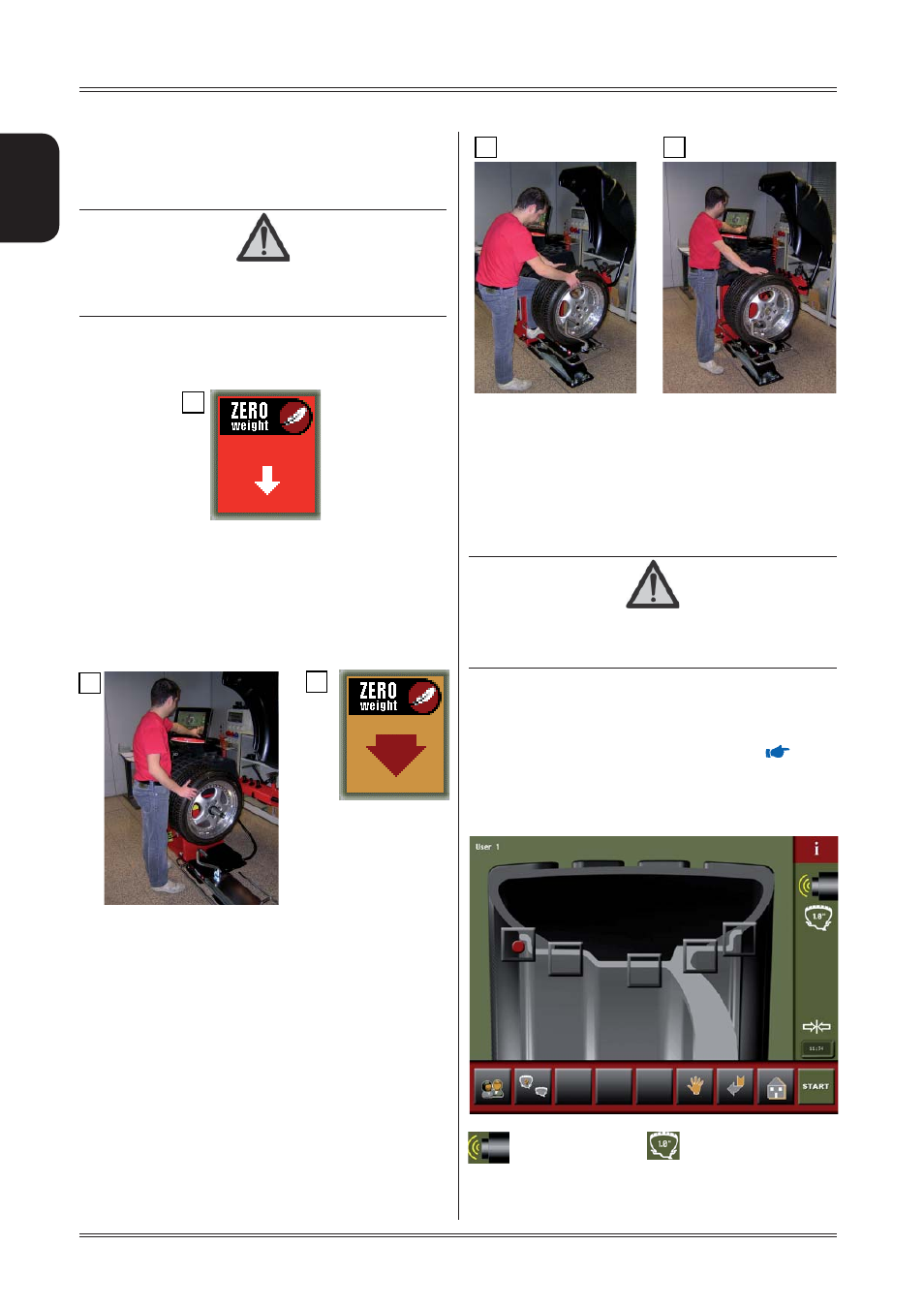

Mount the wheel on the wheel balancer, fitting it 4.
correctly on the adapter;
Push the pedal to lock the wheel on the spindle 5.
(Photo 3)
WARNING!
AFTER PUSHING THE SPINDLE CLOSING PEDAL ( WHEEL LOCKING )
THE LIFT AUTOMATICALLY MOVES TO THE REST POSITION ( DOWN ).
The symbol appears on the screen:
until the rest position has been reached (down).
Continue with normal wheel balancing; 6.
Press the symbol indicated in Fig. A to return the lift 7.
to the top position ready to unload the wheel (Photo
4).The lift positions with sufficient force to compen
sate the weight of the wheel in order to facilitate its
unloading
Release the pedal to enable wheel release; 8.
Move the wheel outside the spindle axis and push 9.
the lift to the bottom (using your foot - Photo 5) until
reaching the rest position (down); this function can
be executed automatically by pressing the button
indicated in Fig. C (as shown in Photo 6).
Remove the wheel from the lift, load the next one 10.
and repeat the procedure from step 1.
If the cycle is interrupted for any reason, proceed as
follows:
If the wheel is mounted, remove it manually; 1.
Hold the button indicated in Fig. A down for more 2.
than 2 seconds to enable the lift reset cycle.
WARNING!
IN SOME CASES , THE LIFT MIGHT MOVE SLOWLY UNTIL THE PNEUMATIC
SYSTEM IS COMPLETELY EMPTY .
Repeat the sequence from step 1. 3.
5.3 PRESETTING OF WHEEL DIMENSIONS
5.3.1 Automatic standard setting ( also
CORRECTION MODE
)
L.T. /SUV FUNCTION
ON INDICATOR
(see enabled buttons)
FUNCTION ON
INDICATOR: Sonar
“WIDTH”.
Use of the wheel balancer
