CEMB USA ER100 - Manual (Page 11)

11
16
25Nm
15
17 17
use and maintenance manual Rev. 11-2011
ENGLISH
Installation

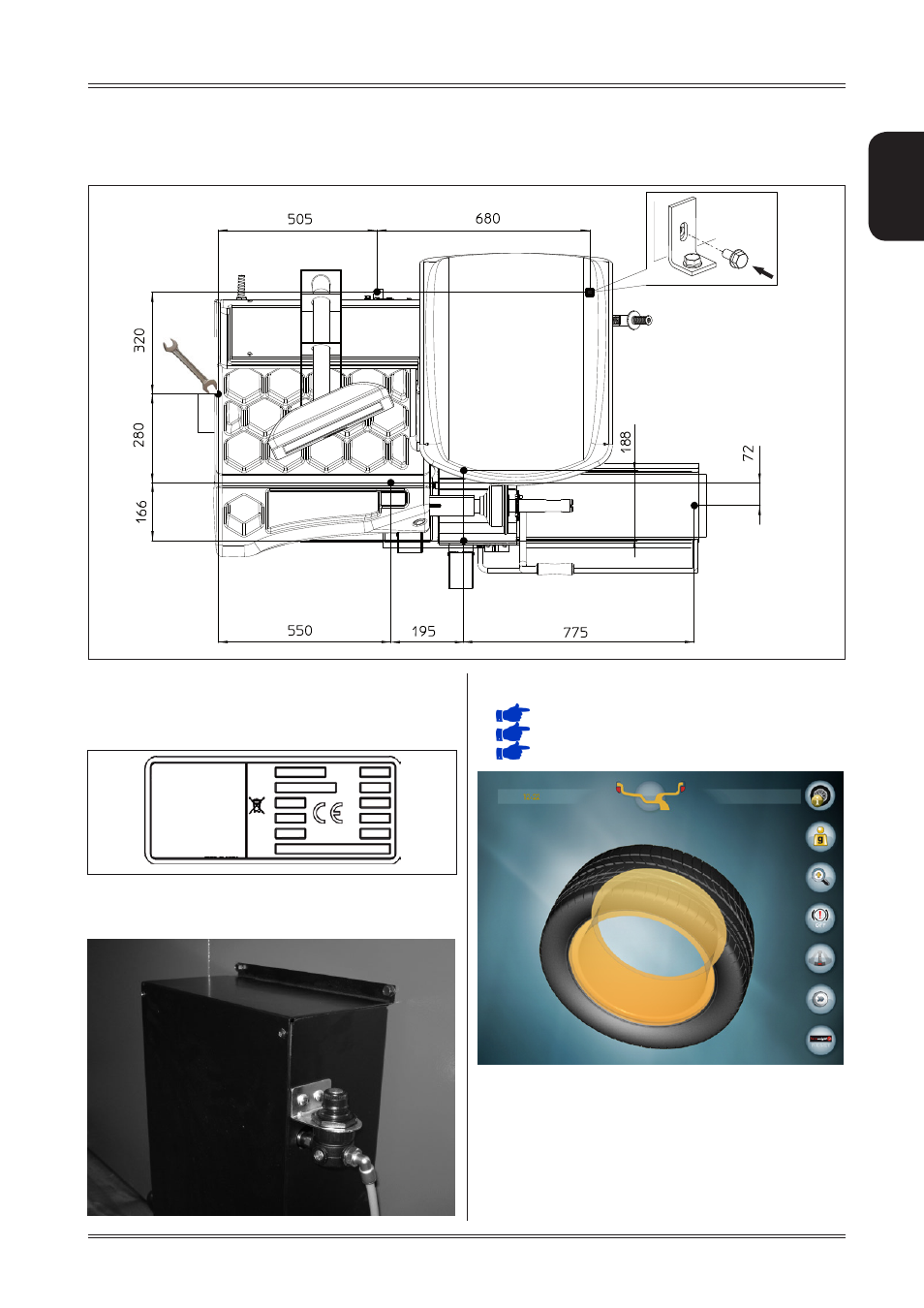

Drill the holes in the floor using a drill with an 8Ø bit and fit the expandable bolts provided as indicated in the 15.
drawing and tighten them to a torque of 25 Nm. As indicated in the box, in the last phase, fasten the mounting
brackets on the side of the column and tighten to a torque of 25Nm (15) .
Check that the mains input voltage and frequency 16.
parameters are compatible with the data shown on
the wheel balancing machine plate (±10%) (16).
Check proper pneumatic connection; the machine and 17.
the lift require at least 8 kg/cm² (~ 0.8 MPa; ~8 BAR;
~115 PSI) (17).
Turn on the machine and carry out 18. the following
operations:
▪ Laser caLibraTion
▪ Taper caLibraTion
▪ Machine caLibraTion
