Phase 5 coin microprocessor control panel assembly – American Dryer Corp. ADG-50DS User Manual
Page 7
450302-5
Telephone: (508) 678-9000 /
www.amdry.com
5

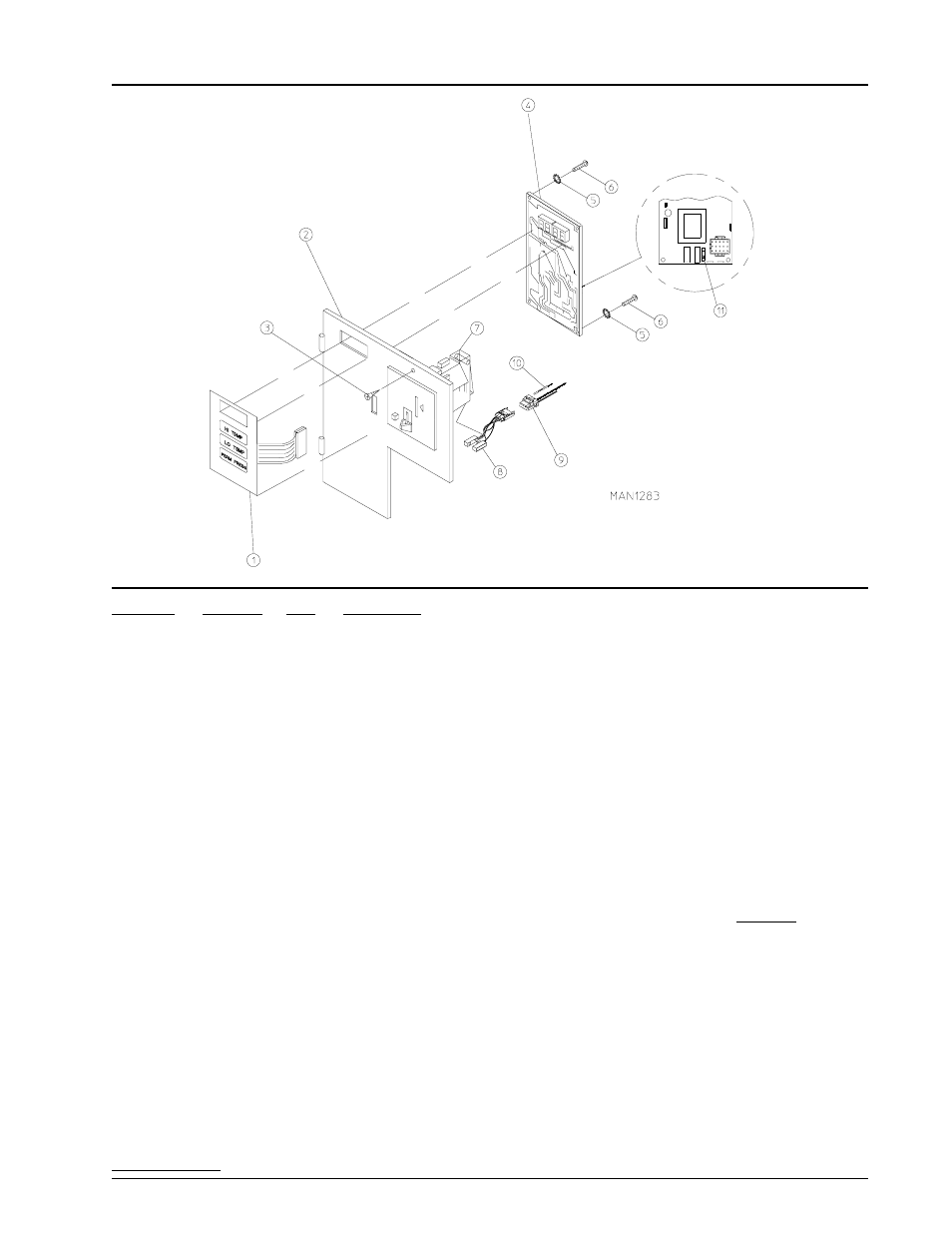

Illus. No.
Part No.
Qty.
Description
1
112526
1
Coin Keyboard Label Assembly
2
801213
1
Phase 5 Coin Control Panel Assembly
(includes illus. nos. 1, 2, 4 through 6 and 11)
801229
1
Phase 5 Coin Control Panel Assembly with Battery Option
(includes illus. nos. 1, 2, 4 through 6 and 11)
801259
1
Coin Control Panel Only
801258
1
Coin Control Panel with Battery Bracket
3
150309
1
#10-16 x 1/2” Hex Head TEK Crimptite Screw
4
137213
1
Phase 5 Coin Controller Only
824998
1
Phase 5 Battery Clip
5
153010
2
#6 Star Washer
6
150005
2
#6-32 x 1/4” Phillips Round Head Machine Screw
7
---------
1
Microprocessor Coin Acceptor with Optical Switch
(refer to Microprocessor Coin Acceptors Listing on page 49)
8
137056
1*
Optic Switch Only (Greenwald coin acceptors)
881143
1*
Optic Switch Only (Hanke coin acceptors)
9
137023
1*
Optic Switch Connector Only
10
137021
3*
Microprocessor Socket Only
880772
1
Single Coin Optical Switch Harness
824080
1
Dual Coin Optical Switch Harness
122800
1
Microprocessor (female) Pin Extraction Tool
11
136048
1
1/8-Amp (Slo-Blo) Fuse
*
For dual coin models, double the quantity.
IMPORTANT: Check label on computer chip to verify correct part number for controller.
Phase 5 Coin Microprocessor Control Panel Assembly
