American Dryer Corp. ADG-50DS - Manual (Page 30)

28 American Dryer Corporation 450302-5

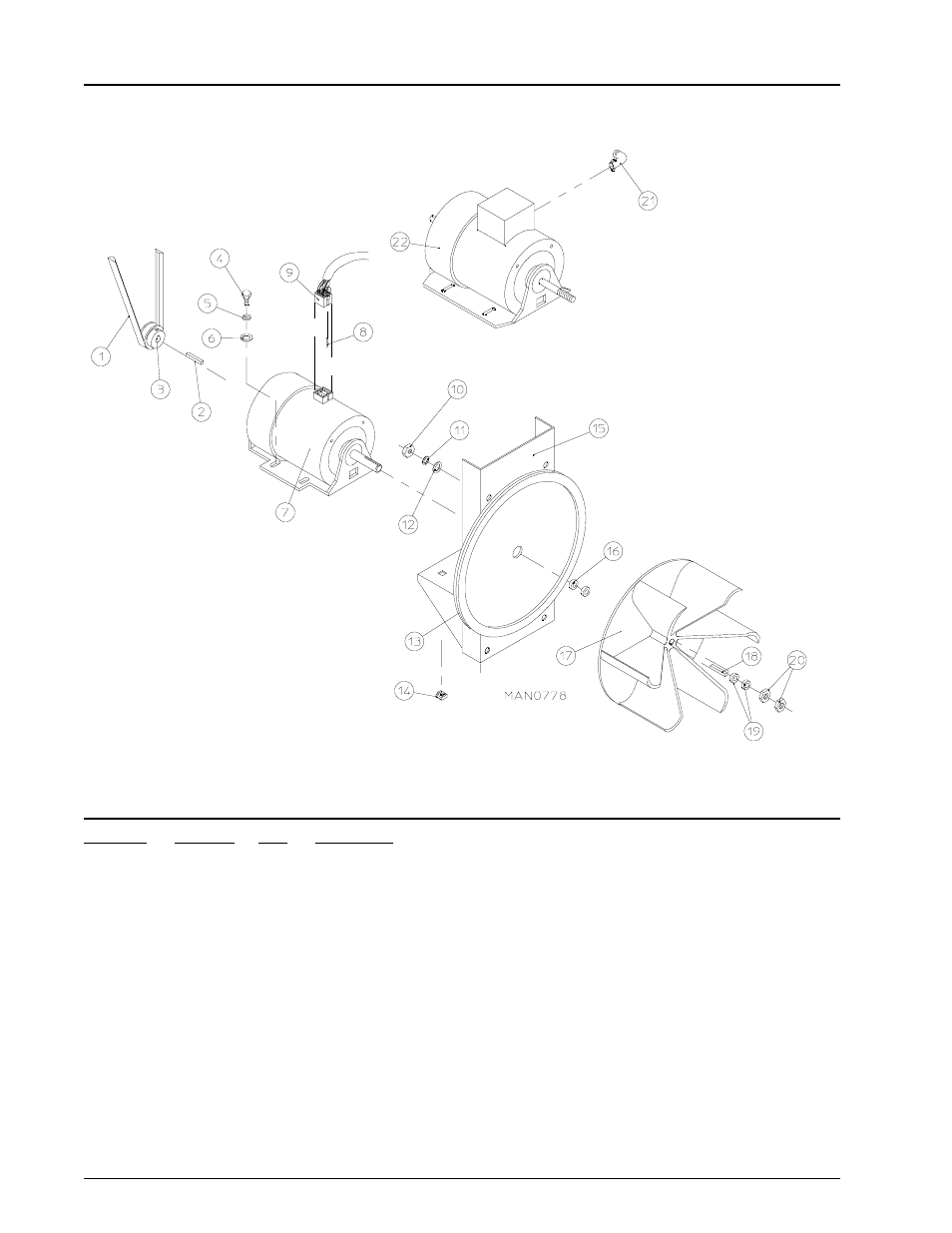

Non-Reversing Totally Enclosed, Fan-Cooled Motor Mount Assembly
Illus. No. Part No. Qty. Description
1 100166 1 4L-790 V-Belt (to idler assembly) 50/60 Hz Only
2 100701 1 3/16” x 3/16” x 1” Key
3 101130 1 5/8” x 2-1/2” Motor Pulley (60 Hz motors Only)
101139 1 5/8” x 2-3/4” Motor Pulley (50 Hz motors Only)
4 150501 4 5/16-18 x 3/4” Hex Head Machine Bolt
5 153002 4 5/16” Lock Washer
6 153001 4 5/16” Flat Washer
7 100073 1 1 hp 115-230v 1ø 60 Hz Non-Reversing Totally Enclosed, Fan-Cooled
Motor (plug type)
181016 1 3/4 hp 240v 1ø 50 Hz Non-Reversing Totally Enclosed, Fan-Cooled
Motor (plug type)
8 122701 8 Socket Terminal Only
122801 1 Pin/Socket Extraction Tool
9 137030 1 8-Pin Housing Connector
10 152004 4 5/16-18 Hex Nut
