Idler bearing assembly – American Dryer Corp. ADG-50DS User Manual
Page 27
450302-5
Telephone: (508) 678-9000 /
www.amdry.com
25
Illus. No.
Part No.
Qty.
Description
1
100165
1
5L-610 V-Belt (idler to tumbler)
For Non-Reversing Models Only
100106
1
5L-690 V-Belt (idler to tumbler)
For Reversing Models Only
2
101140
1
14” x 3” Compound Pulley
3
100166
1
4L-790 V-Belt (idler to motor) 60 Hz
(for non-reversing models Only)
100167
1
4L-800 V-Belt (idler to motor) 50 Hz
(for non-reversing models Only)
100109
1
4L-650 V-Belt (idler to motor) 50/60 Hz
(for reversing models Only)
4
154301
2
5/16-18 x 1” Allen Setscrew
5
100705
1
3/16” x 3/16” x 1-3/8” Key
6
882576
1
Idler Bearing Assembly Complete
(includes illus. nos. 5 through 12)
7
150617
2
3/8-16 x 1” Hex Head Machine Bolt
8
153005
2
3/8” Lock Washer
9
153004
2
3/8” Flat Washer
10
801009
1
Idler Square Washer
11
152004
1
5/16-18 Hex Nut
12
150509
1
5/16-18 x 3” Hex Head Machine Bolt

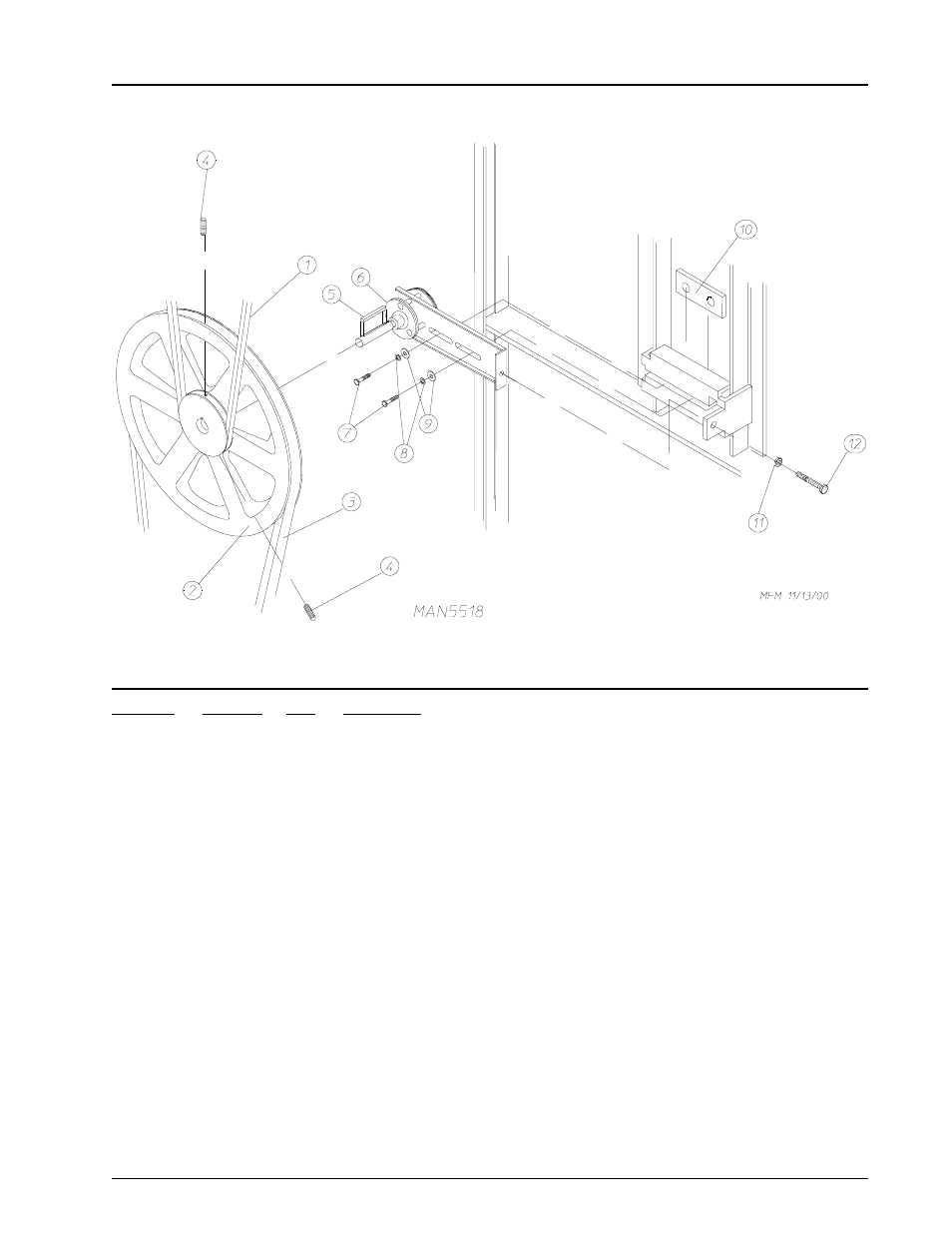

Idler Bearing Assembly
