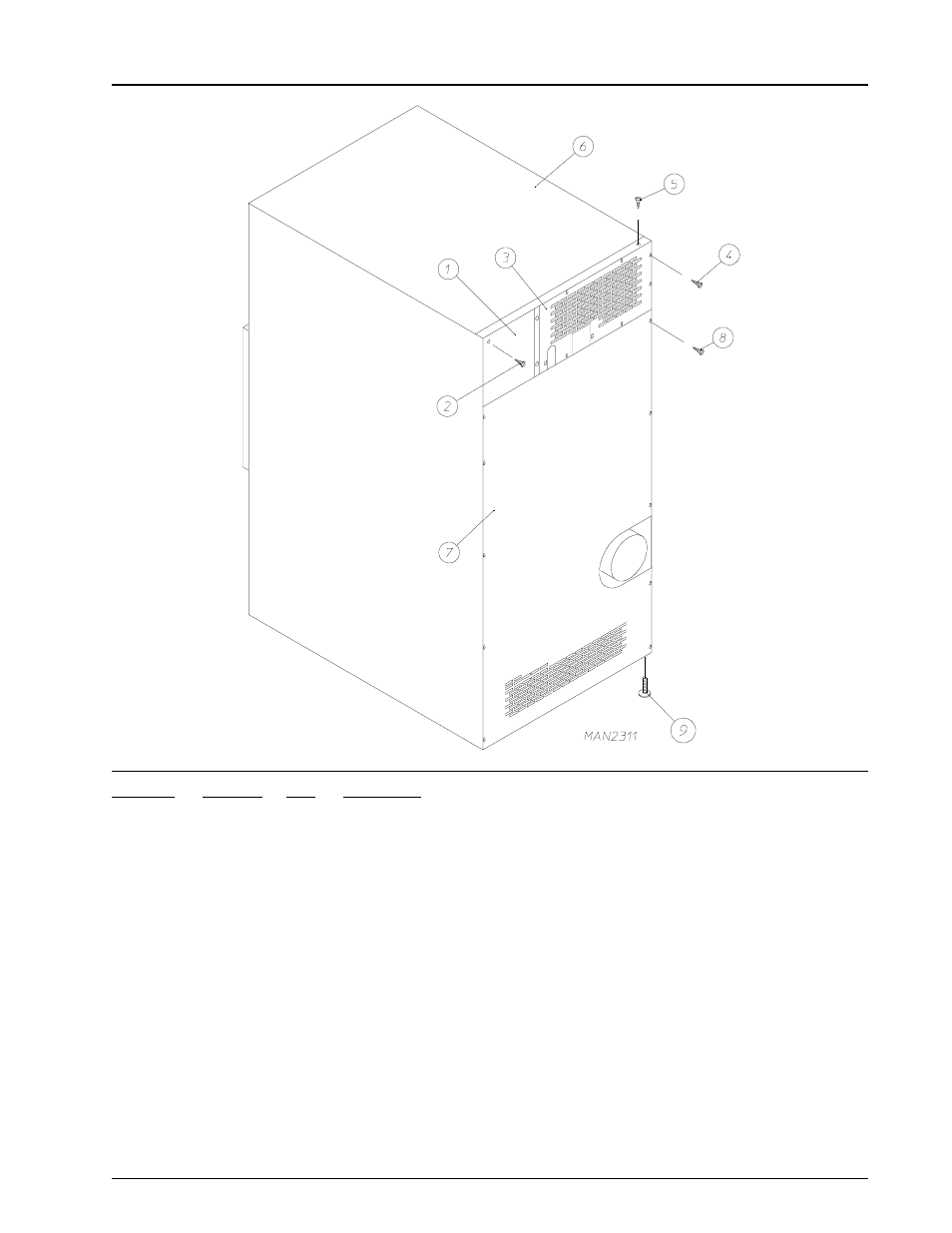

Outer top/back guard assemblies – American Dryer Corp. ADG-50DS User Manual
Page 47
450302-5
Telephone: (508) 678-9000 /
www.amdry.com
45
Illus. No.
Part No.
Qty.
Description
1
322809
1
Back Electrical Box Cover
2
150301
4
#8-18 x 7/16” Phillips Pan Head TEK Screw
3
314421
1
Top Back Guard (gas models Only)
(for models mfd. as of April 20, 1998)
314422
1
Top Back Guard (electric models Only)
(for models mfd. as of April 20, 1998)
314411
1
Top Back Guard
(for models mfd. prior to April 20, 1998)
No Top Back Guard on Steam Models
4
150301
7
#8-18 x 7/16” Phillips Pan Head TEK Screw
5
150301
10
#8-18 x 7/16” Phillips Pan Head TEK Screw
6
801577
1
Outer Top (electric models Only)
312533
1
Outer Top (gas models Only)
No Outer Top on Steam Models
7
314523
1
Bottom Back Guard (plain)
8
150301
13
#8-18 x 7/16” Phillips Pan Head TEK Screw
9
103500
4
Leveling Legs
Outer Top/Back Guard Assemblies
