Tumbler/support assemblies – American Dryer Corp. ADG-50DS User Manual
Page 26
24
American Dryer Corporation
450302-5

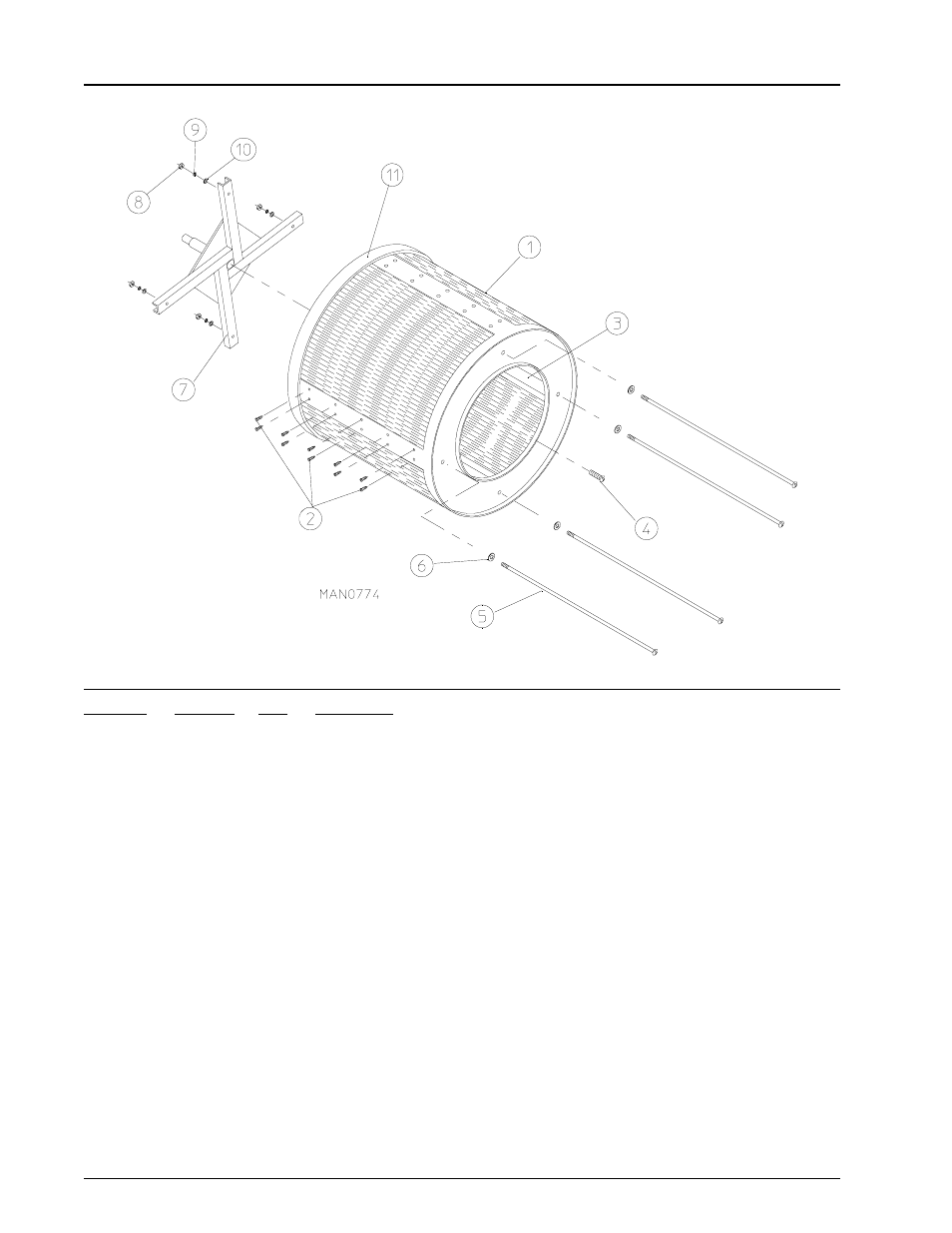

Illus. No.
Part No.
Qty.
Description
1*
800838
1
Tumbler Only with Tapered Rib (without felt collar)
800837**
1
Non-Reversing Tumbler and Support Assembly with Tapered Rib
(includes illus. nos. 1 through 10)
800839**
1
Reversing Tumbler and Support Assembly with Tapered Rib
(includes illus. nos. 1 through 10)
2
150309
40
#10-16 x 1/2” Hex Head TEK Crimptite Screw
3
301302
2
Tumbler Rib Only (low rib)
301311
2
Tapered Tumbler Baffle Rib Only (high rib)
4
150500
1
5/16-18 x 3/8” Socket Button Head Screw
5
100903
4
5/16-18 x 38-1/2” Tie Rod
6
153004
4
3/8” Flat Washer
7
800616
1
Non-Reversing Tumbler Support Only
800614
1
Reversing Tumbler Support Only
8
152005
4
3/8-16 Hex Nut
9
153005
4
3/8” Lock Washer
10
153004
4
3/8” Flat Washer
11
116001
1
Felt Collar Only
---
401010
1
#847 Adhesive For Felt Collar (5.0 oz. tube)
*
For stainless steel tumbler, contact the factory.
** Felt collar is not included and must be ordered separately.
Tumbler/Support Assemblies
