Illus. No. Part No. Qty. Description
1 154004 1 Twin Speed Nut
2 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
3 802799 1 Sail Switch Box Cover and Bracket Only
4 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
5 122200 1 Sail Switch Only
6 105500 1 Sail Switch Actuator Rod
7 319202 1 Sail Switch Damper (flat)
8 154002 1 1/8” Push On Fastener
9 802800 1 Sail Switch Box with Cover and Bracket Only
802801 1 Sail Switch Assembly Complete
(includes illus. nos. 1 through 8)
10 142809 1 1/2” x 29-1/8” Pipe
11 150309 2 #10-16 x 1/2” Round Head Machine Screw
12 319704 1 Hi-Limit Mounting Bracket Only
13 151000 2 #6-32 Pal Nut
14 151001 2 #6-32 x 1/2” Round Head Machine Screw
15 130403 1 330° Hi-Limit (automatic reset)
130201 1 330° Hi-Limit (manual reset)
16 143000 1 1/2” x 3/4” Reducing Coupling

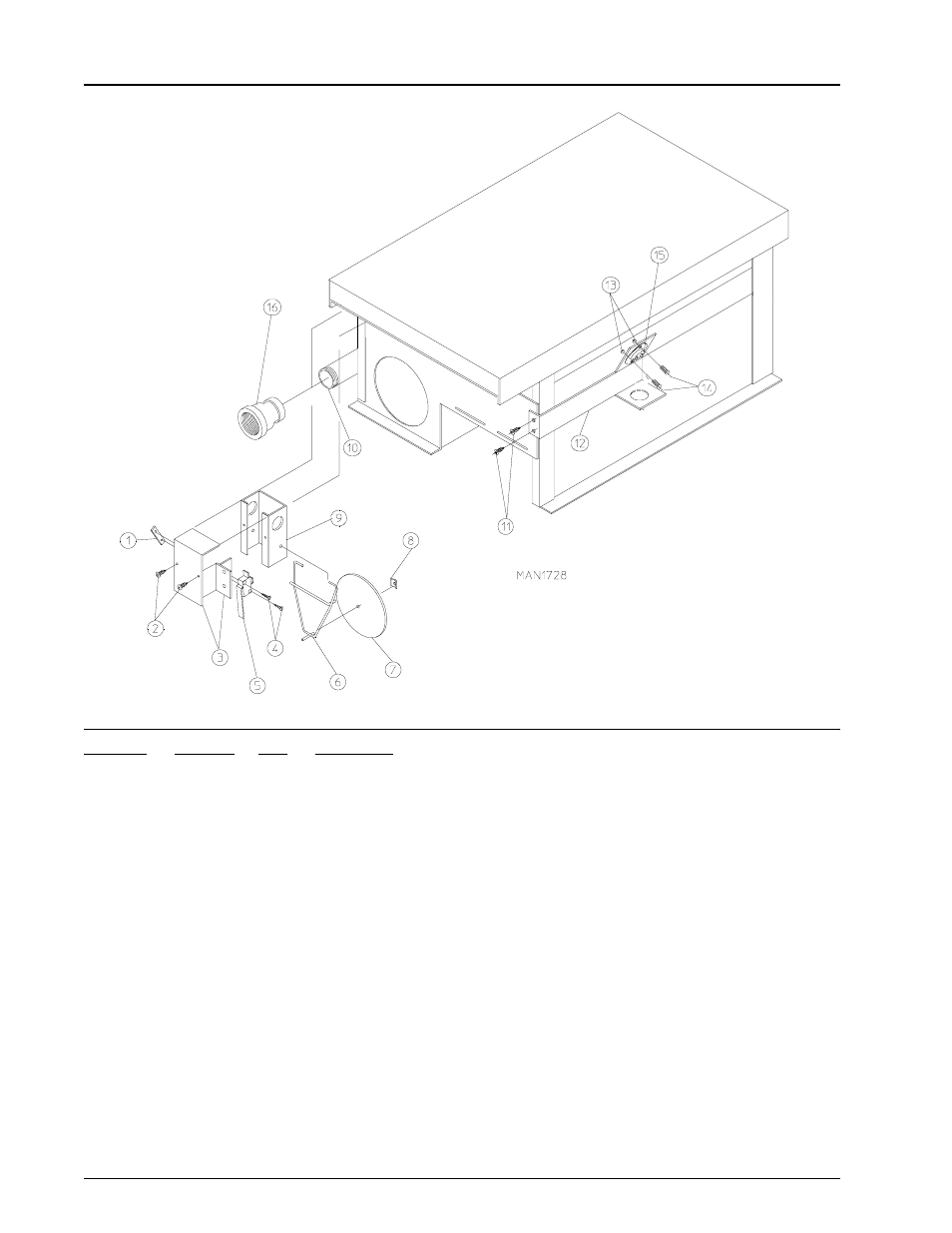

Sail Switch/Hi-Limit Assembly
