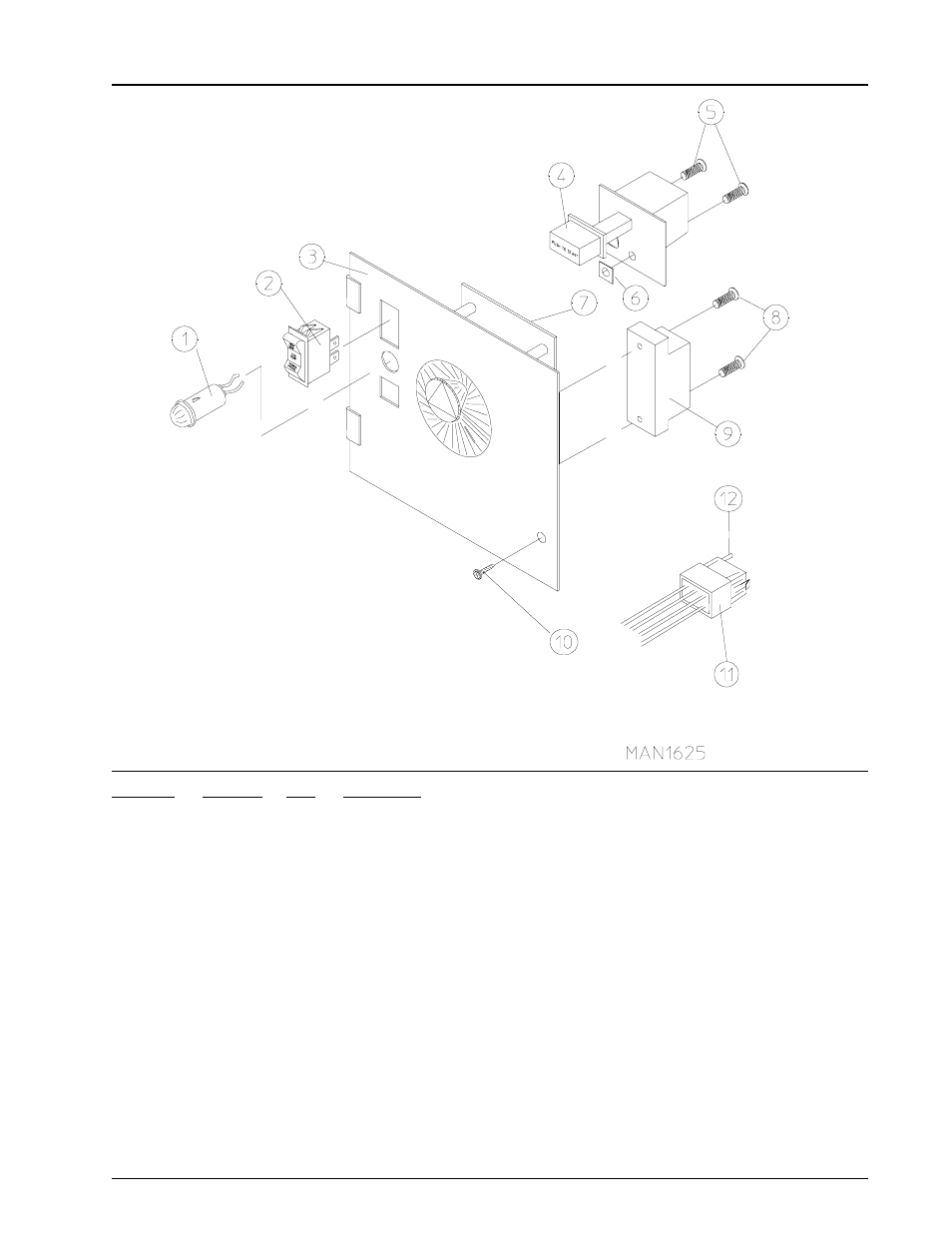

Non-Microprocessor Coin Meter Control Panel Assembly
Illus. No.
Part No.
Qty.
Description
1
123005
1
Red Indicator Light - 24 VAC
2
122400
1
Rocker Heat Selector Switch
3
824020
1
Coin Meter Control Panel Assembly Complete - 24 VAC
(includes illus. nos. 1 through 6 and 8 through 12)
800054
1
Coin Meter Control Panel Only
4
131917
1
Push-to-Start Relay - 24 VAC
5
150207
2
#10-24 x 1/2” Round Head Machine Screw
6
154001
2
#10-24 Speed Nut
7*
125601
1
25¢ Coin Meter 24v (specify timing)
8
150303
2
#4 x 3/4” Pan Head “A” Screw
9
120712
1
12-Position Terminal Block
10
150309
1
#10-16 x 1/2” Hex Head TEK Crimptite Screw
11
122602
1
9-Pin Connector Only
12
122700
9
Pin Terminal Only
--
122801
1
Pin/Socket Extraction Tool
*
Consult factory for coin meters not listed.
