Illus. No. Part No. Qty. Description
1 322812 1 Back Electrical Box Component Plate
2 132198 1 Reversing Timer 24v 50/60 Hz
3 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
4 882386 1 Reversing Contactor (208/230/240v, 50/60 Hz) 24v Coil
5 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
6 151001 2 #8-32 Pal Nut
7 153002 1 5/16-18 Lock Washer
8 152004 1 5/16-18 Hex Nut
9 132430 1 Impellor Contactor (208/230/240v, 50/60 Hz) 24v Coil
10 150103 2 #8-32 x 3/4” Phillips Round Head Machine Screw
11 151001 2 #8-32 Pal Nut
12 120701 1 4-Position Terminal Block
13 150008 2 #6-32 x 1-1/4” Slotted Round Head Machine Screw
14 151000 2 #6-32 Pal Nut
15 121300 3 Open/Closed Bushing
16 150300 2 #10 x 1/2” Hex Washer TEK Screw
17 --------- - Transformer
(refer to Transformer Listings on page 47 and page 48)
-- 322809 1 Back Electrical Box Cover...Not Illustrated
-- 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw...Not Illustrated

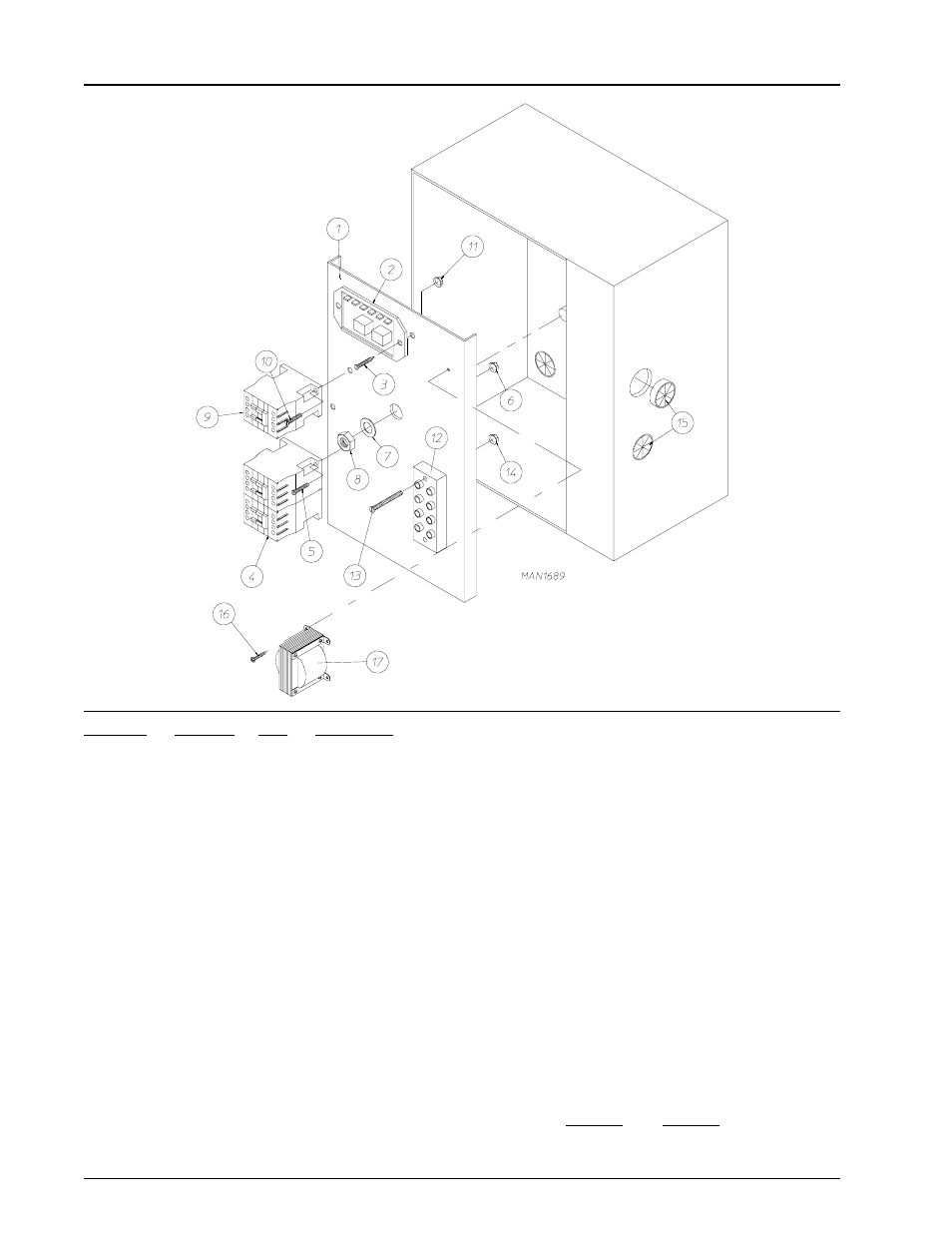

Dual Timer Reversing Rear Control Box Assembly
