Phase (3ø) motor, electric relay panel assembly – American Dryer Corp. ADG-50DS User Manual
Page 44
42
American Dryer Corporation
450302-5
Illus. No.
Part No.
Qty.
Description
1
322812
1
Back Electrical Box Component Plate
2
132430
1
Impellor Contactor (208/230/240v, 50/60 Hz) 24v Coil
3
150103
2
#8-32 x 3/4” Phillips Round Head Machine Screw
4
151001
2
#8-32 Pal Nut
5
153002
1
5/16-18 Lock Washer
6
152004
1
5/16-18 Hex Nut
7
120701
1
4-Position Terminal Block
8
150008
2
#6-32 x 1-1/4” Slotted Round Head Machine Screw
9
151000
2
#6-32 Pal Nut
10
121300
3
Open/Closed Bushing
11
137015
1
RC Filter (for microprocessor controlled models Only)
12
150300
2
#10 x 1/2” Hex Washer TEK Screw
13
---------
-
Transformer
(refer to Transformer Listings on page 47 and page 48)
--
322809
1
Back Electrical Box Cover...Not Illustrated
--
150301
4
#8-18 x 7/16” Phillips Pan Head TEK Screw...Not Illustrated

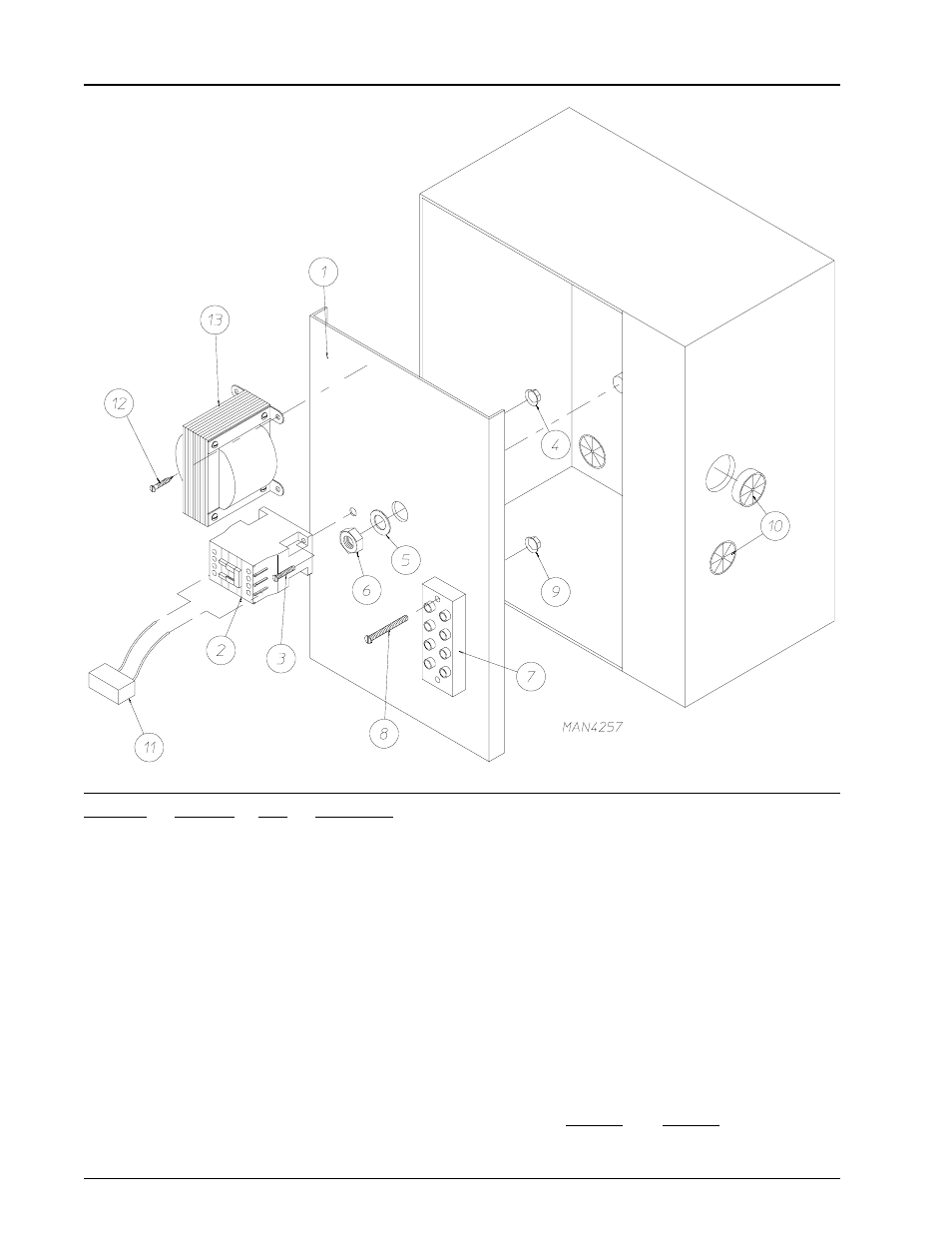

3-Phase (3Ø) Motor, Electric Relay Panel Assembly
