Page 18
12

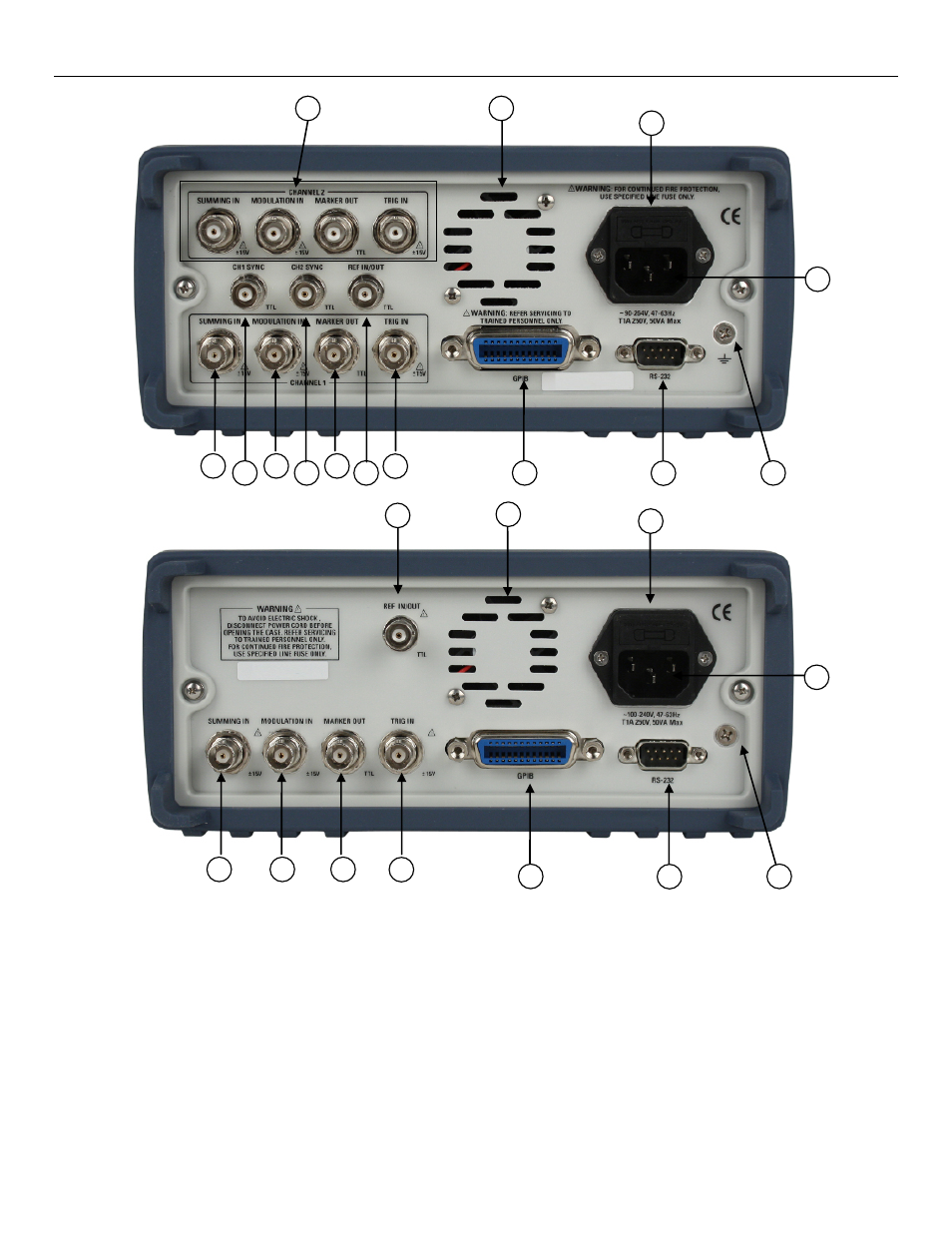

Figure 3.3 - Back Panel View
1.
Summing In - For CH 1. Use this input to apply an external analog signal to be added to the output waveform.
A 5 Vp-p signal is required for full scale output. Maximum input is ± 15 V.
2.
CH1 Sync - This is the sync output of channel one. For model 4076 the sync output is in the front panel of
the instrument (see Figure 3.1).
3.
Modulation In - Modulation input used for external modulation of a signal in AM/FM/FSK mode.
Maximum input is ± 15 V.
4.
CH2 Sync - This is the sync output of channel two. For model 4076 the sync output is in the front panel of
the instrument (see Figure 3.1).
5.
Marker Out - Use this connector to output a positive TTL pulse in Arbitrary waveform mode. The Marker
Model 4076
6
11
9
10
1
3
5
7
13
14
12
Model 4079
8
1 2 3 4 5 6 7
11
9
10
13
14
12
