22.3 Setting ON and OFF times
ON and OFF times can be set independently of each other between 1 – 30 sec-
onds at the 4 potentiometers R10 to R13.
Clockwise rotation: Time extension
Counterclockwise rotation: Time reduction
R10 (t-off) : OFF time in direction OPEN
R11 (t-on) : Running time in direction OPEN
R12 (t-off) : OFF time in direction CLOSE
R13 (t-on) : Running time in direction CLOSE
51
Multi-turn actuators SA 07.1 – SA 30.1/ SAR 07.1 – SAR 30.1
Operation instructions with actuator controls AUMA MATIC AM 01.1 / AM 02.1

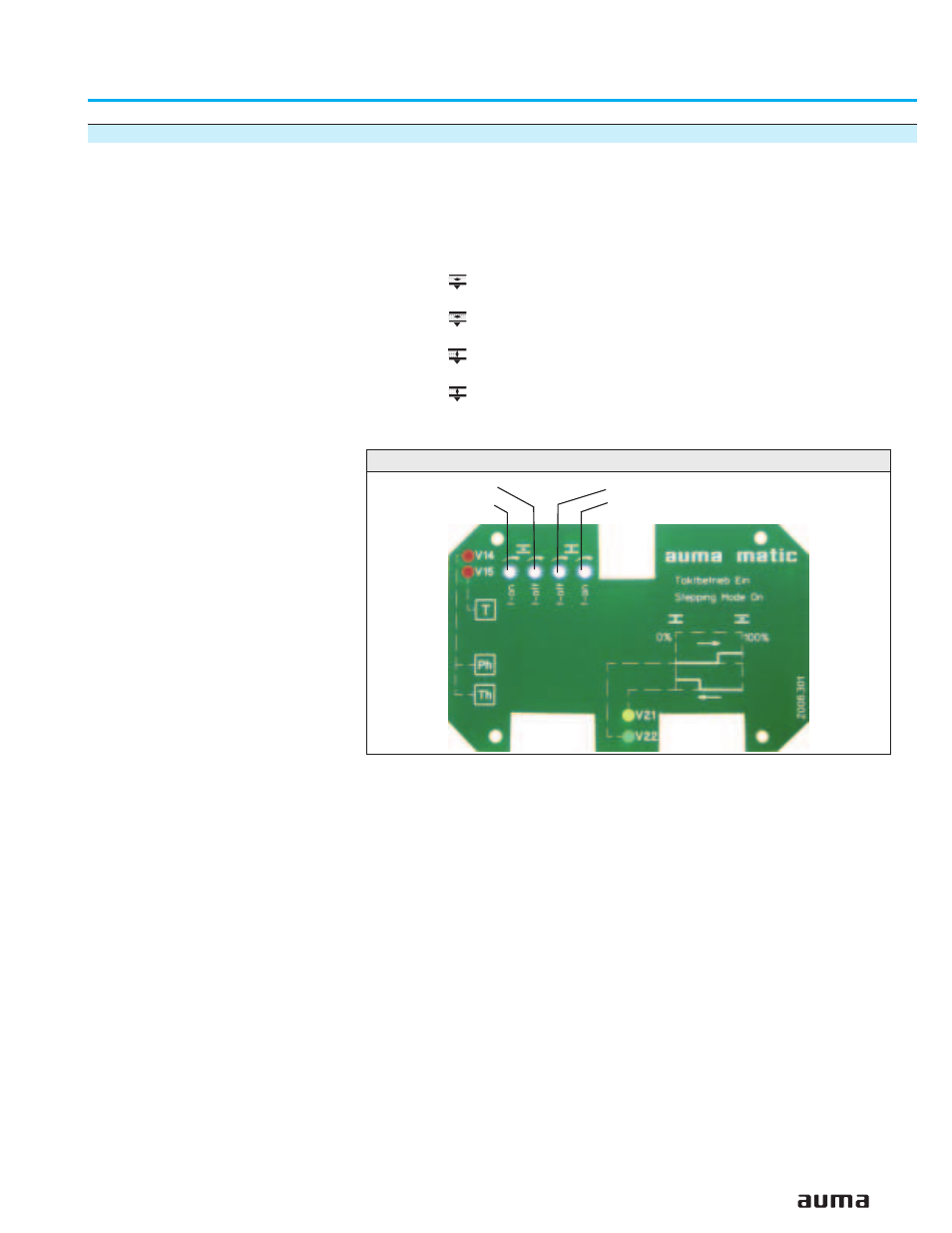

Figure AN: Cover plate for timer A1.6
R 10
R 11 R 12
R 13
