11. Opening the switch compartment
To be able to carry out the following settings (up to and including clause 18.),
the switch compartment must be opened and, if installed, the indicator disc
must be removed.
These settings are only valid for “clockwise closing”, i.e. driven shaft turns clock-
wise to close the valve.
Work on the electrical system or equipment must only be
carried out by a skilled electrician themselves or by specially
instructed personnel under the control and supervision of such
an electrician and in accordance with the applicable electrical
engineering rules.

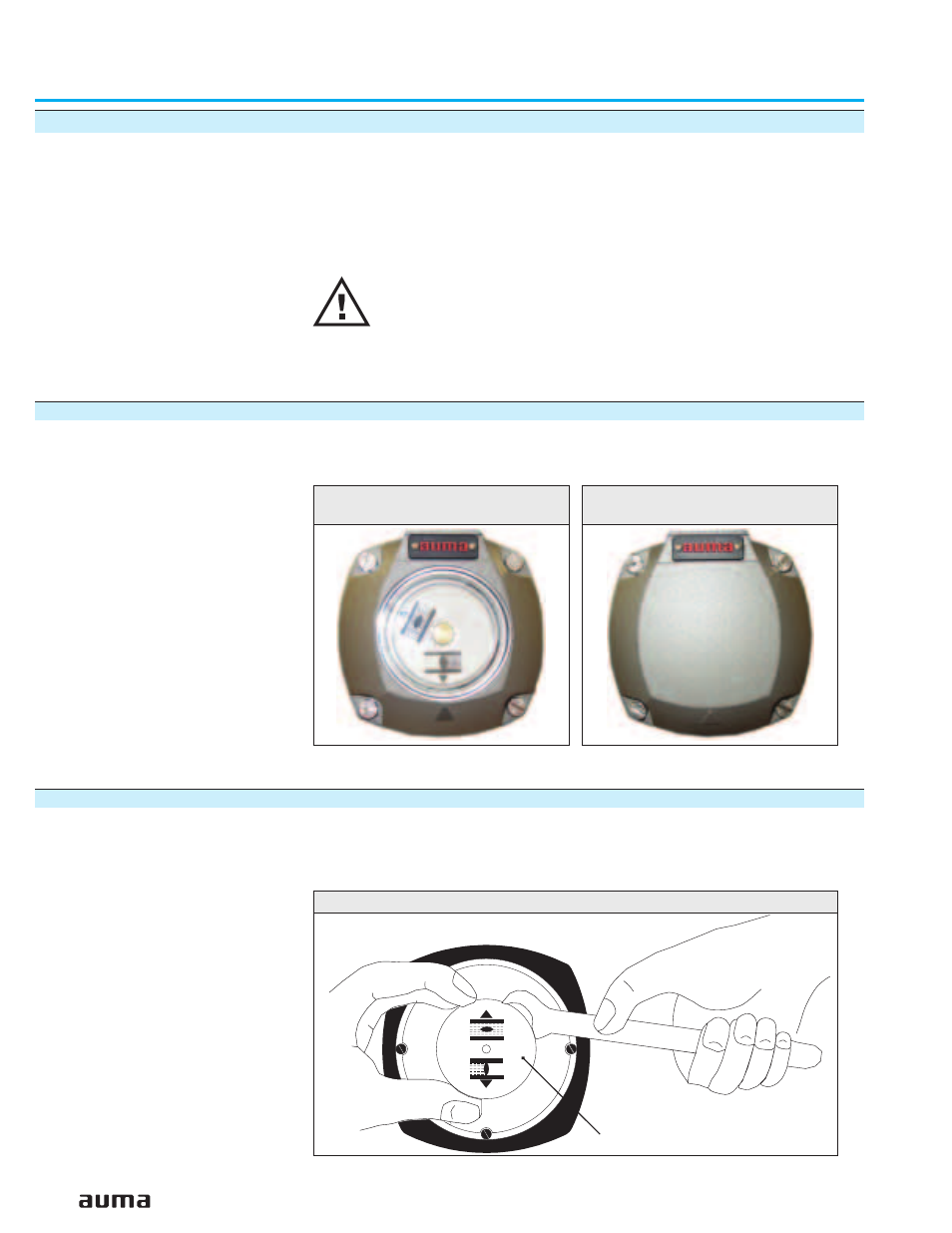

11.1 Removing the cover from the switch compartment
.
Loosen 4 bolts and take off the cover at the switch compartment
(figure N-1 or figure N-2).
11.2 Pulling off the indicator disc (option)
.
If installed, pull off indicator disc (figure O). Open end wrench
may be used as lever.
22
Multi-turn actuators SA 07.1 – SA 30.1/ SAR 07.1 – SAR 30.1
with actuator controls AUMA MATIC AM 01.1 / AM 02.1
Operation instructions
Figure N-1: Cover with
indicator glass
Figure N-2: Cover without
indicator glass
DS R
WD R
Figure O: Pulling off the indicator disc
Indicator disc
