Data Sheet l MG3710A
29
Level Error compared to CW at Vector Modulation
(18° to 28°C, AWGN signal, Bandwidth: 5 MHz)
without MG3710A-043, or without MG3710A-073
±0.3 dB (50 MHz ≤ f < 98 MHz, Output Level: ≤–5 dBm)
±0.2 dB (98 MHz ≤ f < 6 GHz, Output Level: <+1 dBm)
with MG3710A-043, or with MG3710A-073
±0.3 dB (50 MHz ≤ f < 98 MHz, Output Level: ≤–5 dBm)
±0.2 dB (98 MHz ≤ f < 6 GHz, Output Level: <–2 dBm)
I and Q Input/Output
Baseband I/Q Adjustment
DC Offset
Range: –20.000% to +20.000%
Resolution: 0.025%
Gain Balance
(Gain adjustment of I-phase for Q-phase)
Range: –1.000 dB to +1.000 dB
Resolution: 0.001 dB
Quadrature Adjustment
Range: –10.00 deg. to +10.00 deg.
Resolution: 0.01 deg.
Phase Adjustment
Range: –360.00 deg. to +360.00 deg.
Resolution: 0.01 deg.
Skew Adjustment
Range: –800.000 ns to +800.000 ns
Resolution: 1 ps
Delay Adjustment
Range: –400.000 ns to +400.000 ns
Resolution: 1 ps

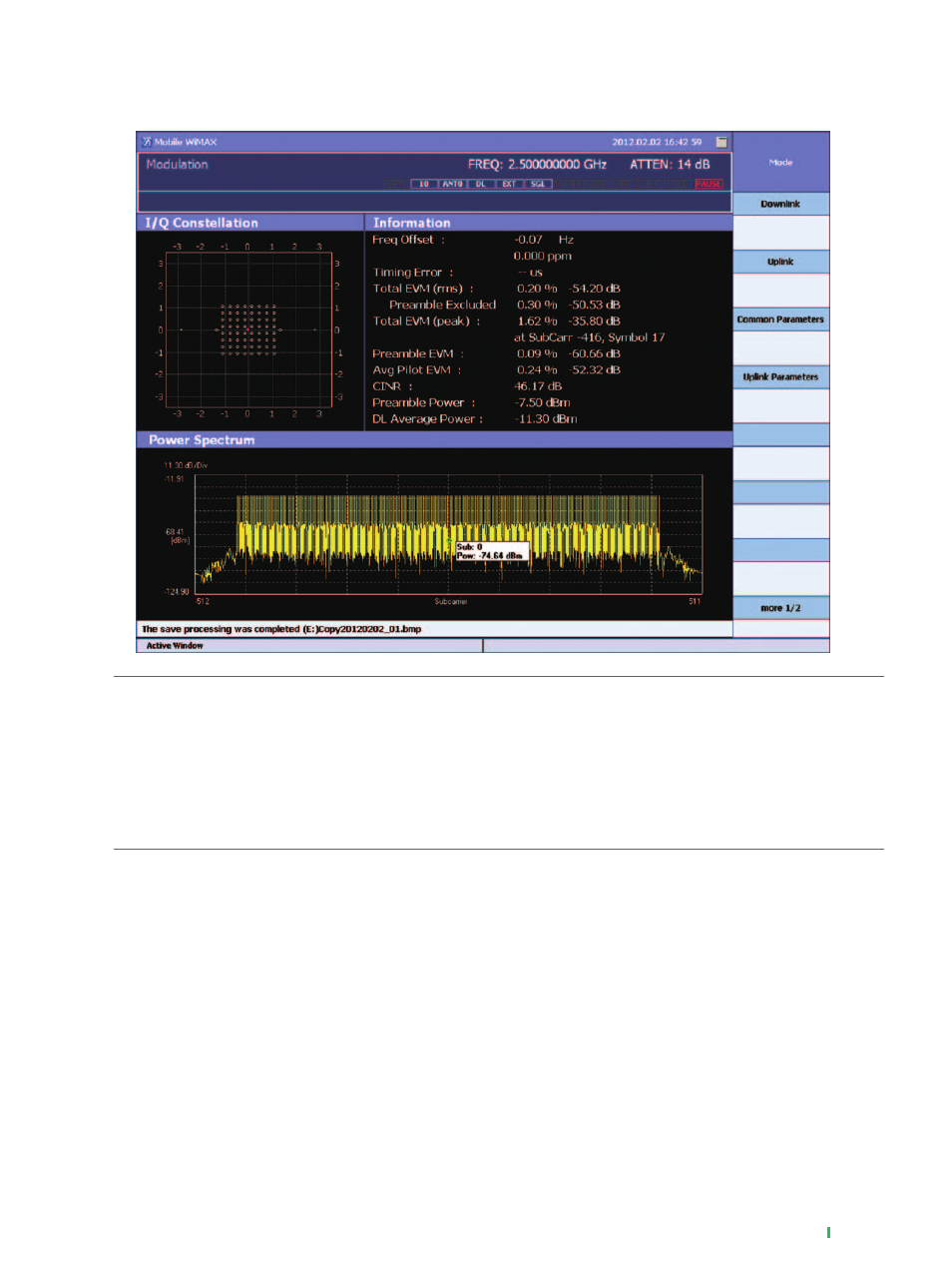

■ 802.16e Mobile WiMAX EVM Performance
(Frequency: 2.5 GHz)
(meas)
