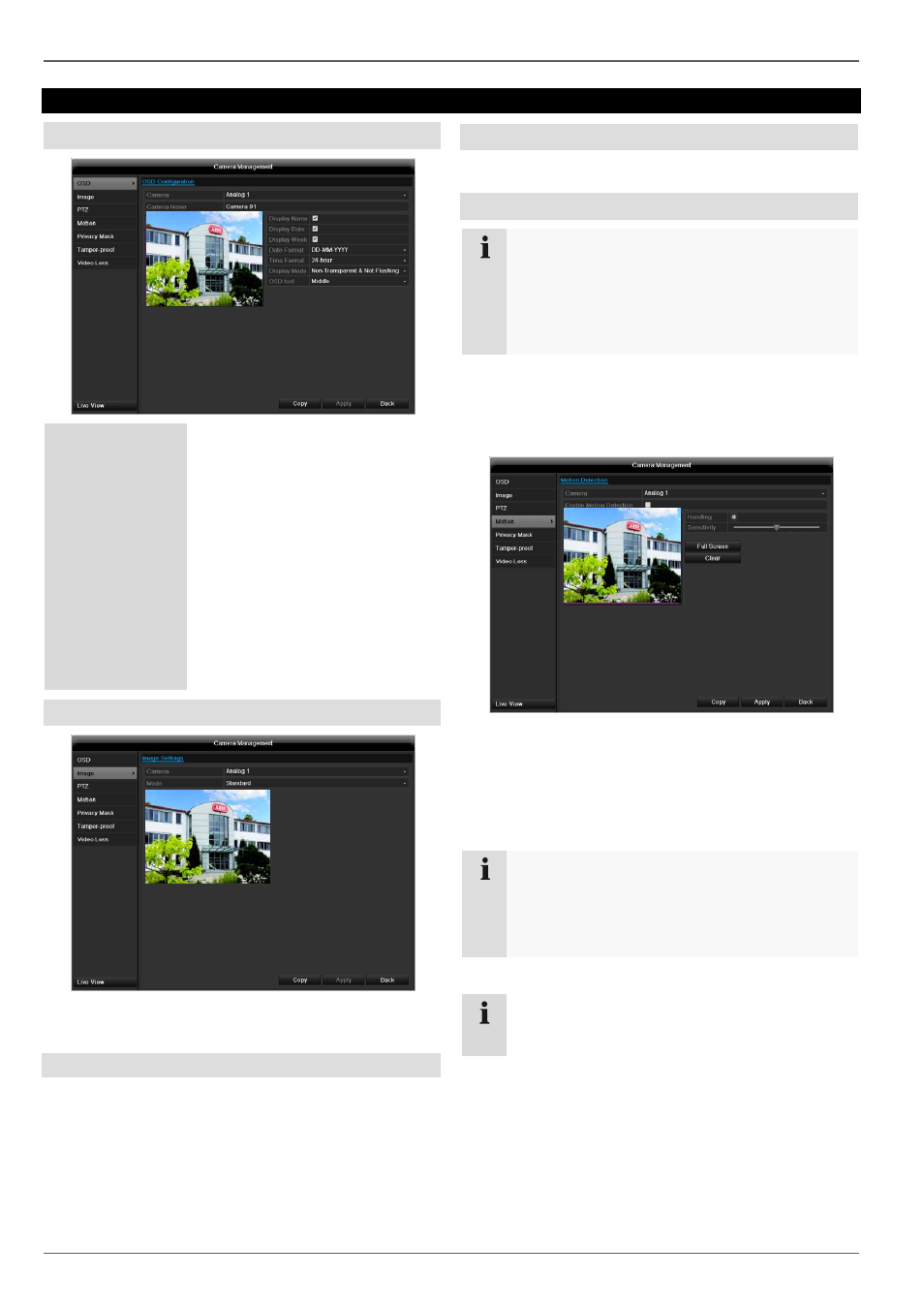

Camera
100
Camera
OSD
Camera Camera to be set
Camera Name Allocation of camera name
Display Name Activate / deactivate display of
camera name in the live view
Display Date Activate / deactivate display of
date in the live view
Display Week Activate / deactivate display of
week in the live view
Date Format Selection of date display type
Time Format
12 hours / 24 hours
Display Mode Settings relating to the presenta-
tion of camera name and date
OSD font Changing the font size
Select the camera channel to be processed at “Camera”.
Adapt the camera image to light conditions at “Mode” by
means of specified settings or with user-defined settings.
PTZ
Currently no functioning.
Setting up of zones
Note
When carrying out camera surveillance, you can
define zones that should not be monitored (private
zones).
You can also set up zones with special character-
istics (e.g. tamper monitoring or motion detection).
1. Activate the zone by ticking the corresponding box
”Enable motion detection”.
2. With the left mouse button held down, pull a frame
around the desired zone in the Miniature screen.
3. At sabotage monitoring and motion recognition, you
can set the sensitivity on the right of the miniature
image, and at motion recognition you can switch on
full image recognition.
4. Confirm the settings by clicking Apply and leave the
menu with Back.
Note
After applying the settings, the set private zone is
displayed as a black rectangle in the image.
Zones for tamper monitoring and motion detection
are not displayed.
Note
In order to record using the motion recognition, you
must set the time plan at Record (see p. 34).
