18.9.6. Internal and external activation

In this example, partition 1 is switched from internal activation (external perimeter protection) to external activation (completely activated).
The system should have external perimeter protection from 18:00 onwards and a complete activation from 20:00 onwards.

The change from internal to external activation cannot be made without an interruption of <
1 minute
(e.g. 19:59

Æ 20:00).

If detectors with the Part Set (P) property are set up for partition 1, you can Menu item in week planner: Use Auto Set to Part Set for
partition 1.

x

Create data record 2 as detailed in the Auto Set and Auto Unset sections.

Set Y, activation time 18:00, Part Set Y and Partitions 1 - - - .
Set Y, deactivation time 19:59 and Partitions 1 - - - .

x

Create data record 3 as detailed in the Auto Set and Auto Unset sections.

Set Y, activation time 20:00, Part Set N and partitions 1 - - - .
Unset time 07:20 on the following day (Tuesday) with data record 1.

Please make sure to use the data record 1 on the next day for deactivation.
There is a danger of losing track of the programming.

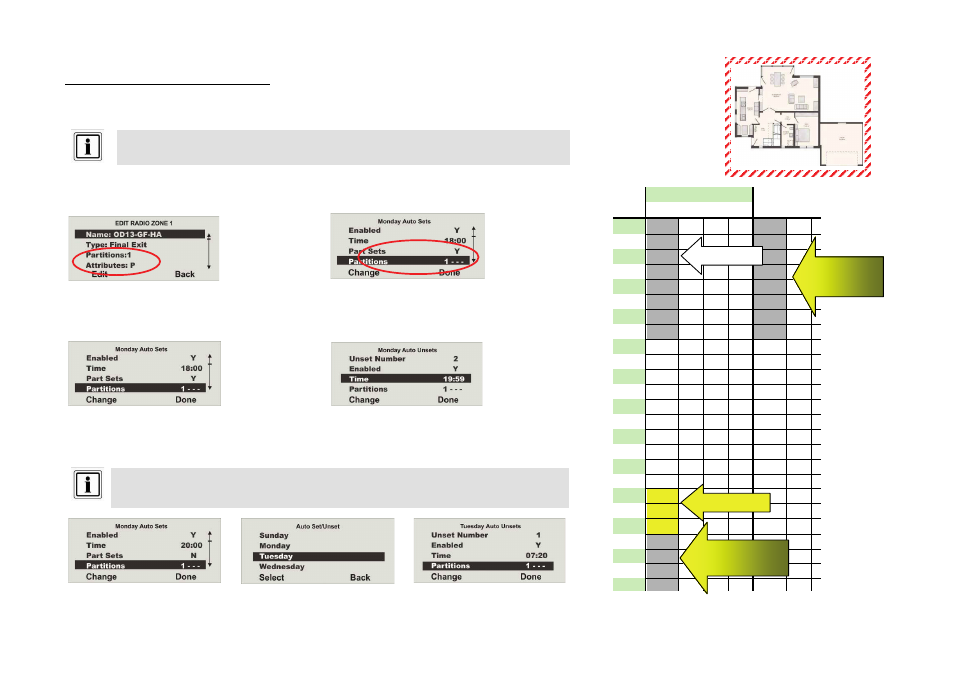

( Installer mode - Detector)

Detector in partition 1 with the property: P

(Week Planner)

Part Set: Y for partition 1

Set 18:00

Unset 19:59

Monday

Tuesday

Time

P1

P2

P3

P4

P1

P2

P

00:00

00:00

01:00

02:00

03:00

S

04:00

05:00

06:00

07:00

07:20

07:20

08:00

09:00

10:00

11:00

12:00

13:00

14:00

15:00

16:00

17:00

18:00

18:00

19:00

P

20:00

19:59

21:00

20:00

22:00

S

23:00

00:00

Data record 1

Data record 2

Monday

Data record 3

Activation

Tuesday

Data record 1

Deactivation

Activation Monday, 20:00

Select the next day (Tuesday)

Deactivation Tuesday, 07:20
