CAUTION Seal all threaded fittings
and conduit threads to produce a
weatherproof seal.
TO 3-WIRE SENSOR
3 WIRES/CABLE FROM CONSOLE
3-CONDUCTOR CABLE FROM SENSOR
S
E
N
S
O
R
N
IN(WHT)
Only remove the
jumper link between:
IN (wht) & GND (blk),
when a sensor channel is wired
Note: The PWR (red) terminal
is only used with 3-wire sensors
GND(BLK)
PWR(RED)
PWR(RED)
S
E
N
S
O
R
1
IN(WHT)
GND(BLK)
Insert the unstripped wires
fully into the self-sealing,
no-strip electrical connector.
Use slip-joint pliers and
seat the black portion to
make a good electrical connection
GND
(BLK)
PWR
(RED)
IN
(WHT)

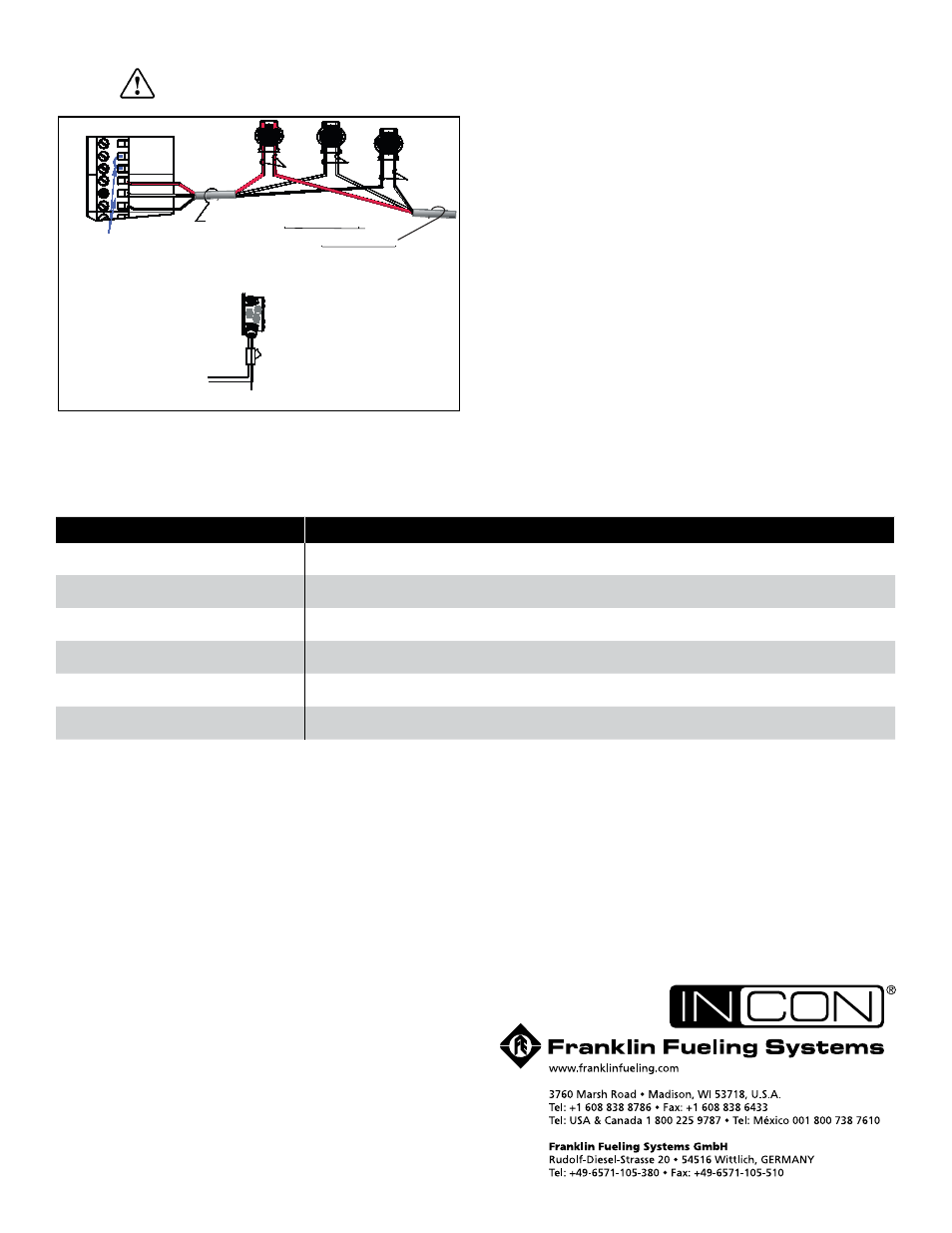

Figure 4: TSP-DIS / TSP-EIS Wire Splicing
and Console Wiring
Electrical Wiring
Reference the ATG Installation Manual and see Figure 4
for sensor wiring details.
©2008 FFS 000-1344 Rev D
Caution
Warning
Record Sensor Location
Sensor Channel # / Notes
