Overview

background image

1

Overview

The TSP-UHS is a Standard sensor that is used to detect

the loss of a liquid in the normally solution-filled sensor

reservoir connected to the interstitial areas of double-wall

dispenser sumps. The sensor is supplied with electrical

connectors, 25 feet of cable, and a cord-grip fitting (see

diagrams). The TSP-UHS uses magnetic-float / reed-switch

technology (the sensor must be suspended vertically so

the float can freely follow the level of a liquid).
When the float drops more than 3/4 of an inch, the

magnetically sensitive reed switch will open. An open

circuit is recognized as an alarm-condition at the

intrinsically safe (I.S) leak detection circuits of the FFS

(Franklin Fueling Systems) ATG console.

Testing the TSP-UHS

This device can be tested by lifting the sensor from the

sensor reservoir. This will cause an alarm at the ATG

console. Test the sensor for proper operation on a yearly

basis, or more frequently per local code.

Materials Required

Optional: TSP-DB1 Epoxy Seal kit for no-strip electrical

connectors – recommended for sites: within flood zones,

high groundwater tables, with poor drainage, or when

Junction Boxes are not used

1/2 or 3/4 inch NPT (National Pipe Thread, tapered),

Rigid Metal Conduit (RMC) or nonmetallic (PVC) conduit

if allowed by local code

EYS Seal fittings and Epoxy to fill the fitting after

operational testing is completed (as required).

Weatherproof Junction Box, gasket, and cover, plus

a 3/4 to 1/2 inch NPT reducing bushing if 1/2 inch

RMC is used. Refer to the ATG Installation Guide for

recommended electrical Junction Boxes

Wire: THHN, TFFN or THWN, 18 AWG, White & Black,

or Alpha Cable # 58411, 0.114 O.D., 1,500 feet (457

meters) max. length. If using nonmetallic (PVC) conduit,

Alpha Wire P/N 58411 (2.8 mm) 0.112” O.D. must be

used (INCON P / N 600-0062).

Slip joint pliers to seat the no-strip, self-sealing wire

connectors. Connectors are supplied with the sensor

• UL Classified Thread Sealant or pipe dope.

TSP-UHS Universal Hydrostatic Sensor

Installation Instructions

Magnetic Reed Float Switch

opens when float moves

down 0.75” (19 mm)

N.C.

Normal Liquid Level

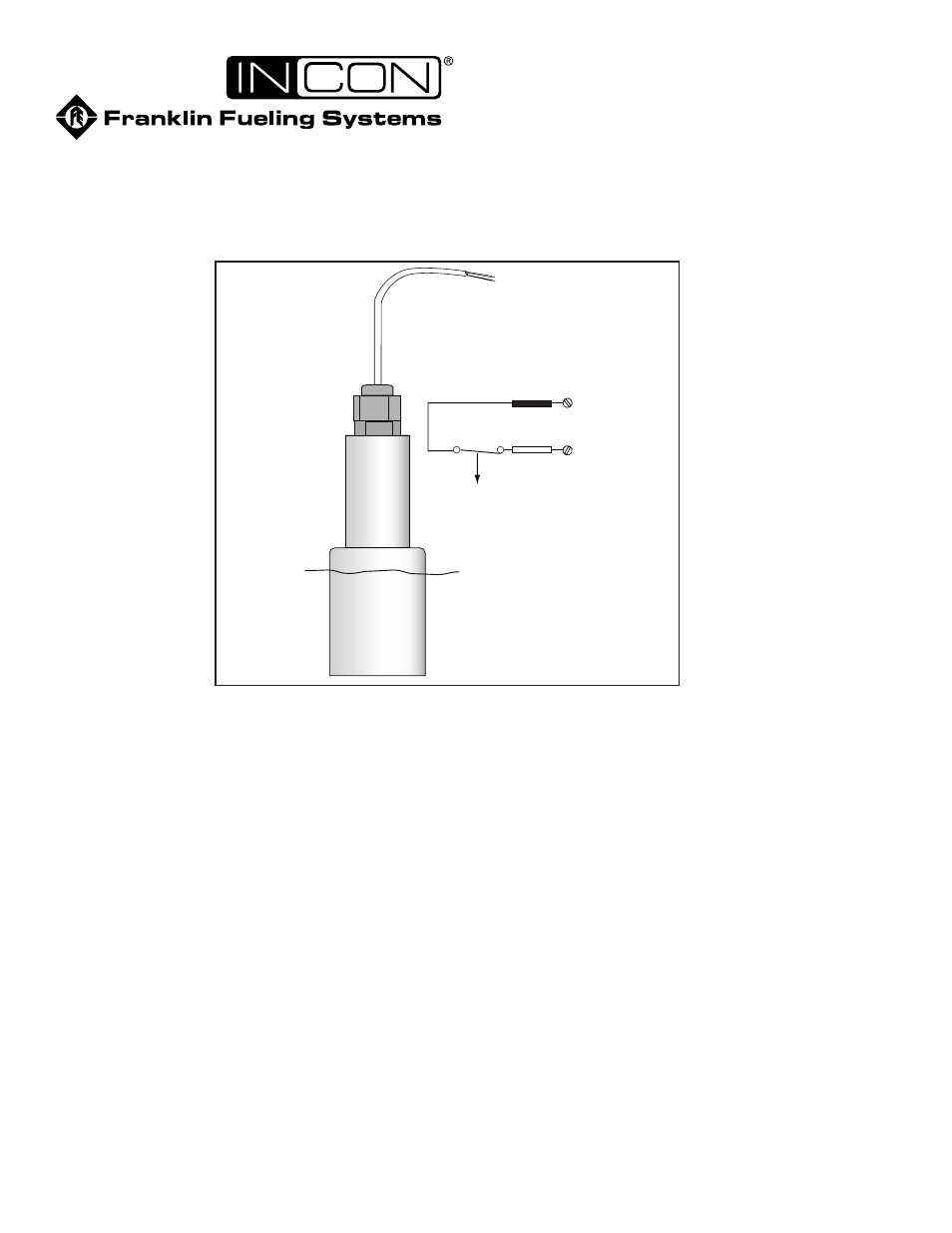

Figure 1: TSP-UHS Overview

Page 1 of 2
