Installation and Operation
VSC 900/900D • Installation and Operation 2-4
Rear Panel Connectors and Cabling

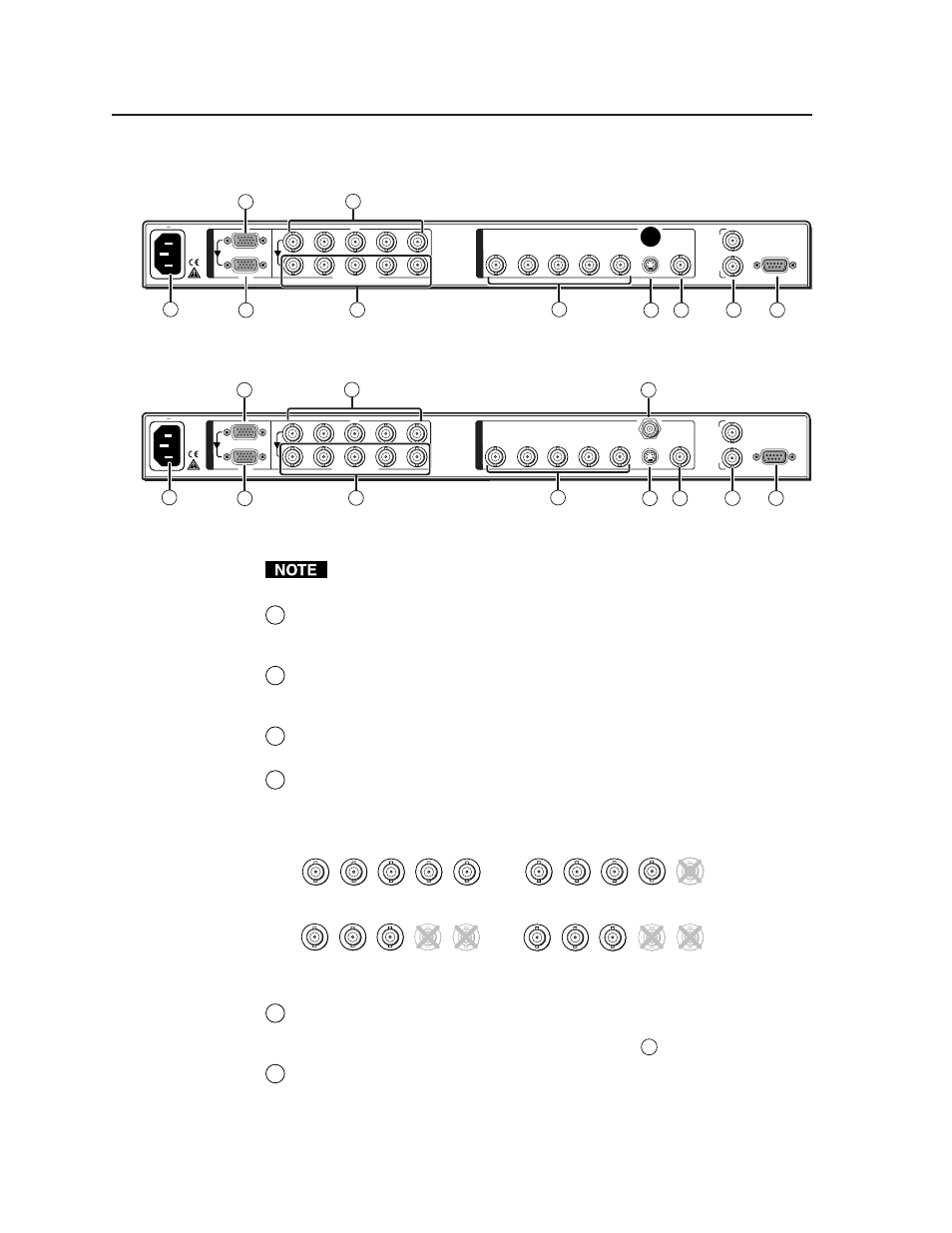

Figure 2-2 — VSC 900 rear panel connectors
Figure 2-3 — VSC 900D rear panel connectors
RGB or component video, composite video, S-video, and SDI video (VSC
900D only) are output simultaneously.
1 AC power connector — Plug a standard IEC power cord into this
connector to connect the scan converter to a 100 to 240VAC, 50 Hz or 60 Hz
power source.
2 RGB (computer) input VGA connector — Connect a computer video
source (RGBHV, RGBS, RGsB) via this female VGA 15-pin HD connector.
By default, pins 4, 10, and 11 are grounded for ID bit termination.
3 Buffered loop-through VGA connector — For local monitor output of the
input, connect a monitor to this female VGA 15-pin HD connector.
4 RGB and component video input BNC connectors — Connect a computer
video (RGBHV, RGBS, RGsB) or component video input via these five
female BNC connectors. Connect cables for the appropriate signal type, as
shown here.
RGBHV input RGBS input
R G B V H
/HV /R-Y /Y /B-Y
R G B V H
/HV /R-Y /Y /B-Y
RGsB input
R G B H
/HV
V
/R-Y /Y /B-Y
Component video input
(R-Y, Y, B-Y)
R G B V H
/HV /R-Y /Y /B-Y
5 Buffered loop-through BNC connectors — For local monitor output of the
input, connect a monitor to these five female BNC connectors. Connect
cables for the appropriate signal type as shown in
4 above.
6 Output BNC connectors — Connect coaxial cables from a display device to
these five female BNC connectors for RGBHV, RGBS, RGsB, or component
video output, as follows:
50/60 Hz
100-240V 0.3A
R
/R-Y
R
/R-Y
I
N
P
U
T
S
O
U
T
P
U
T
S
G
/Y
2
RGB/R-Y, Y, B-Y RGB
1
G
/Y
B
/B-Y
B
/B-Y
H
/HV
H
/HV
V
V
VIDEO S-VIDEO R/R-Y G/Y B/B-Y H/H-Y RS-232
/422
G
E
N
L
O
C
K
V
IN
OUT
SDI
1
4 2 7b
3 7a 9 10 8 5 6
50/60 Hz
100-240V 0.3A
R
/R-Y
R
/R-Y
I
N
P
U
T
S
O
U
T
P
U
T
S
G
/Y
2
RGB/R-Y, Y, B-Y RGB
1
G
/Y
B
/B-Y
B
/B-Y
H
/HV
H
/HV
V
V
VIDEO S-VIDEO R/R-Y G/Y B/B-Y H/H-Y RS-232
/422
G
E
N
L
O
C
K
V
IN
OUT
1
4 2
3 7a 9 10 8 5 6
