Extron TP Transmitters • Installation and Operation

Installation and Operation, cont’d

If you are using a mud ring

, follow the directions, if any,

that came with the mud ring to attach the clips that fasten
it to the wall or furniture (figure 2-8).

Detail A

0.75" #6-32

Screw

Backing Clip

Sheet Rock

Mounting Bracket

Detail B

1.25" #6-32

Screw

Backing Clip can

be in either orientation.

See Detail A or Detail B.

Extron

TP T 468

MONITOR

H. SHIFT

AUDIO

MIN/MAX

MONITOR

TP T

468

INPUT

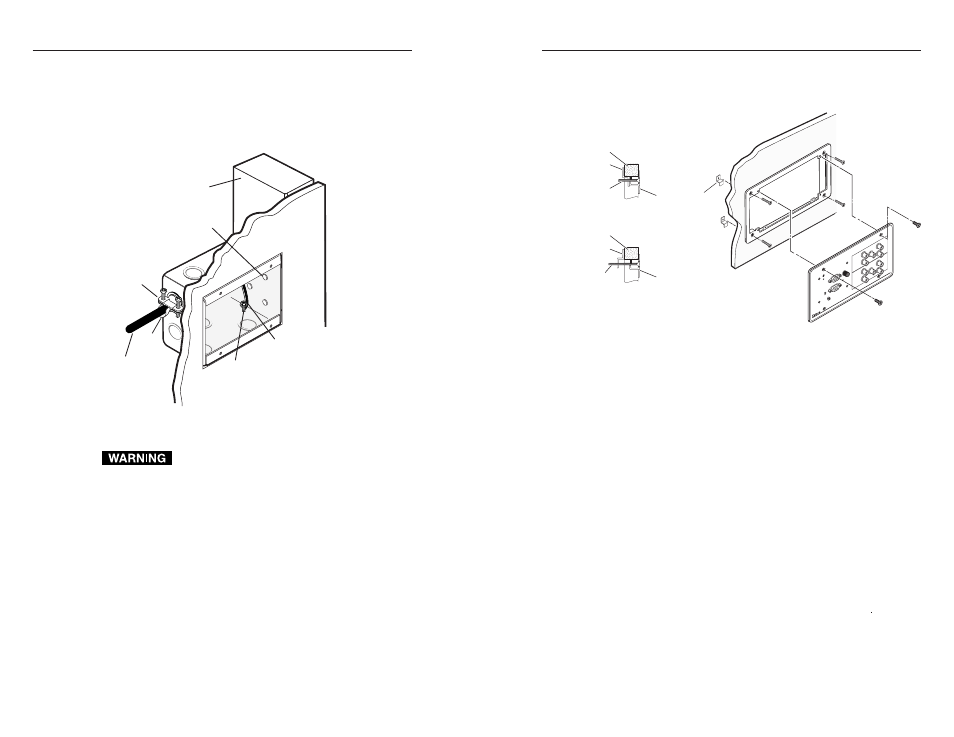

Figure 2-8 — Attaching a mud ring to a wall

If you are using a wall box

, insert the wall box into the

opening, and attach it to the wall stud/furniture with nails
or screws, leaving the front edge flush with the outer wall
or furniture surface (figure 2-9).

If attaching the wall box to wood, use four #8 or #10
screws or 10-penny nails. A minimum of 1/2 inch (1.3 cm)
of screw threads must penetrate the wood.

If attaching the wall box to metal studs or furniture, use
four #8 or #10 self-tapping sheet metal screws or machine
bolts with matching nuts.

2-15

2-14

If you are using a wall box

, feed cables through the wall

box punch-out holes, and secure them with cable clamps
to provide strain relief.

Exposed cable shields (braids or foil) are potential sources
of short circuits. Trim back and/or insulate shields with
heat shrink (figure 2-7).

Installation
Cable

Cable
Clamp

Wall Stud

Foil
Shield

Screws or Nails

Screw

Braided
Shield

Figure 2-7 — Grounding outer braided and foil
shields

To prevent short circuits, cut back the outer foil
shield to the point where the cable exits the cable
clamp. Both braided and foil shields should be
connected to an equipment ground at the other end
of the cable.
