PVS 405D • Connector Wiring
51
Input 5 Connector Wiring
Input 5 is a dedicated‑audio only input for an auxiliary, stereo, line‑level analog audio
signal from an output source such as an iPod device or an MP3 player. Connect the cable
from the source to this 5‑pole captive screw connector. The connector can be wired as
balanced or unbalanced as shown below.
NOTE: Input 5 is audio only. No video signals are supported on this input.
Unbalanced Stereo Input
Balanced Audio Input
Tip
Ring
Tip
Ring
LR
Sleeves
Do not tin the wires!
Tip
Sleeve
Sleeve
Tip
LR
Unbalanced Mono Input
Balanced Mono Input
(high impedance)
Tip
Ring
LR
Sleeve
Tip
Sleeve
LR
Audio Input
INPUT 5
Aux Audio
Input 5

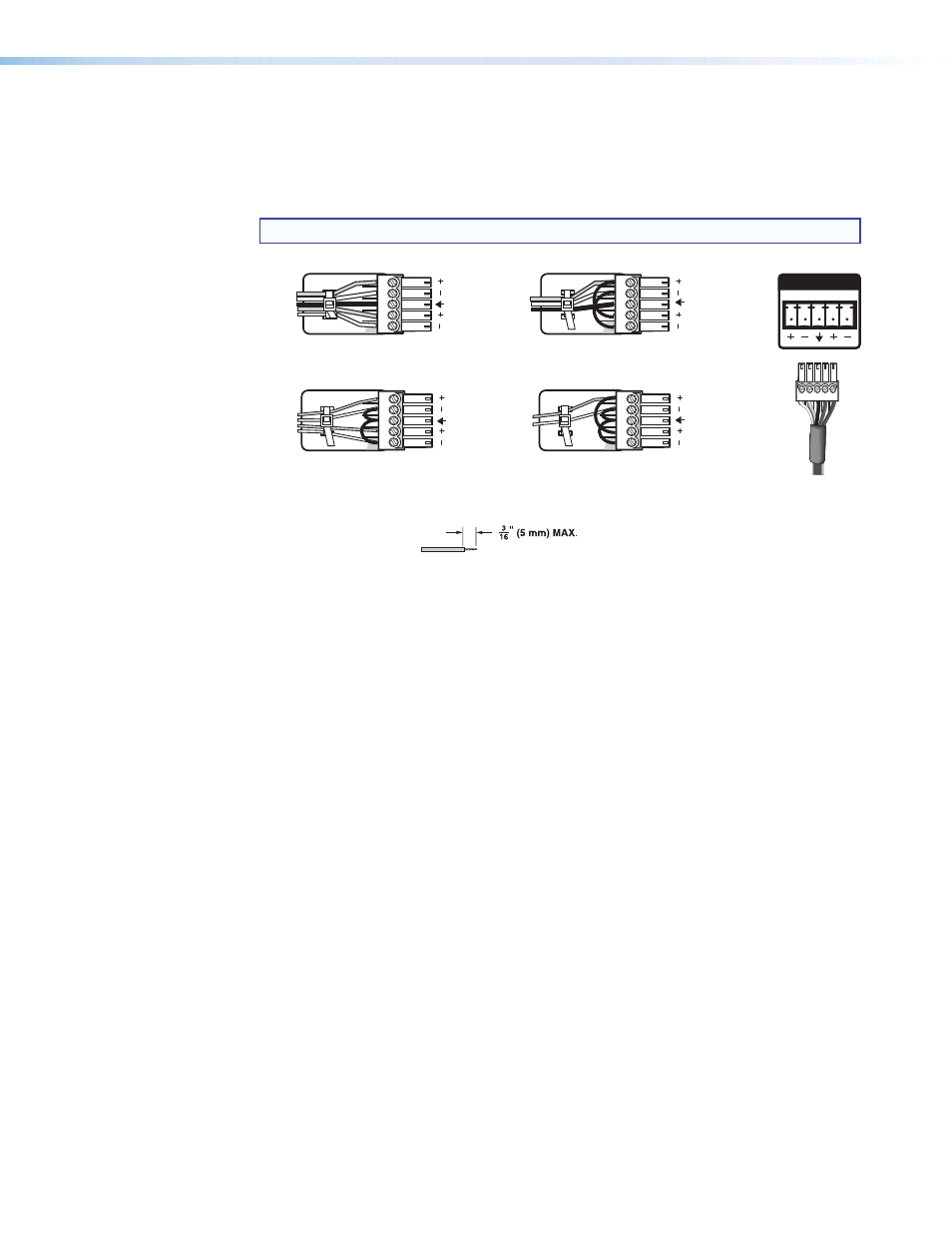

Figure 39.
Input 5 Audio Wiring
