Using the PVS 405D Product Configuration Software — Pages
There are two main pages for configuring the PVS 405D: the Configuration page and the
Hardware page.
Configuration Pages
NOTE: From the Hardware page, click on the Configuration tab .
The Configuration pages options are:
• Input Configuration • EDID Minder • Audio Configuration

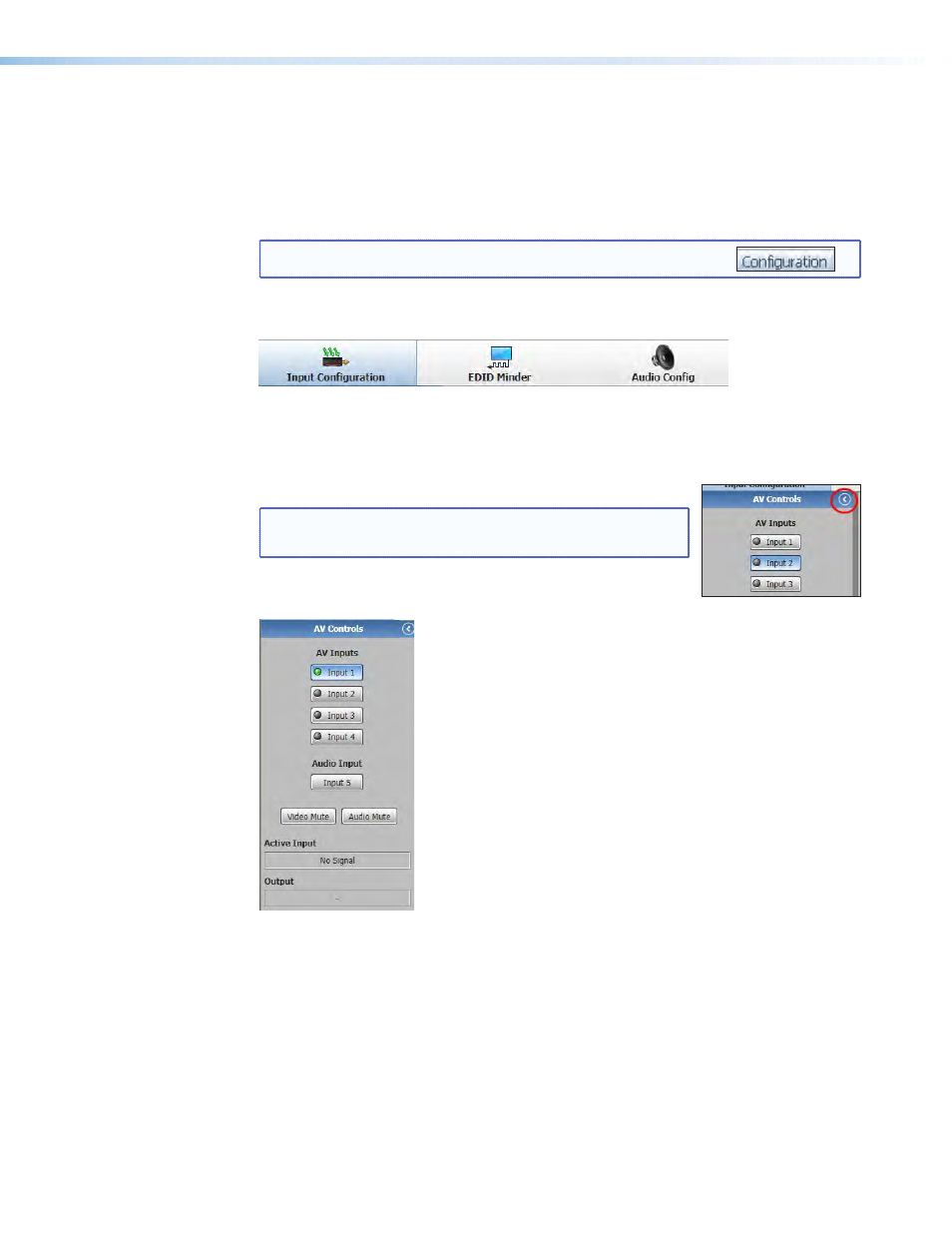

Figure 16. Global Navigation Bar for the Configuration Page
The browser screen is set out as two sections. These are AV Controls on the left, and the
options page on the right.
AV Controls Panel
NOTE: This panel section can be hidden or revealed by
clicking on the section handle (see image at right).
The AV Controls panel is used to control AV settings such as
input selection or muting video and audio signals.
Figure 17. AV Controls Panel
AV input buttons (inputs 1-5)
Click on these to select an input as desired. As a new one is selected, the summary within
the panel changes to reflect the new input and output status. Input 5 is audio only and
carries no video signal.
