Assigning EDIDs
To assign EDID to selected inputs:
1.
From the inputs screen (table of inputs) on the right, select the desired input or inputs
(see figure below).
2.
From the table, select an available EDID (represented by a blue, green, or yellow
output display icon).
3.
Click the Assign button to assign EDID to the selected input or inputs.

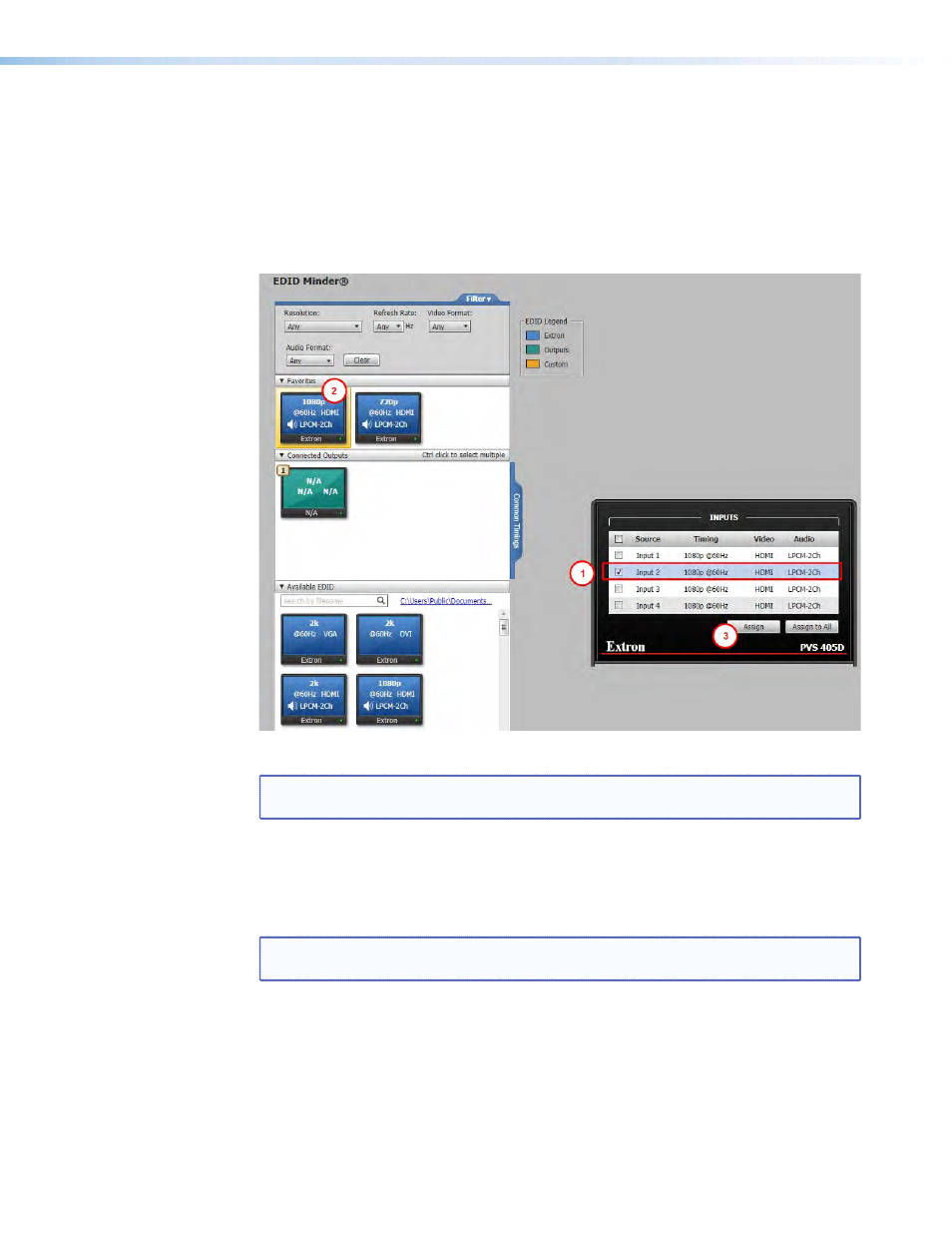

Figure 20.
Assigning EDIDs
NOTE: If you do not select any inputs but still click
Assign, an error message is
displayed.
To assign EDID to all inputs:
1.
From the EDID table, select an available EDID (represented by a blue, green, or yellow
output display icon).
2.
Click the Assign All button.
NOTE: If you select
Assign All, all input boxes, checked or unchecked, will be
ignored and the EDID will be assigned to all inputs.
